PUMP
• Motor Speed: PWM 1500~2500 RPM
• Rated Voltage: 12 V - 5 V
• Rated Current: 0.35A - 0.3 A
• Power Input: 4.2W - 1.44 W
• Connector: 2510 – 4 Pin - ARGB – 3Pin
CPU Display
• Rated Voltage: 5 V
• Rated Current: 0.1 A
• Power Input: 0.5 W
• Display Type: 2.4 inch ” Segment LCD
• Display Resolution: 240 x 320 (RGB)
Display Support
• Interface: USB 2.0 (9PIN)
• System Compatibility: Windows 10 - 11

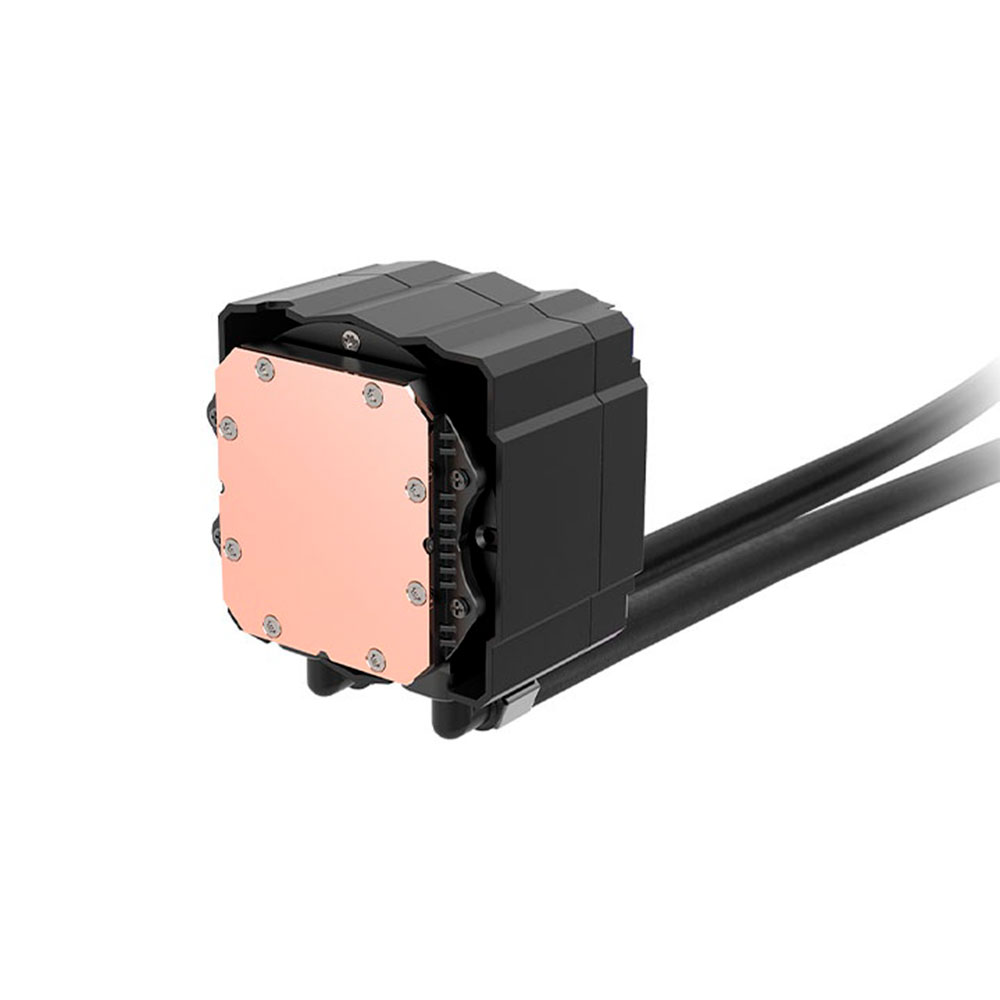

WATER BLOCK
• Material: Copper

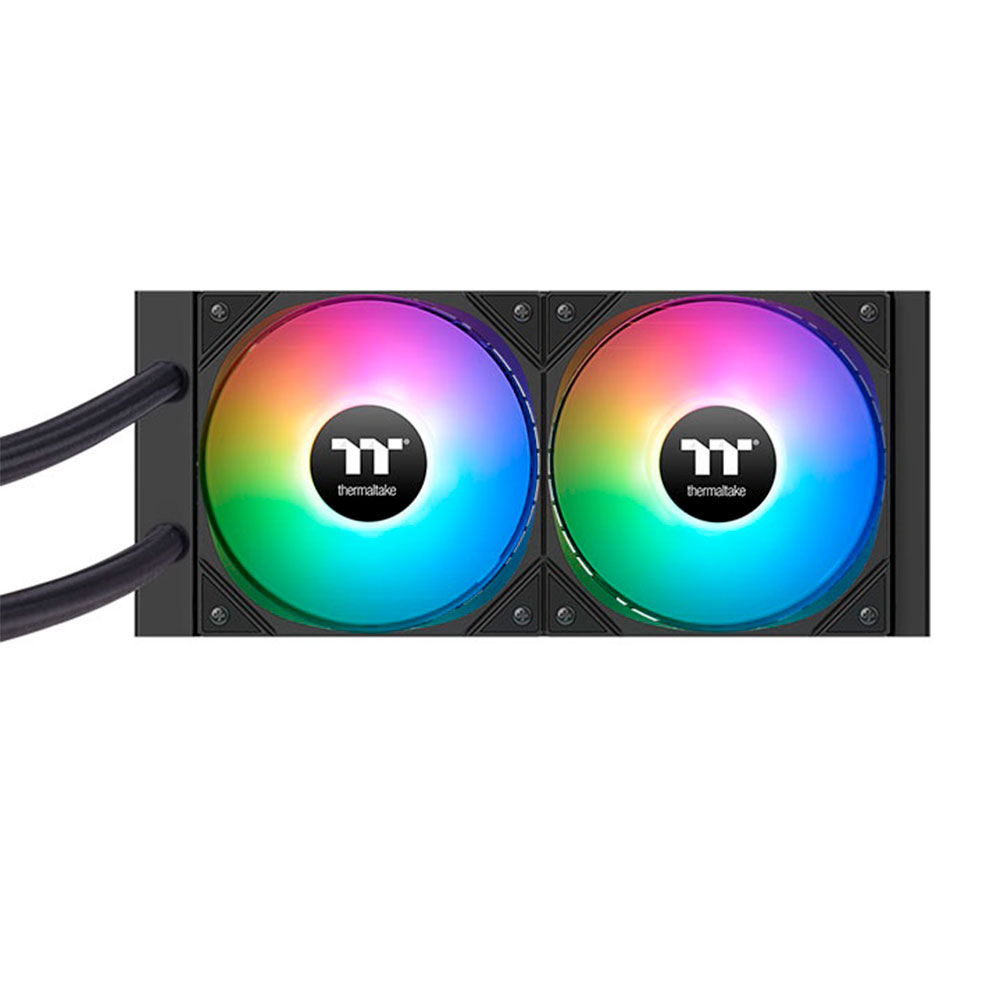

Fan
• Dimension: 120 x 120 x 25 mm
• Fan Speed: PWM 600~2500 R.P.M
• Rated Voltage: 12 V - 5 V
• Rated Current: 0.38 A - 0.28 A (one fan)
• Power Input: 4.56 W - 1.4 W (one fan)
• Air Flow: 79.3 CFM (one fan)
• Static Pressure: 3.45 mm-H2O (one fan)
• Noise Level: 38.35 dB-A (one fan)
• Connector: 2510 – 4 Pin
Tube
• Length: 350mm
• Material: Rubber
Radiator
• Dimension: 277 x 120 x 27 mm
• Material: Aluminum
