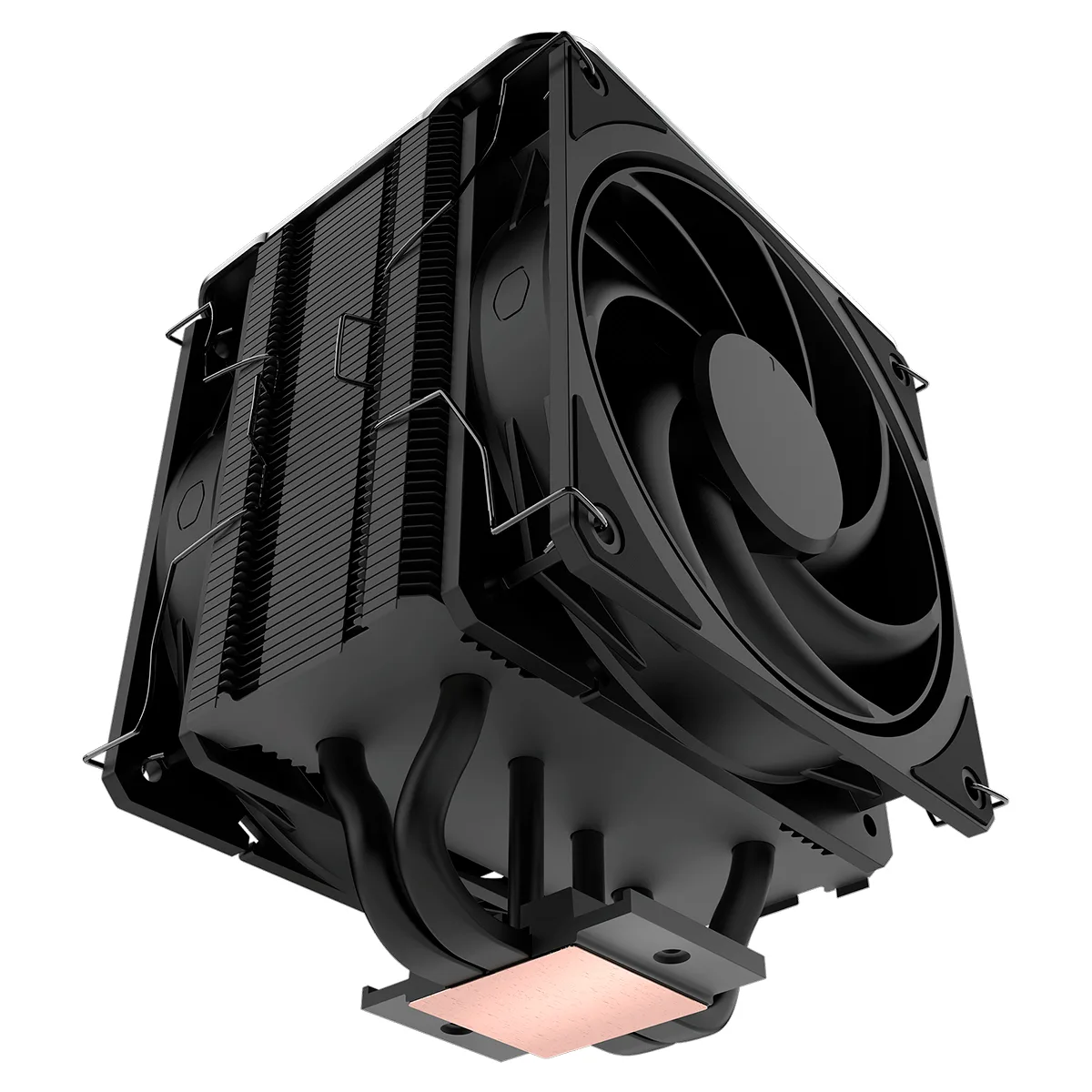

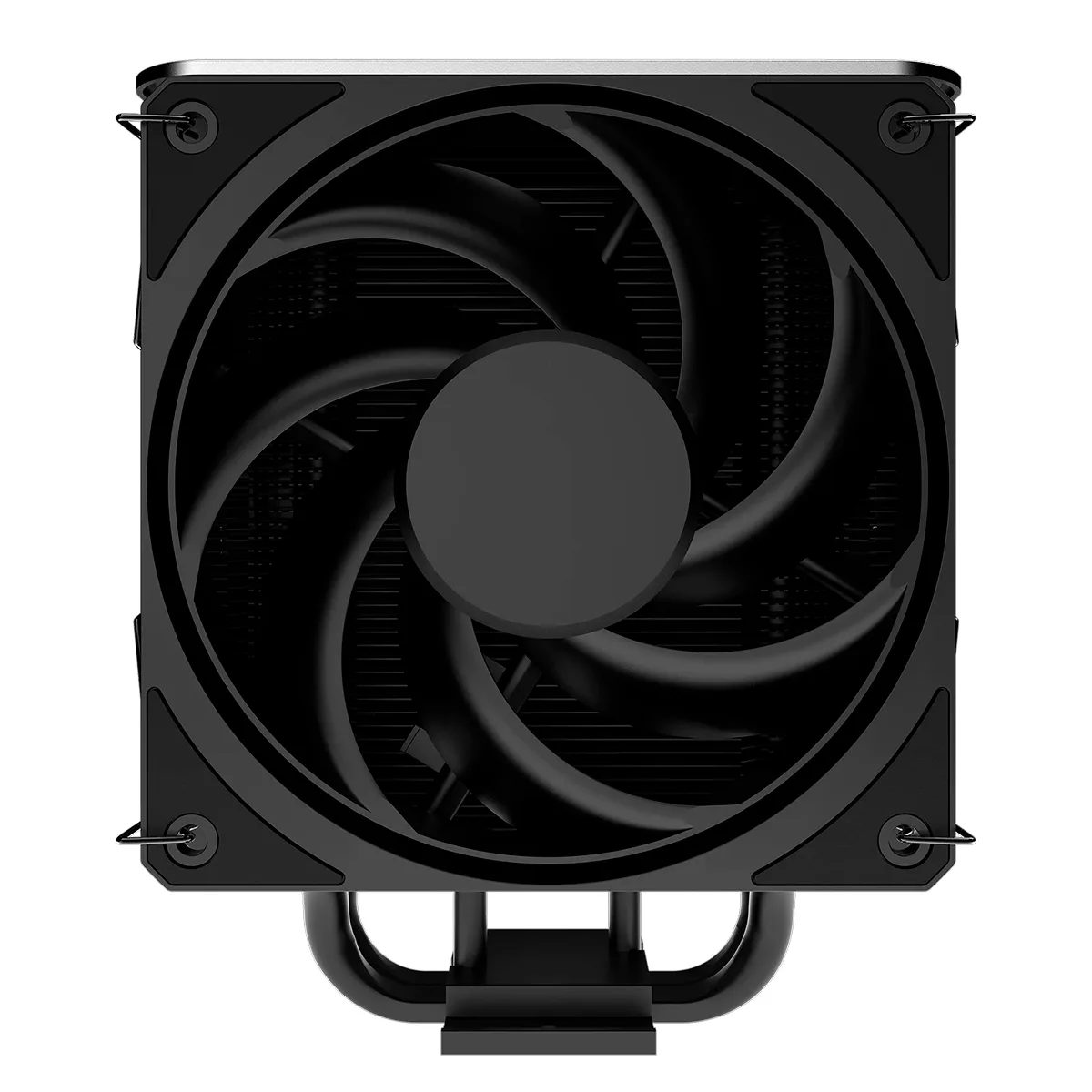

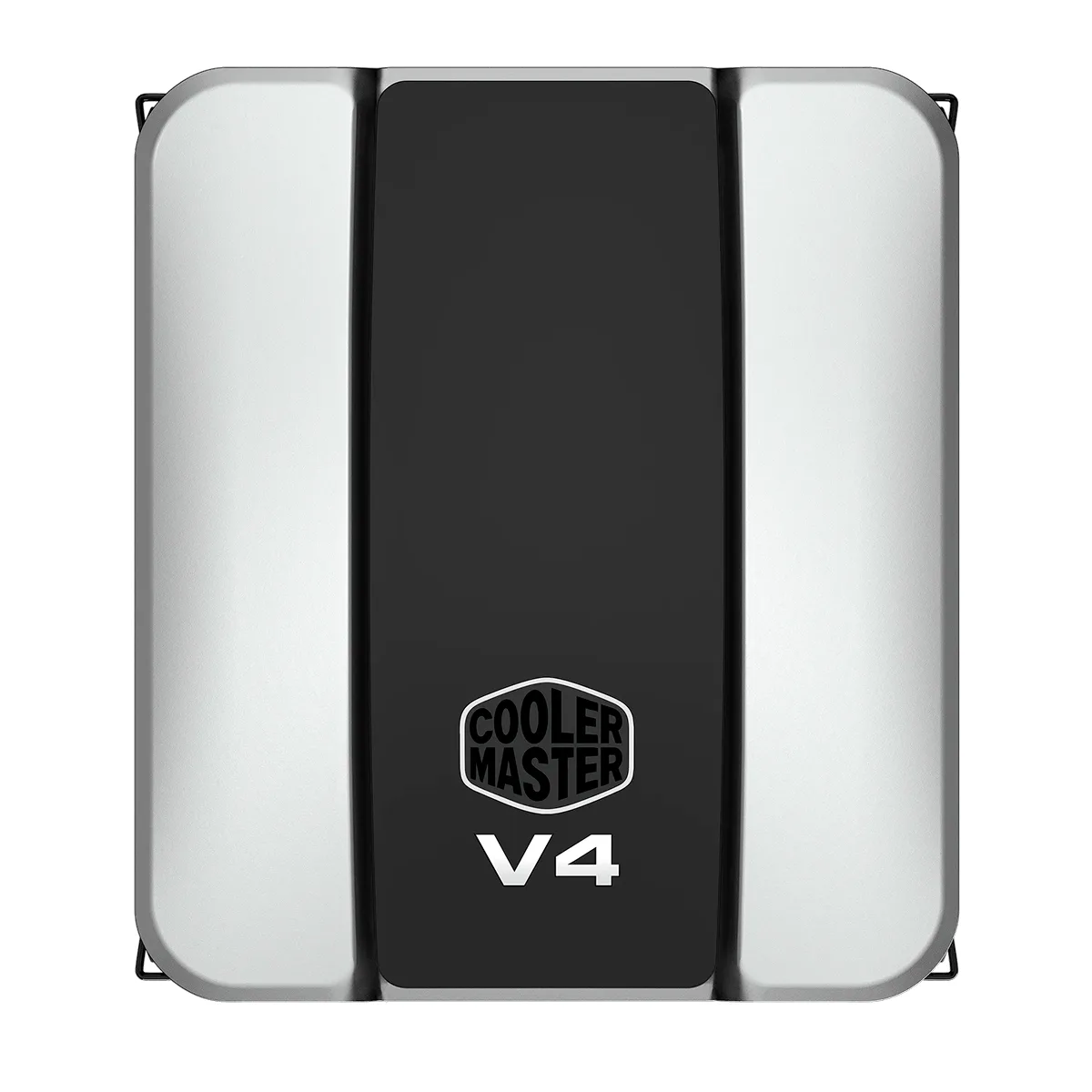

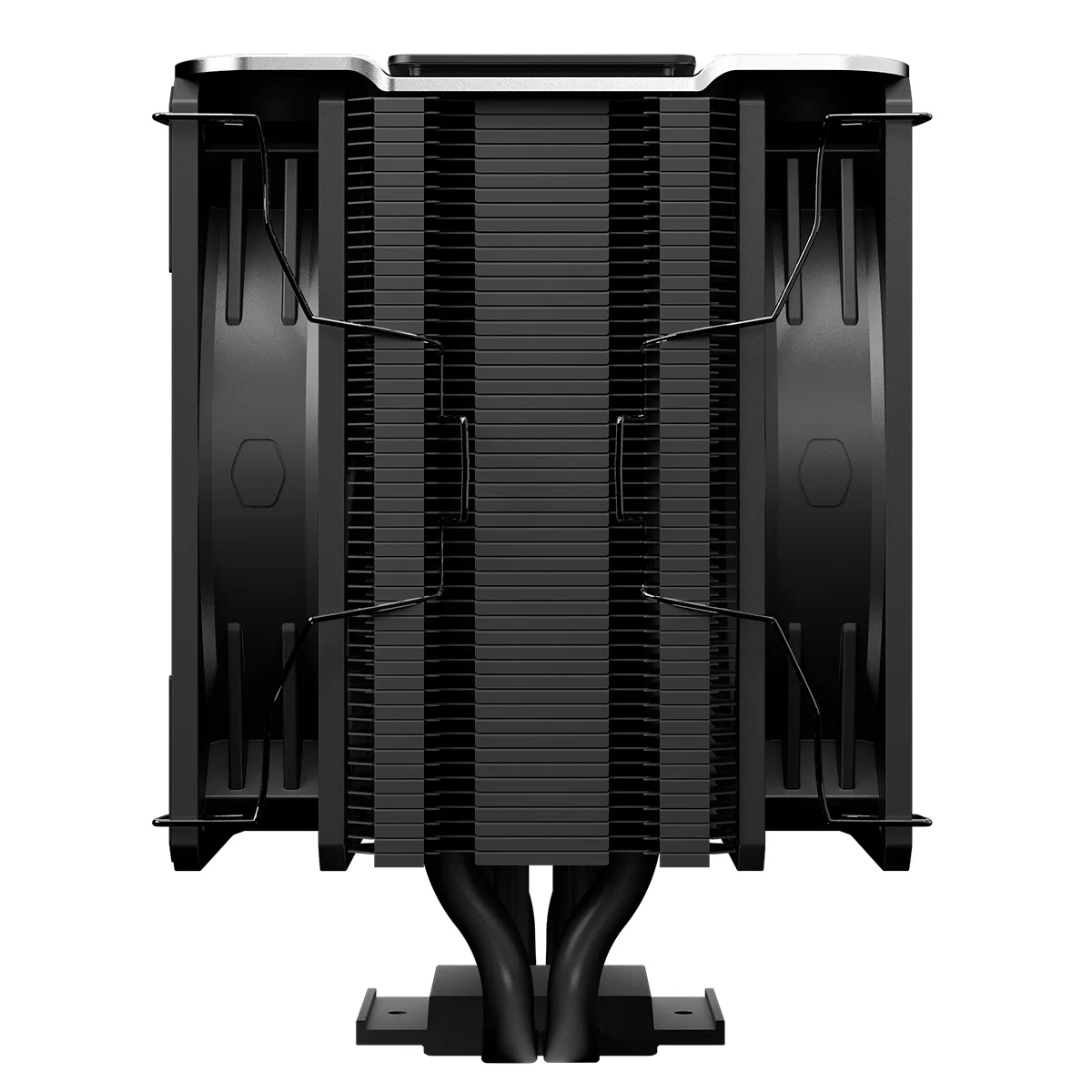

• Product Name V4 Alpha 3DHP Black
• Product Number MAZ-T2HP-217PK-R1
• Exterior Color Black
• Fan Size 120
• Heatpipes 2
• Cooler Type Air Cooler
• Dimension 133 x 114 x 161 mm | 5.2 x 4.5 x 6.3 inch
• Heat Sink Material 2 x 3DHP - Aluminum Fins
• Fan Item Front - Rear
• Fan Dimensions (L x W x H) 120 x 120 x 25mm
• Fan LED Profiles Non-LED
• Fan Quantity Front: 1 Rear: 1
• Fan Speed Front: 0-2050 RPM ± 10-por-ciento Rear: 0-1850 RPM ± 10-por-ciento
• Fan Airflow Front: 107.2 m³-h (63.1 CFM) Rear: 85.8 m³-h (50.5 CFM)
• Fan Pressure Front: 2.69 mmH2O Rear: 1.77 mmH2O
• Fan MTTF >200000 Hours
• Fan Pressure Front: 22.6 dBA Rear: 20 dBA
• Fan Bearing Type Loop Dynamic Bearing
• Fan Power Connector 4-Pin (PWM)
• Fan Rated Voltage 12 VDC
• Fan Rated Current Front: 0.12 A Rear: 0.08 A
• Fan Safety Current 0.35A
• Fan Power Consumption Front: 1.44 W Rear: 0.96 W
