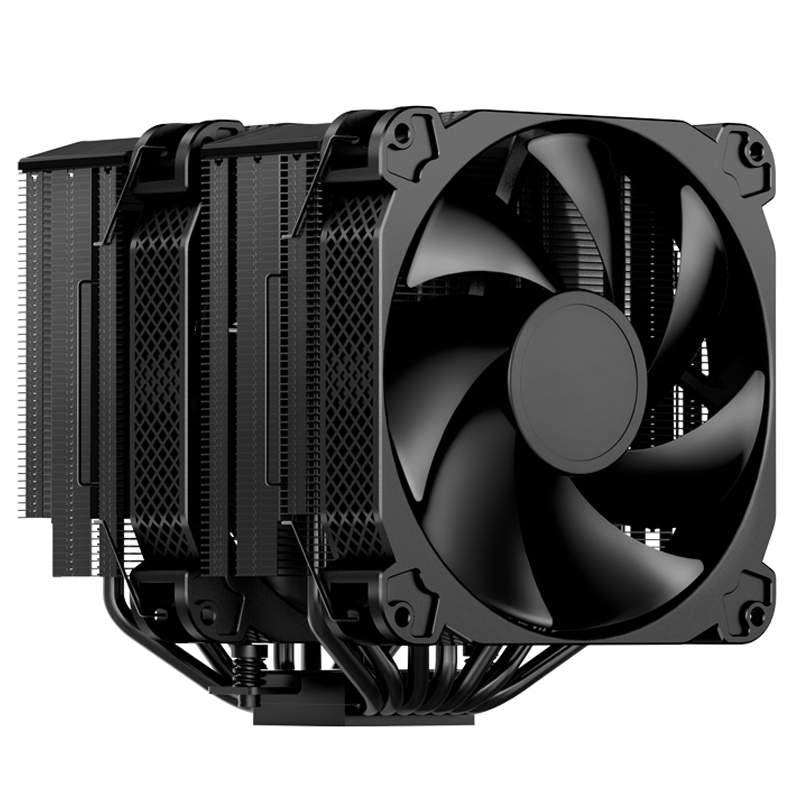

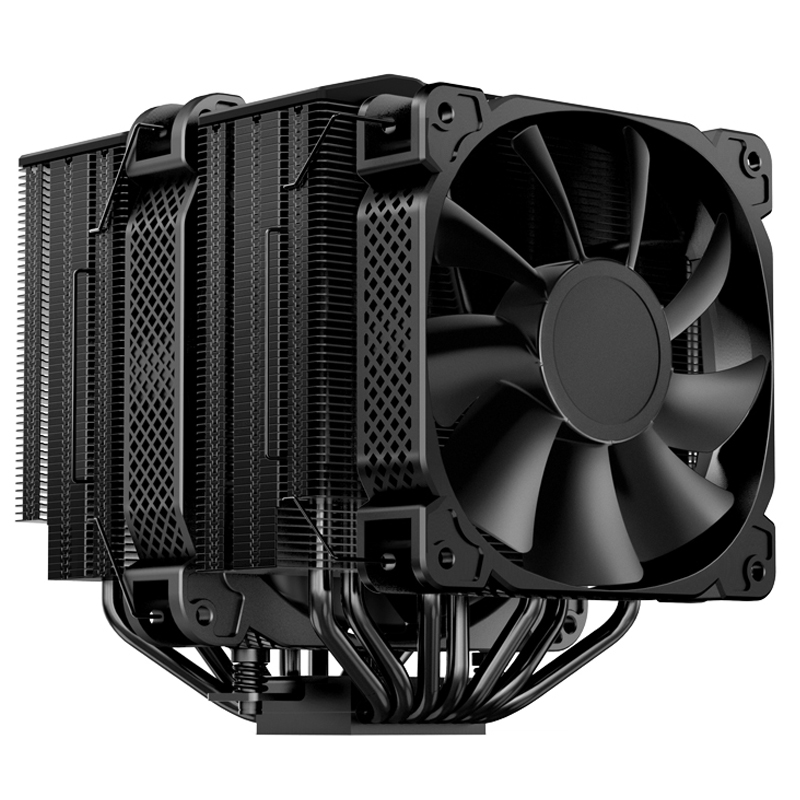

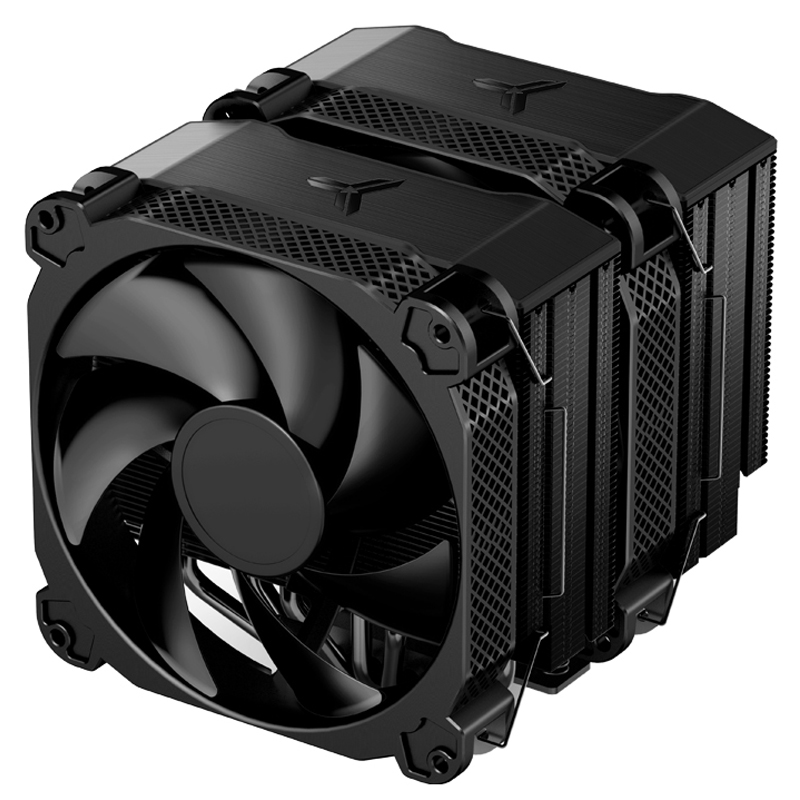

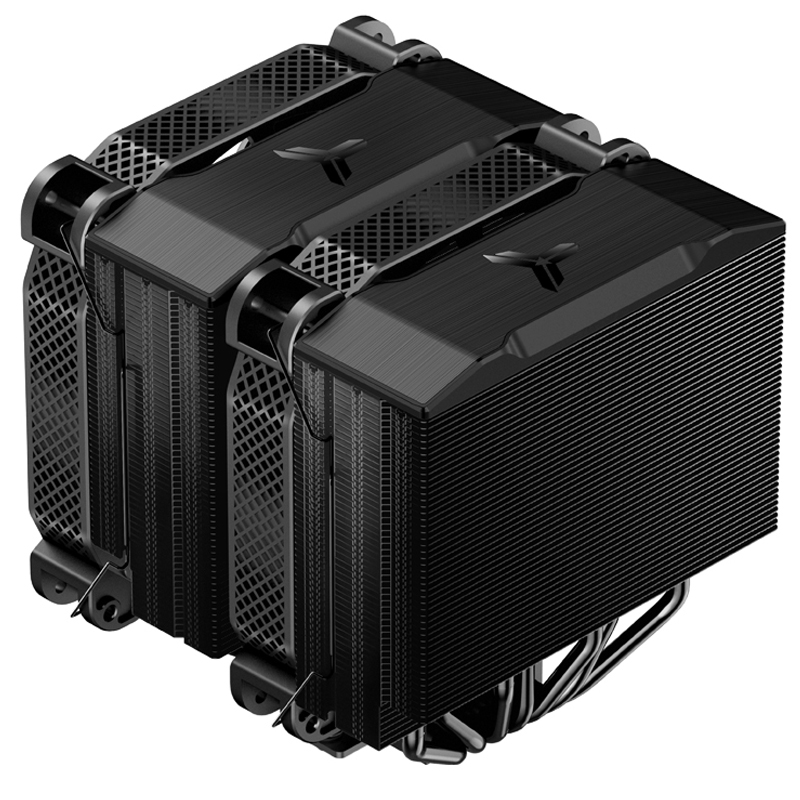

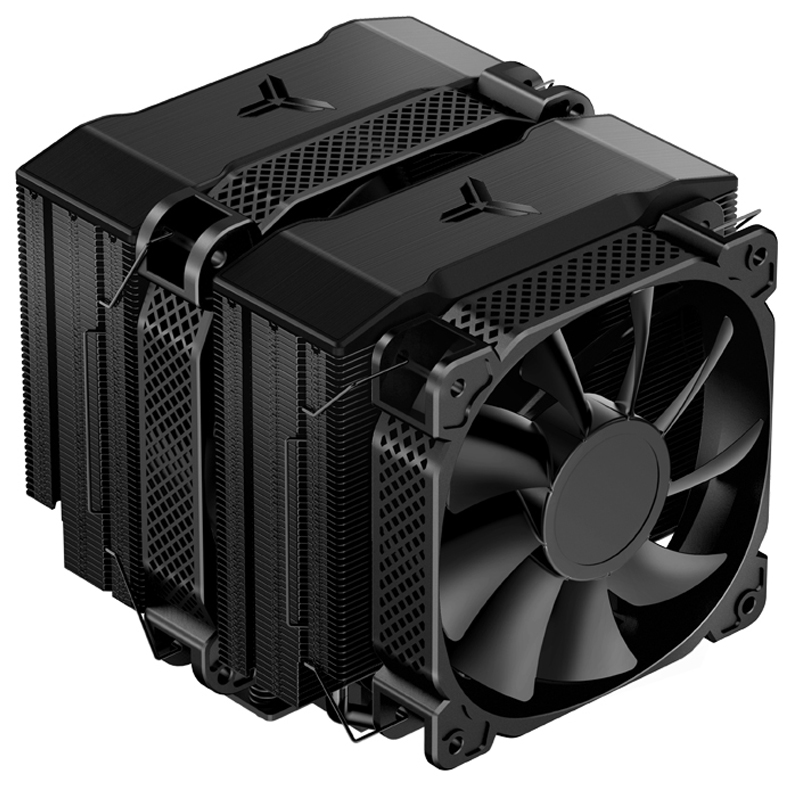

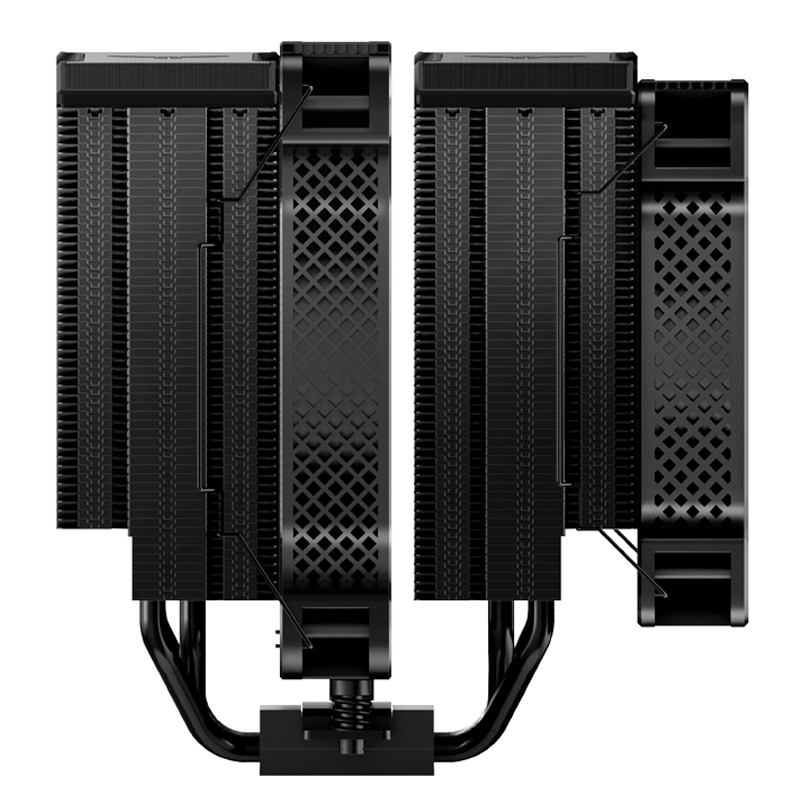

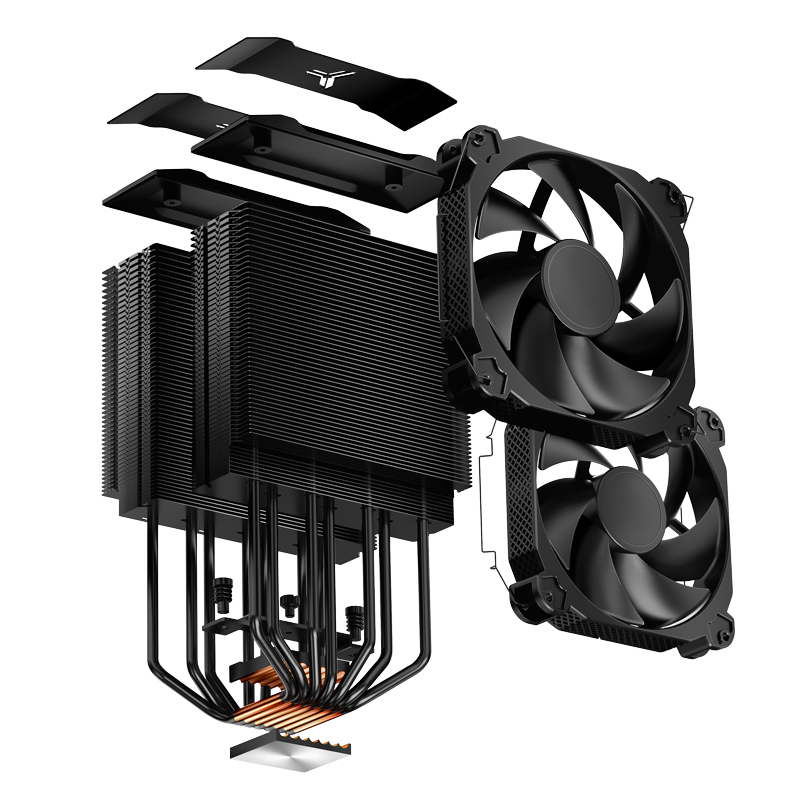

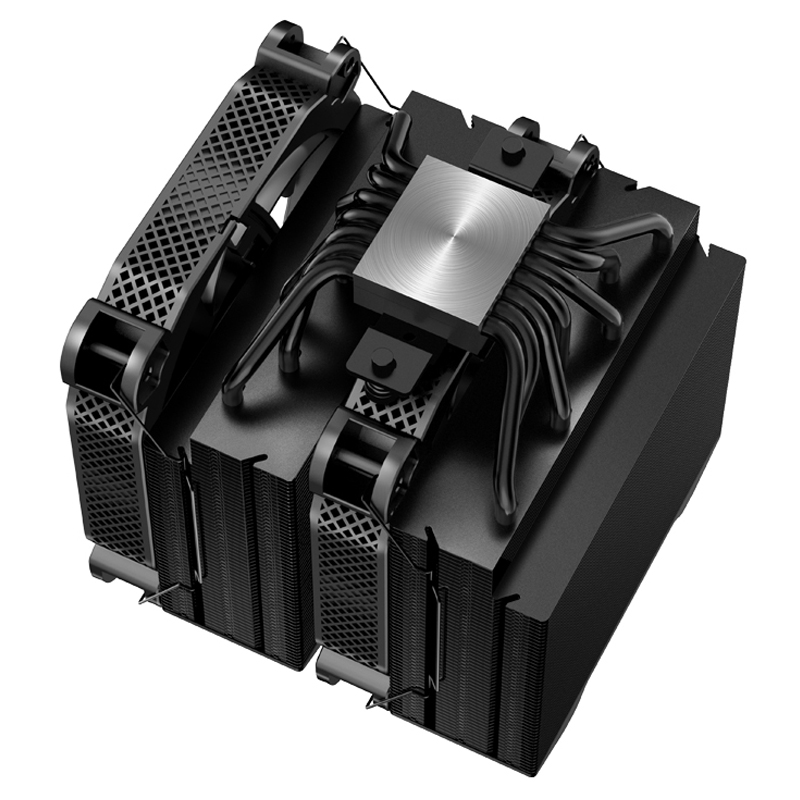

Model: HX7280
Overall Dimensions:140 * 155 *160 mm

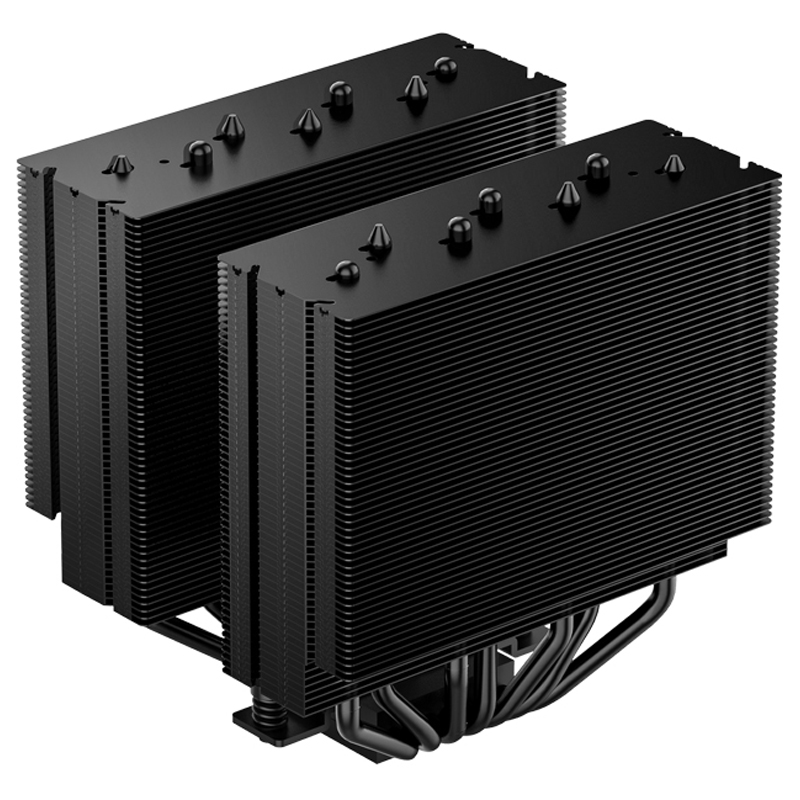

Heatsink set size: 140 * 127 * 160mm

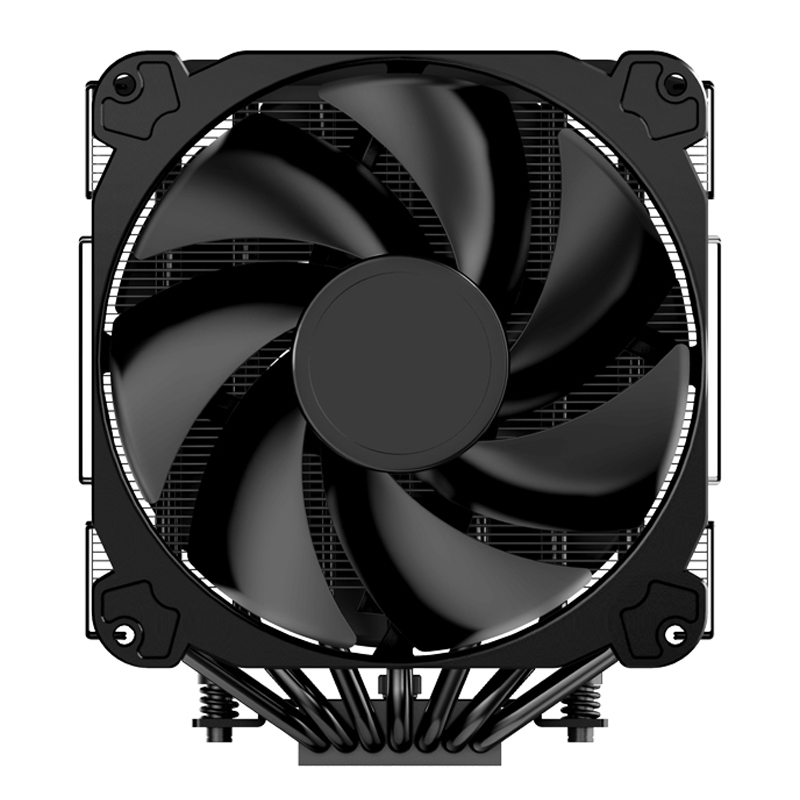

Fan size:140 * 140 * 25mm *2
Fan size:120 * 120 * 25mm *1
Heatpipe size:Ø6mmx7pcs
TDP:280W
Fan Speed(12cm):700-1800RPM±10-por-ciento
Fan Speed(L.N.A 12cm):1100RPM±10-por-ciento
Air Flow(12cm):32.47-83.04 CFM
Air Flow(L.N.A 12cm):45.56 CFM(MAX)
Air Pressure(12cm):0.47-2.68 mmH20
Air Pressure(L.N.A 12cm):0.86 mmH20(MAX)
Noise Level(12cm):=37.6dB(A)
Noise Level(L.N.A 12cm):=28dB(A)
Connector-Pin Type:4 PIN PWM
Bearing: FDB Bearing
Voltage range(14cm):12V DC
Max. input current(14cm):0.21A
Max. input power(14cm):2.52W
Voltage range(12cm):12V DC
Max. input current(12cm):0.20A
Max. input power(12cm):2.4W
Net. Weight:1280g
Note:L.N.A= Low Noise Adaptor
