*********************** COMPATIBLE UNICAMENTE CON PROCESADORES DE 10GEN INTEL ***********************
CHIPSET INTEL H470
CPU SUPPORT Supports 10th Gen Intel Core and Pentium Gold-Celeron processors for LGA 1200 Socket
MEMORY 2x DDR4 Maximum Memory Capacity 64GB
Memory Support 2933- 2666- 2400- 2133 MHz
Supports 1R 2133- 2666- 2933 MHz for Intel® Core™ i9- Core™ i7 CPU
Supports 1R 2133- 2666 MHz for Intel® Core™ i5- Core™ i3- Pentium® Gold and Celeron® CPU
Supports Dual-Channel mode
Supports non-ECC un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
ONBOARD GRAPHICS 1x HDMI™
Support HDMI™ 1.4 maximum resolution of 4K 30Hz*
1x VGA
Support VGA maximum resolution of 2048x1536 50Hz 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 - SATA mode supports 2280-2260-2242 devices
4x SATA 6G

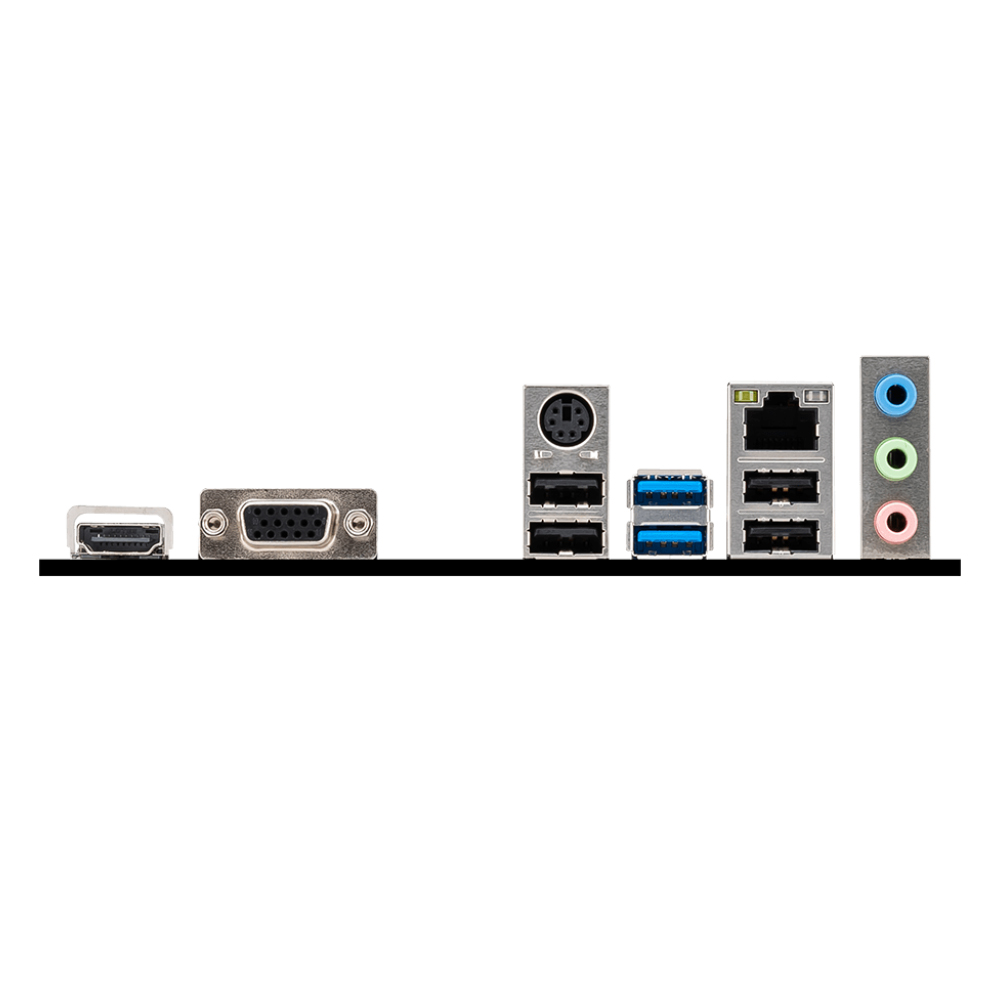

USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Realtek® 8111H Gigabit LAN
AUDIO Realtek® ALC897 Codec
7.1-Channel High Definition Audio
INTERNAL I-O 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
