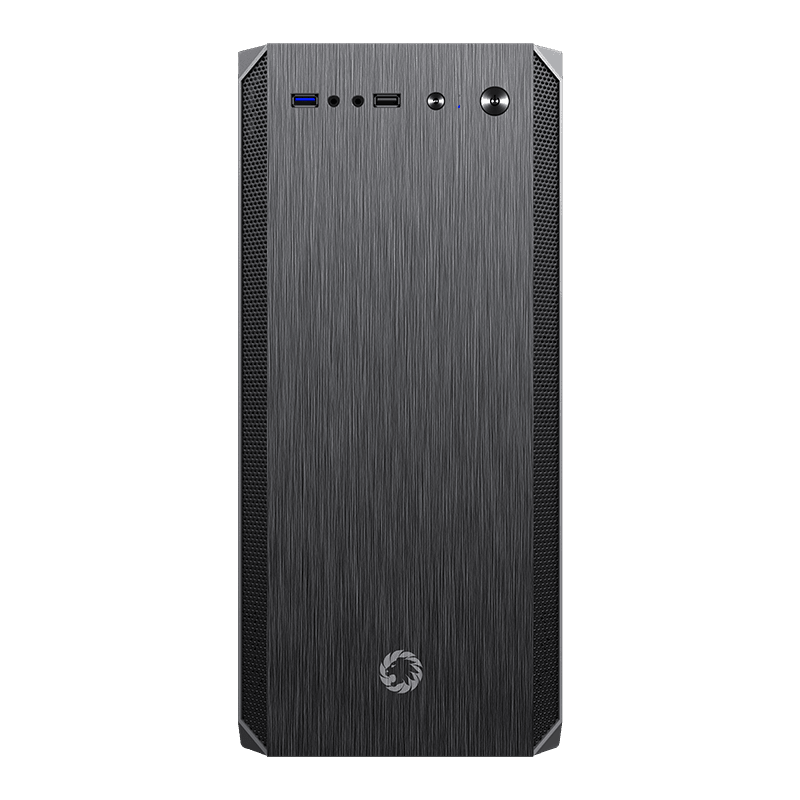

Model No.: SILENT HILL(MFG : H606)
Type: Mid-Tower Case

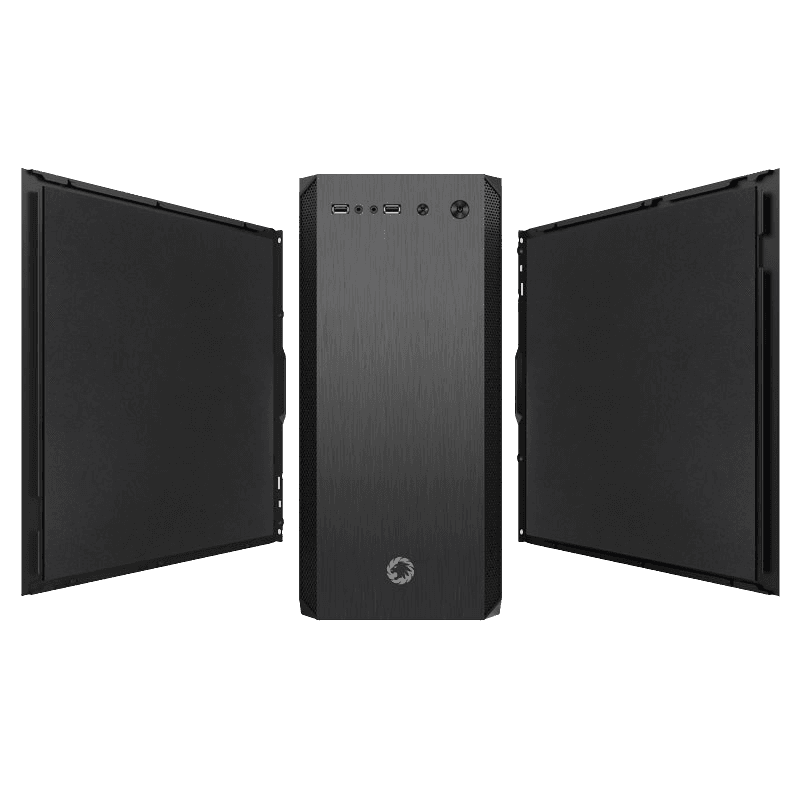

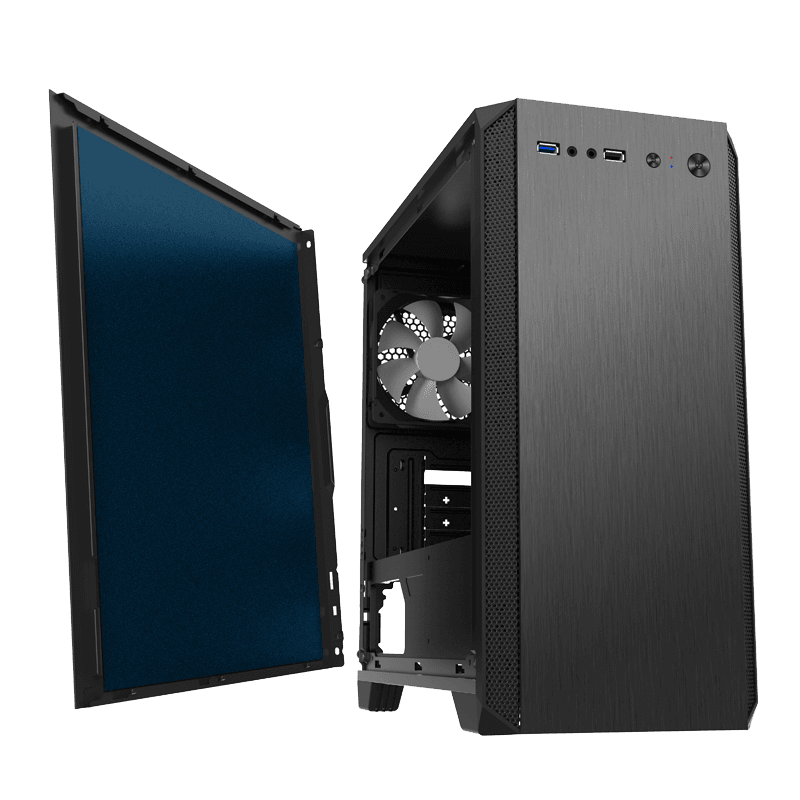

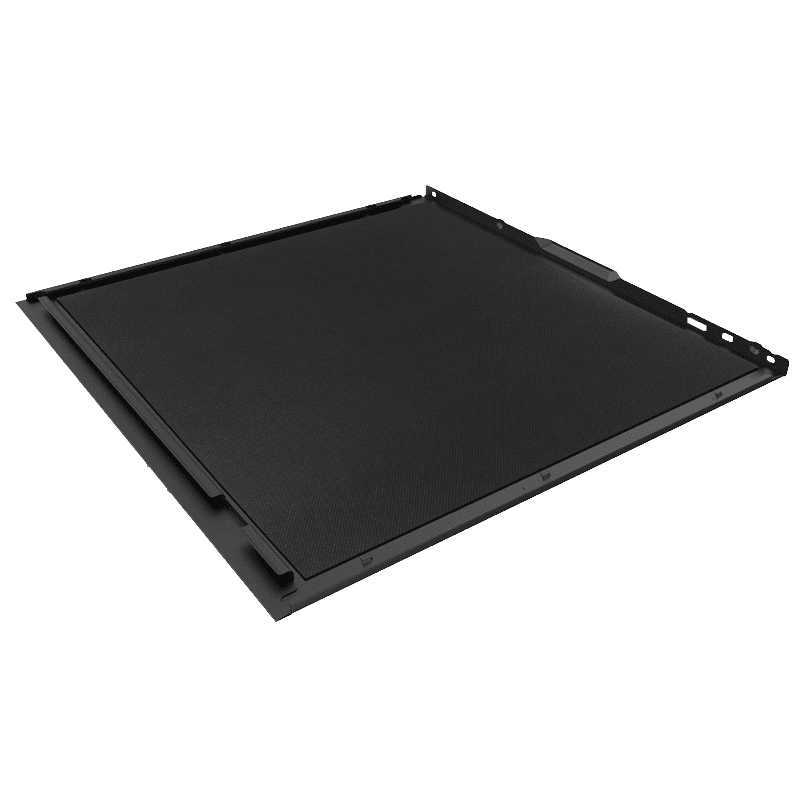

Side Panel: Silent side panel (included)
with sound dampening material

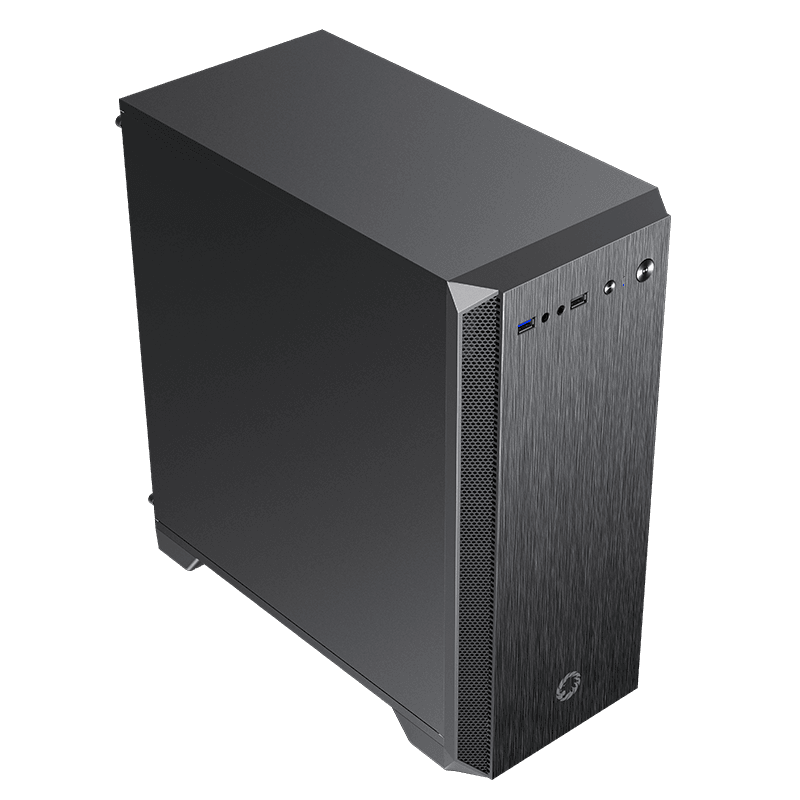

Front Panel: ABS materialaluminum-brush surface
Top Panel: flat
Chassis: 0.6mm mixed Black painting interior
Front USB Ports: USB2.0x 1 (included)
USB3.0x 1 (included)
Front Audio Jackets HD_Audio
PSU ATX-Bottom
Tool Free Kits: Yes (provide 2pcs of 3.5-- HDD tray)
VGA fit part (Optional): VGA Card Fix part
Reserved Fan Ports: Front: 2x 120mm black fan- 15 leds fan-32 leds fan (optional)
Side: Null

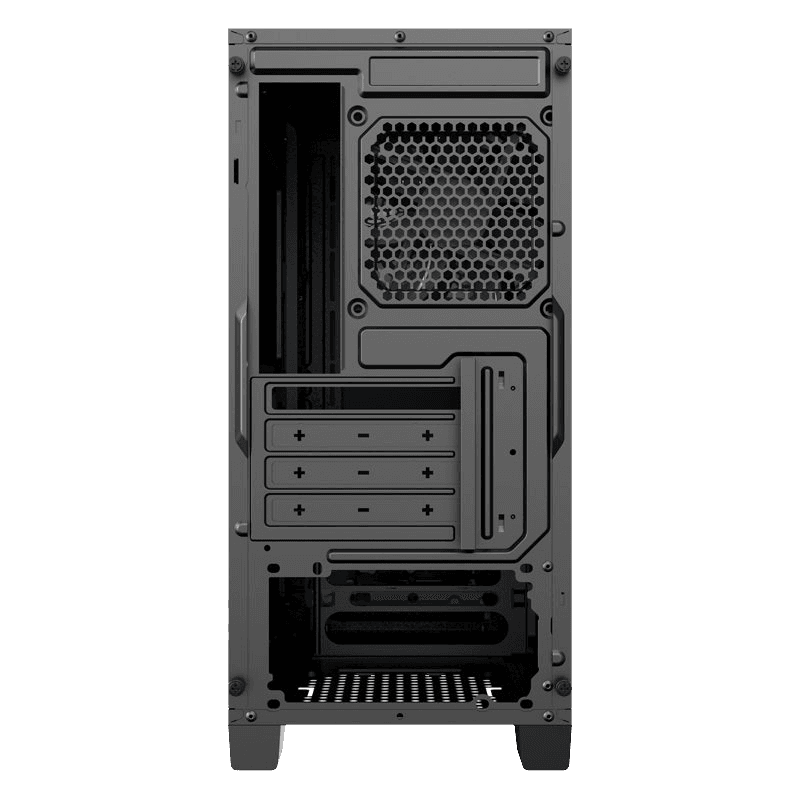

Rear: 1x 120mm black fan (included)
Top: null
Water-Cooling System: Rear: 120 mm water cooling
Front: 240 mm water cooling
Drive Bays 5.25-- exposed 0
Drive Bay 3.5-- exposed 0

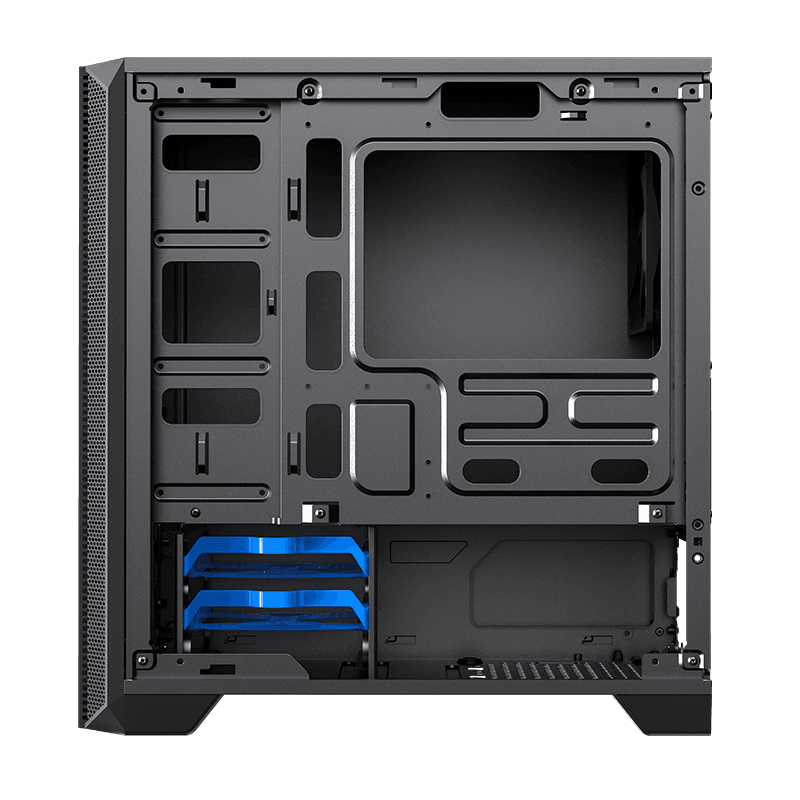

Drive Bay 3.5-- hidden 2
Drive Bay 2.5-- SSD 2
PCI Expansion Slots: 4
Chassis Size: 350*188*380mm
Carton Size: 439*245*470mm
NW (KG): 3.6kg
GW (KG): 4.4kg
QTY in 20GP cntr(appr.): 540 pcs
QTY in 40GP cntr(appr.): 1120 pcs
QTY in 40HQ cntr(appr.): 1320 pcs
M-B Form Factor : Micro ATX-Mini ITX
Max.VGA Card (Length): 340 mm
Max.CPU Cooler(Height): 155mm
