Form Factor (Midi Micro Mini ITX Full) TOWER
Chassis SPCC :0.6mm
PSU Form Factor Bottom-ATX
M-B Form Factor E-ATXATXM-ATXITX

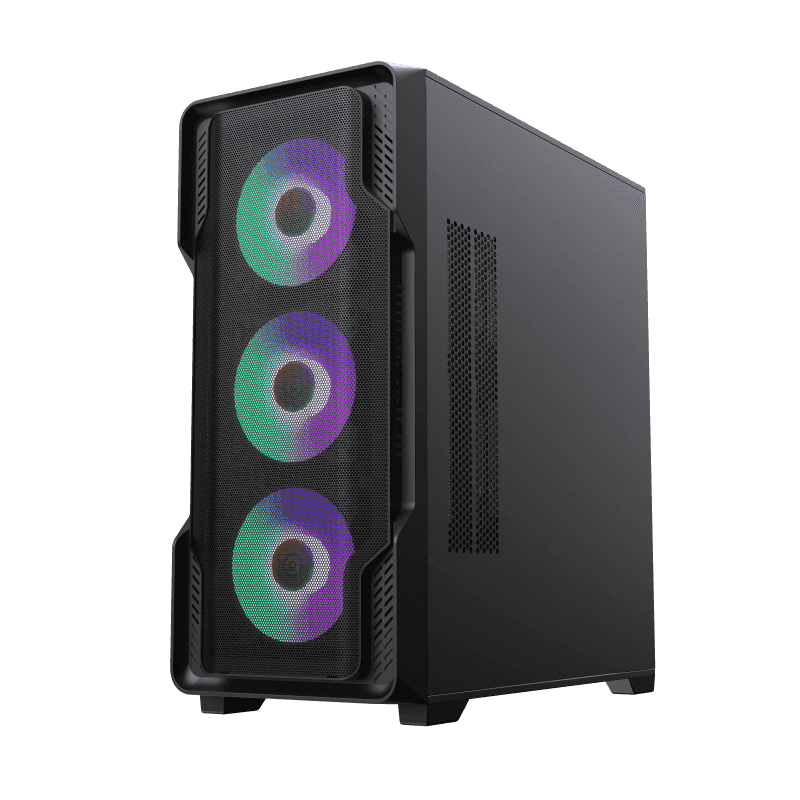

Front Panel ABSMesh
Top Panel Metal cover

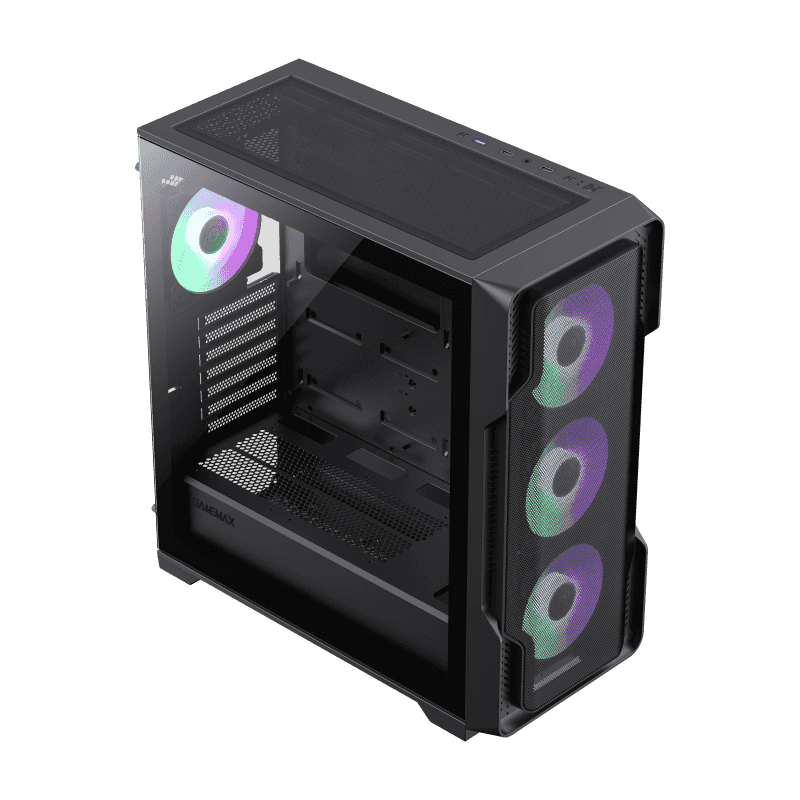

Side Panel Left Tempered Glass

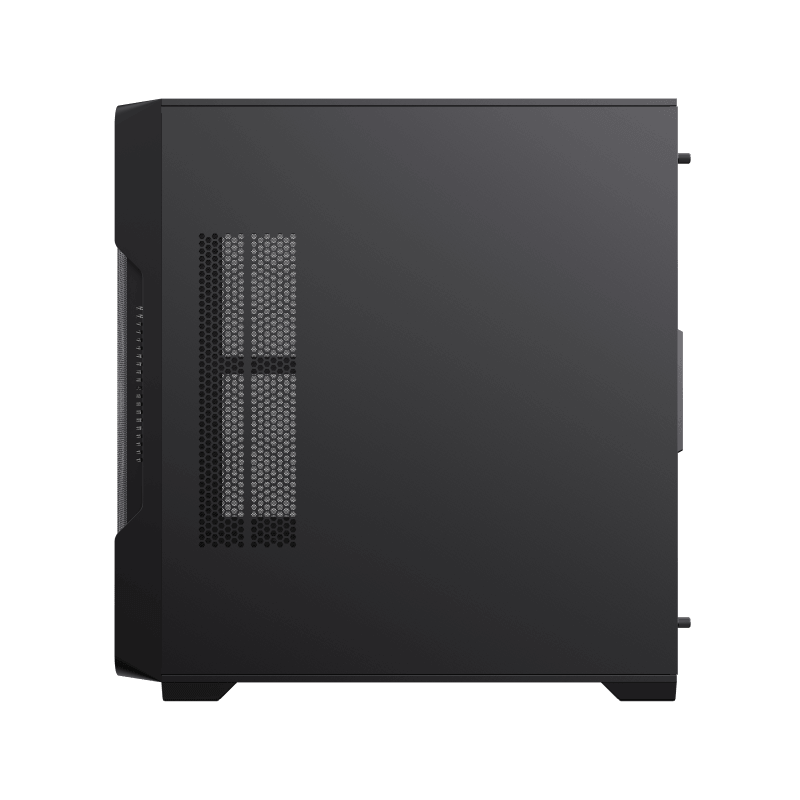

Right metal cover
External Drive
Bay(s) 5.25a (ODD) *0
3.5a *0
Internal Drive
Bay(s) 3.5a (HDD) *2
2.5a (SSD) *3
1*3.5HDD+3*2.5SSD or 2*3.5HDD+2*2.5SSD
I-O Buttons *3
USB2.0 Port(s) *2
USB3.0 Port(s) *1
USB3.1 Port(s) *0
Audio Support *1 (COMBO AUDIO)
RGB Controller *1 (built-in Master-Fan)
Controller max. fans *8
Cooling Fan

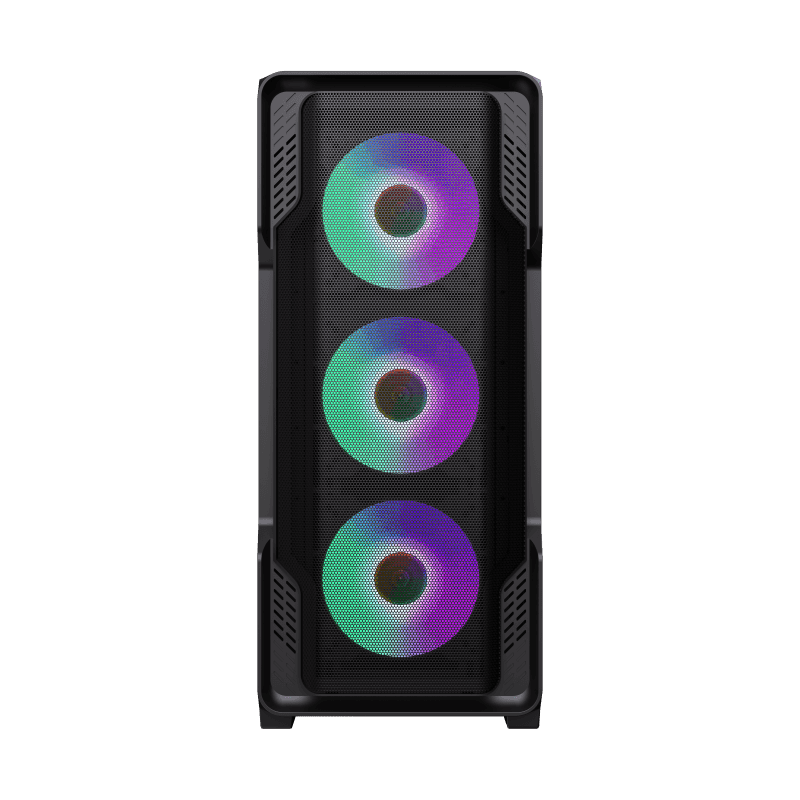

Support Front 3x120mm ARGB Fan (FN12A-M6+2xFN12A-S6)
Top 3x120mm 2x140mm (Fan optional)
Rear 1x12cm ARGB Fan (FN12A-S6)
M-B Cover 2x120mm (Fan optional)
PSU Cover 2x120mm (Fan optional)
Water Cooling Support
(Radiator Size) Front 120mm 140mm240mm280mm360mm
Top 120mm 140mm240mm280mm360mm
Rear 120mm
M-B Cover 120mm 240mm
Dust Cover Bottom right side panel and top cover with dust filter

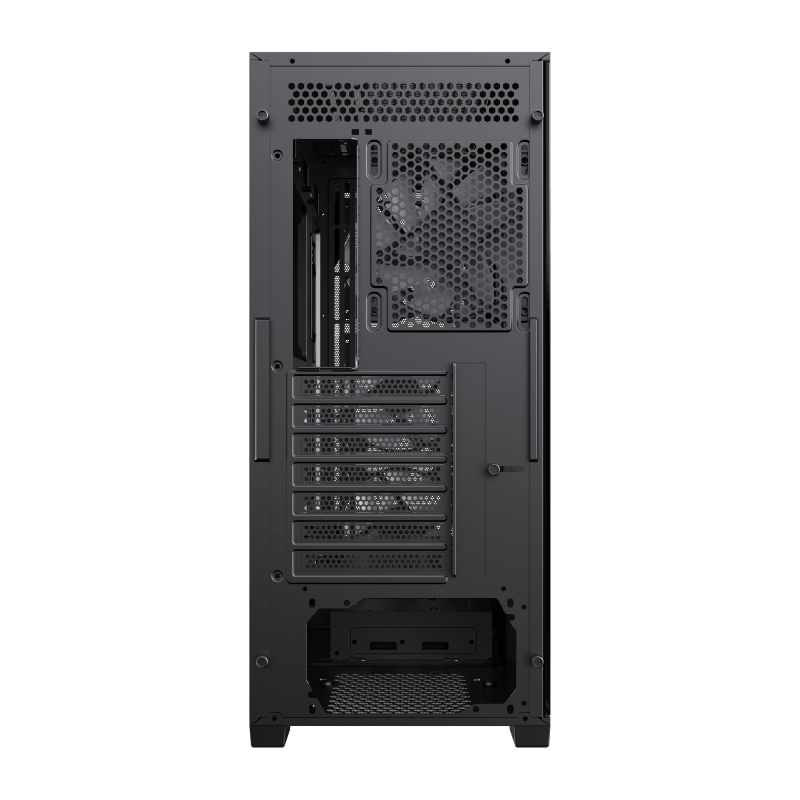

Slots *7
Carton - Logo GAMEMAX
Dimensions Chassis (L)415*(W)210*(H)470mm
Full Case (inc Fascia) (L)465*(W)210*(H)485MM
Carton (L)532*(W)262*(H)515MM
VGA Card Length up to 410mm(front cover w-o fan)
CPU Cooler Height 165mm
SPS Length up to 265mm(front cover w-o Water Cooling)
Cable Management Depth 25mm
