• Product Name MasterFrame 400 Mesh
• Materials AL+ SGCC + TG - Mesh
• Dimensions (L x W x H) 471 x 261 x 373.8 mm (Incl. Protrusions) 471 x 261 x 361 mm (Excl. Protrusions)
• Volume 44.37 L (w-o protrusions) 46 L (with panel protrusions and feet)
• Motherboard Support Mini-ITX Micro-ATX
• Cable Routing - Behind Motherboard Tray 43 mm
• Accessory Graphics Card Holder
• Dust Filters Front Side
• Power Supply Support ATX
• Size Mid Tower
• PCI Expansion Slots 4
• Drive Bays - 5.25a ODD N-A
• Drive Bays - 3.5a HDD 1 (Only supported without bottom fans. Shares 3.5a and 2.5a mounting positions.)
• Drive Bays - 2.5a SSD 1 (Only supported without bottom fans. Shares 3.5a and 2.5a mounting positions.)

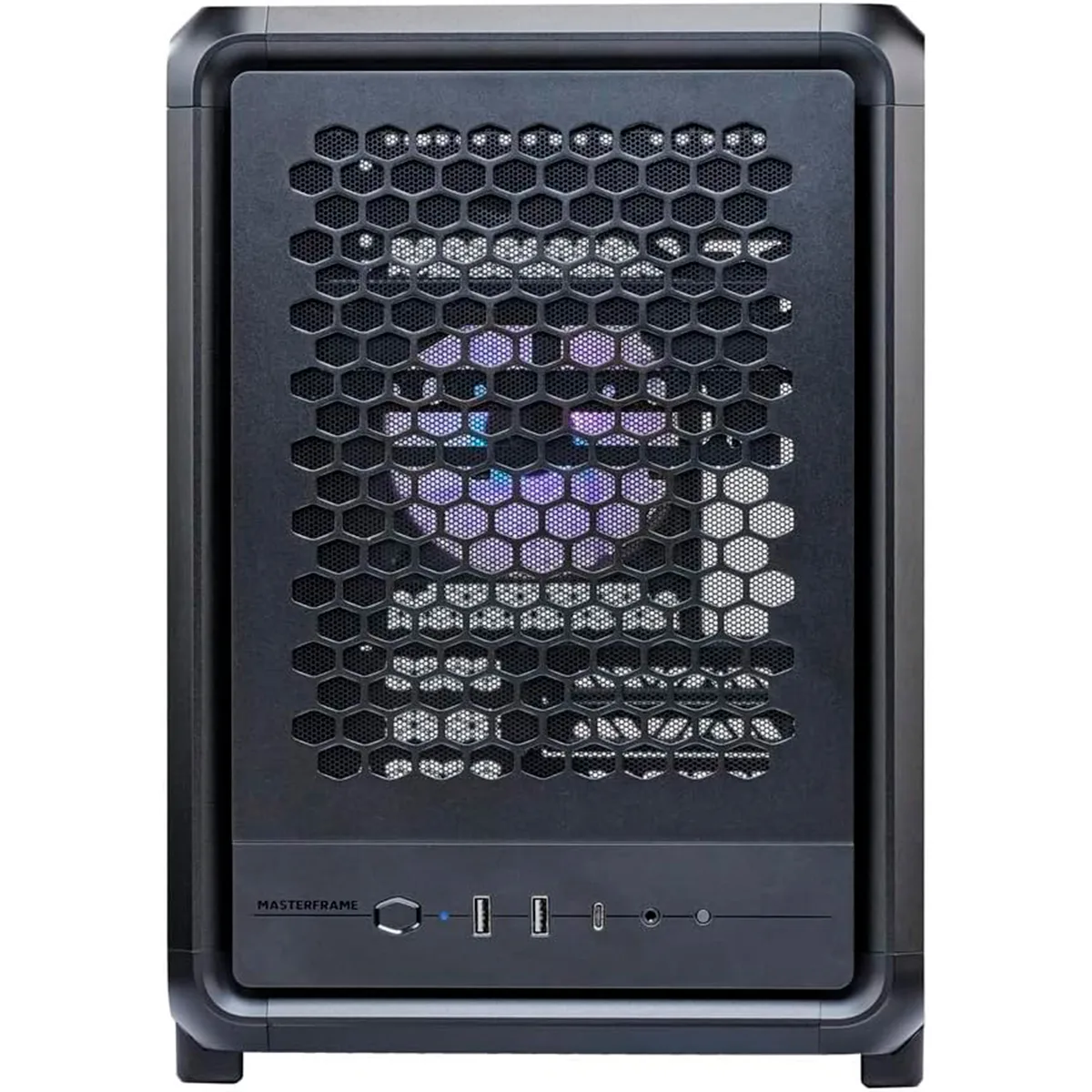

I-O Panel
• USB Ports 2 x USB 3.2 Gen 1 Type A - 1 x USB 3.2 Gen 2 x 2 Type C
• Audio In - Out 1 x 3.5 Mic - Audio Combo Jack
Pre-installed Fans
• Rear 1x SickleFlow 120 mm ARGB Black - 1x SickleFlow 120 mm ARGB White
Fan Support
• Front 2 x 120mm - 1 x 140mm* 1 x 180mm* 1 x 200mm* (*Conditional Support)
• Top 3 x 120mm - 2 x 140mm - 2 x 180mm* 2 x 200mm* (*Fan thickness = 25.5mm)
• Rear 1x 120mm
• Bottom 3x 120mm 2x 140mm 2x 180mm 2x 200mm and all fans up to 30mm thick.
Radiator Support
• Front N-A
• Top 240 - 280 - 360 mm
• Rear 120 mm
• Bottom N-A
Clearances
• CPU Cooler 190 mm
• Power Supply 160 mm
• Graphics Card 390 mm
