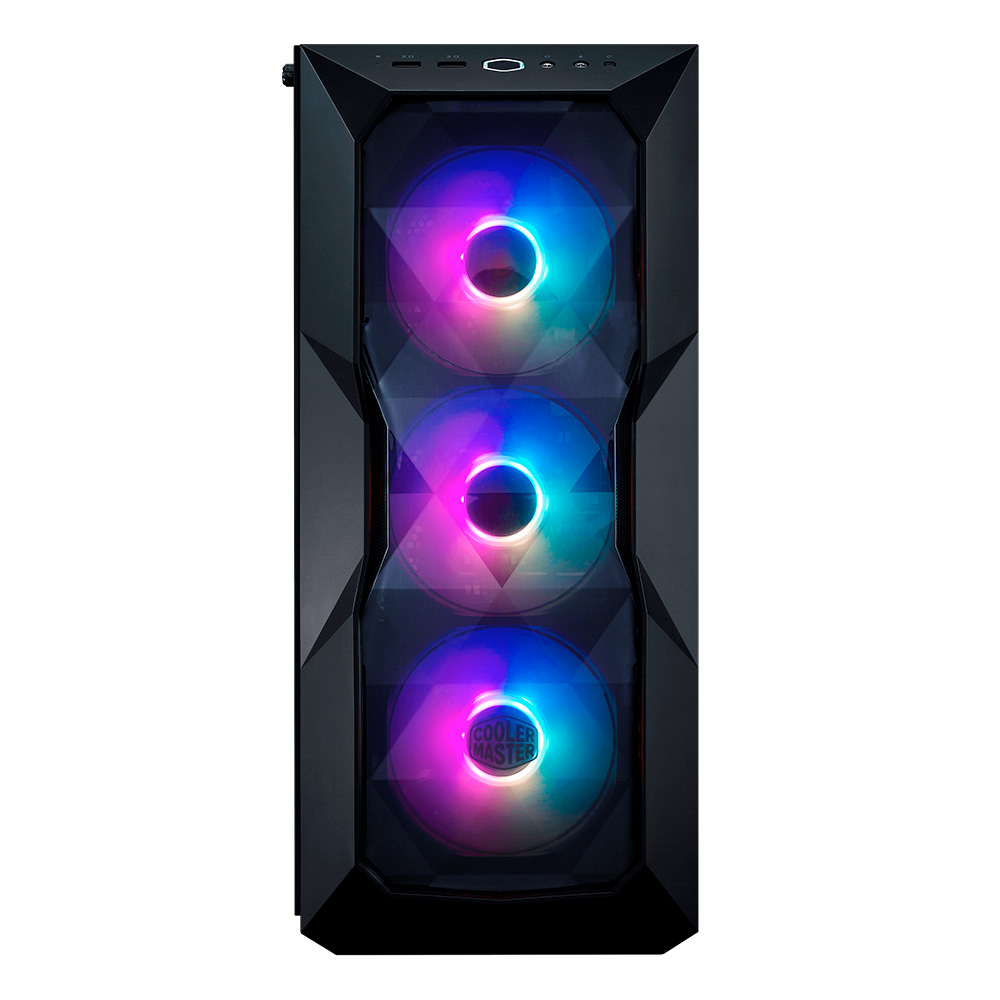

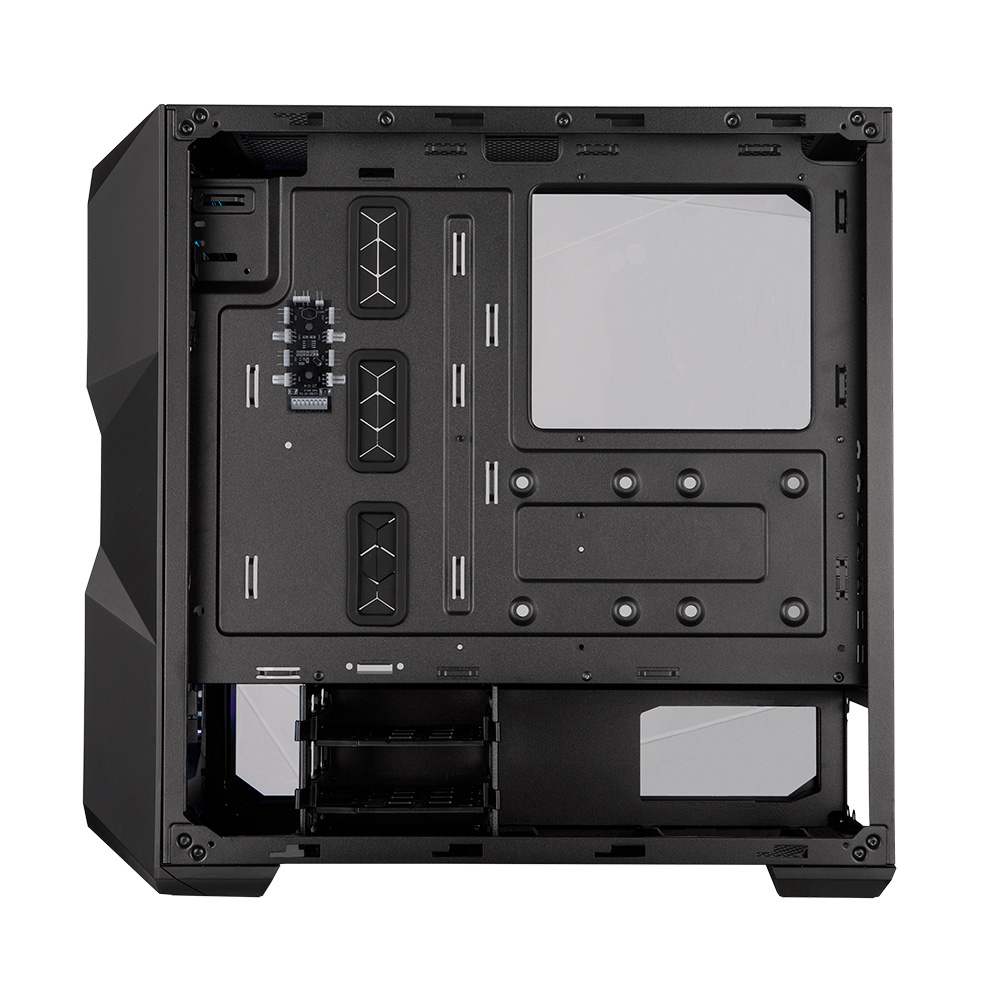

• Model Number MCB-D500D-KANN-S01
• Series MasterBox Series
• Size Mid Tower
• Color(s) Black
• Materials - Exterior Steel Plastic
• Materials - Left Side Panel Acrylic
• Dimensions (L x W x H) 493 x 217 x 469mm (incl. Protrusions) 429.5 x 205 x 447mm (excl. Protrusions)
• Motherboard Support Mini ITX Micro ATX ATX E-ATX* (*up to 12a x 10.7a motherboards may impact cable management feature)
• Expansion Slots 7
• 5.25a Drive Bays N-A
• 2.5a - 3.5a Drive Bays (Combo) 2
• 2.5a Drive Bays 4 (2+2 combo)
• I-O Panel 2x USB 3.2 Gen 1 (USB 3.0) 1x 3.5mm Audio Jack 1x 3.5mm Mic Jack 1x ARGB Hub
• Pre-installed Fans - Front 3x 120mm CF120 ARGB
• Pre-installed Fans - Rear 1x 120mm (Black)
• Fan Support - Top 3x 120mm 2x 140mm
• Fan Support - Front 3x 120mm 2x 140mm
• Fan Support - Rear 1x 120mm
• Radiator Support - Top 120mm 240mm 360mm (44mm max motherboard component height)
• Radiator Support - Front 120mm 140mm 240mm 280mm 360mm
• Radiator Support - Rear 120mm
• Clearance - CPU Cooler 165mm-6.49a
• Clearance - PSU 180mm-7.08a
• Clearance - GFX 410mm-16.1a
• Cable Routing 19mm-0.74a
• Dust Filters Front Top Bottom
• Power Supply Support Bottom Mount ATX
