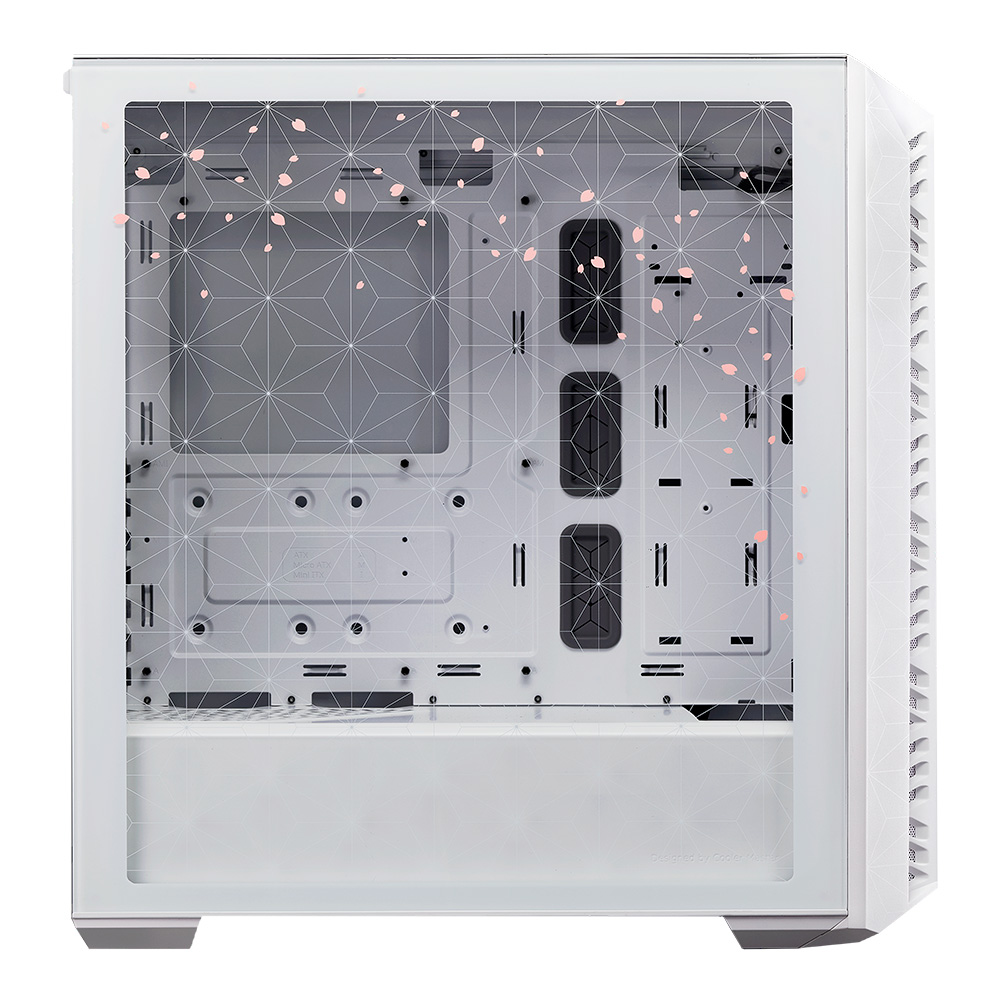

Model Number MB520-WGNN-S02
Exterior Color White
Materials - Exterior Mesh Steel Plastic Tempered Glass
Materials - Left Side Panel Tempered Glass
Dimensions (L x W x H) 499 x 210 x 498mm (Incl. Protrusions) 430 x 210 x 479mm (Body Size)
Motherboard Support Mini ITX Micro ATX ATX SSI CEB E-ATX* (*up to 12a x 14.1a may impact cable management features)
Expansion Slots 7
3.5a Drive Bays 2
2.5a Drive Bays 3

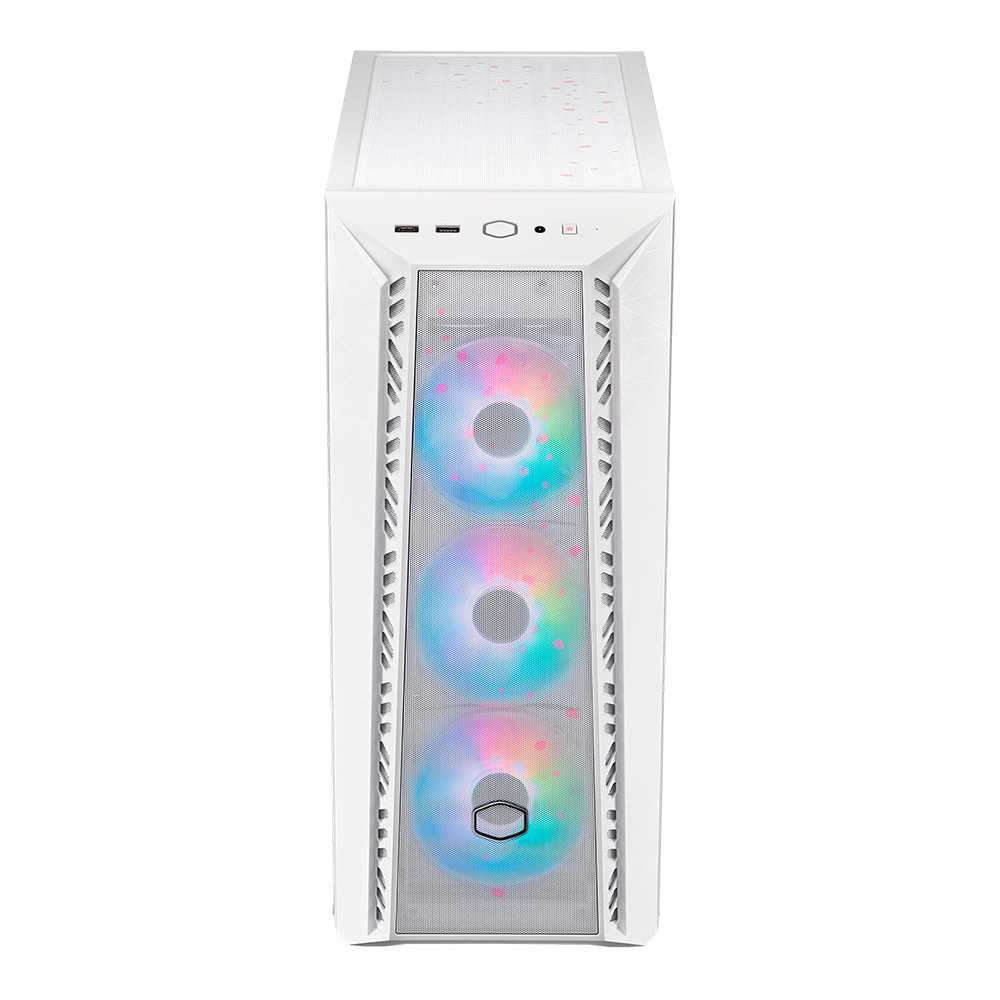

I-O Panel 1x USB 3.2 Gen 1 Type-A 1x USB 3.2 Gen 2 Type-C 1x 3.5mm Headset Jack (Audio+Mic) 1x Reset-ARGB button
Included Accessories ARGB Fans Hub
Pre-installed Fans - Front 3x CF120 ARGB
Fan Support - Top 3x 120mm - 2x 140mm
Fan Support - Front 3x 120mm - 2x 140mm
Fan Support - Rear 1x 120mm
Radiator Support - Top 120mm 140mm 240mm 280mm 360mm (recommended maximum thickness -55mm)
Radiator Support - Front 120mm 140mm 240mm 280mm 360mm
Radiator Support - Rear 120mm
Clearance - CPU Cooler 165mm-6.49a
Clearance - PSU 200mm - 7.87a (Recommended up to 170mm)
Clearance - GFX 410mm - 16.14a
Dust Filters Bottom Front Top
Power Supply Support ATX
Series MasterBox Series
Size Mid Tower
