Form Factor (Midi Micro Mini ITX Full) Midi ATX Tower
Chassis SPCC : 0.5mm
PSU Form Factor Bottom-ATX
M-B Form Factor ATXM-ATXE-ATX (no Fan on front)
Front Panel ABS
Top Panel metal cover
Side Panel

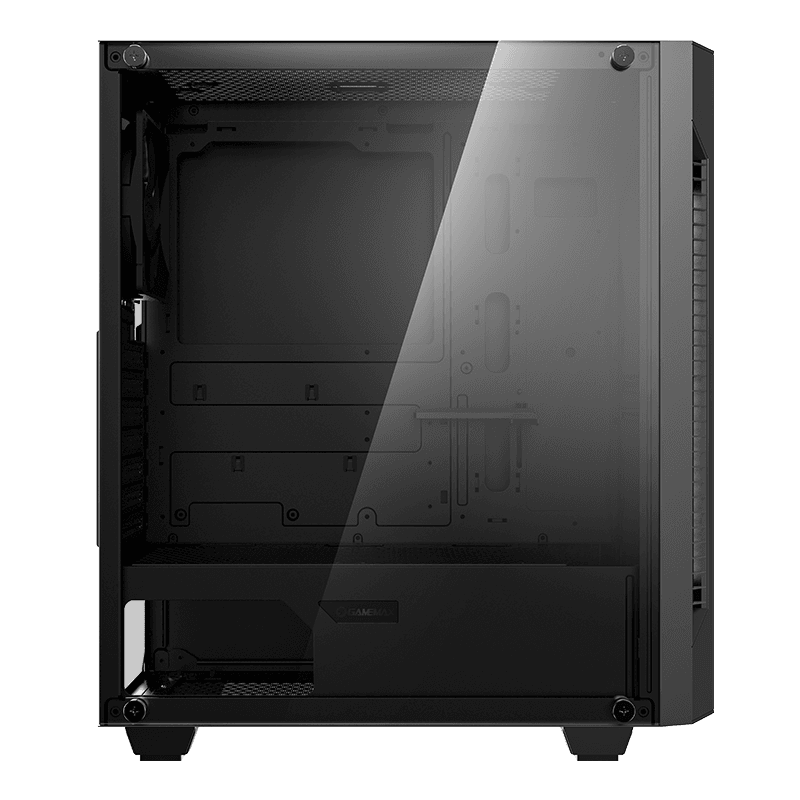

Left Tempered Glass
Right metal cover
I-O CONFIG
Buttons *2
USB2.0 Port(s) *2
USB3.0 Port(s) USB3.1 GEN1 *1
HD Audio Support *1
Card Reader (Support) *0
P-Lock *0

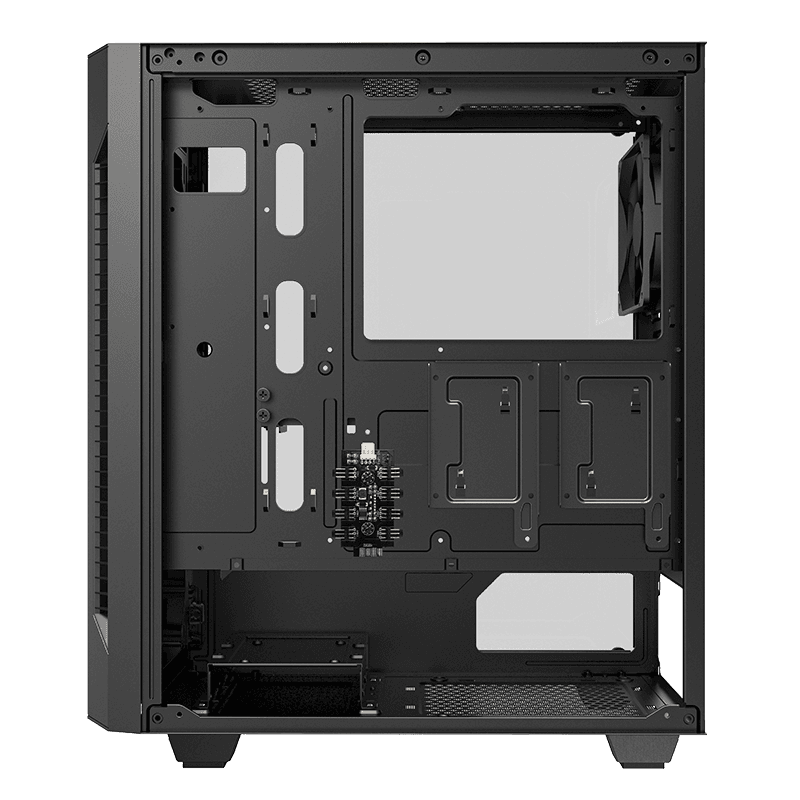

PWM Controller *1 (V1.4)
Controller max. fans *8
RGB Controller max. LED strips *0
Remote (IR or RF) *0
Cooling Fan Support
Front 2x120mm Black Fan( Included)
Top 2x120mm 2x140mm (Fan optional)
Rear 1x120mm Black Fan( Included)
Left Side 0
PSU Cover 2x120mm (Fan optional)
Water Cooling Support (Radiator Size)
Front 120mm 140mm240mm280mm
Top 120mm 240mm
Rear 120mm*1
Dust Cover Bottom and top cover with dust filter
Slots *7
Dimensions
Chassis (L)360*(W)210*(H)440mm
Full Case (inc Fascia) (L)421*(W)210*(H)460mm
Carton (L)*(W)*(H)mm
Net Weight (Kg) 5.5kgs
Gross Weight (Kg) 6.6kgs
VGA Card Length up to 340mm
CPU Cooler Height 170mm
Cable Management Depth 22mm
