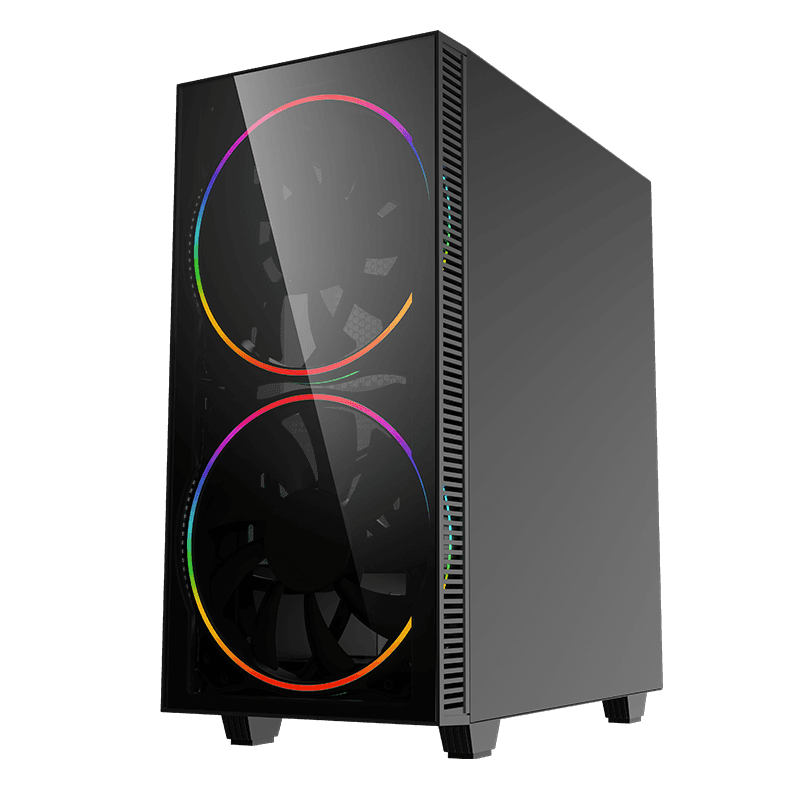

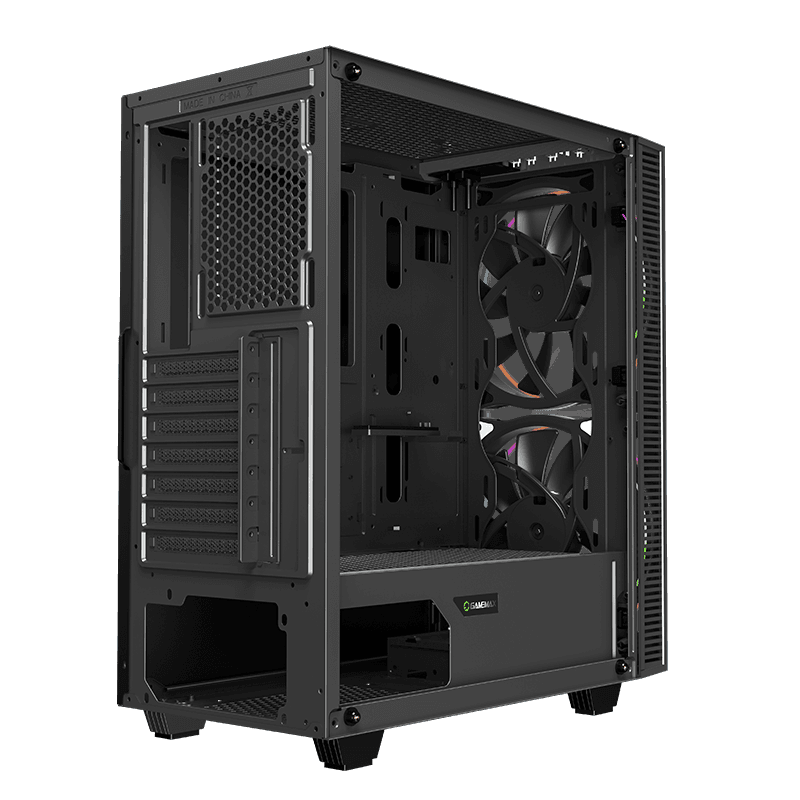

Form Factor (Midi Micro Mini ITX Full) Midi ATX Tower
Chassis SPCC : 0.5mm
PSU Form Factor Bottom-ATX
M-B Form Factor ATXM-ATXE-ATX (No fan on front)
Front Panel ABS
Top Panel metal cover
Branding Box GameMax standard
Unit 1

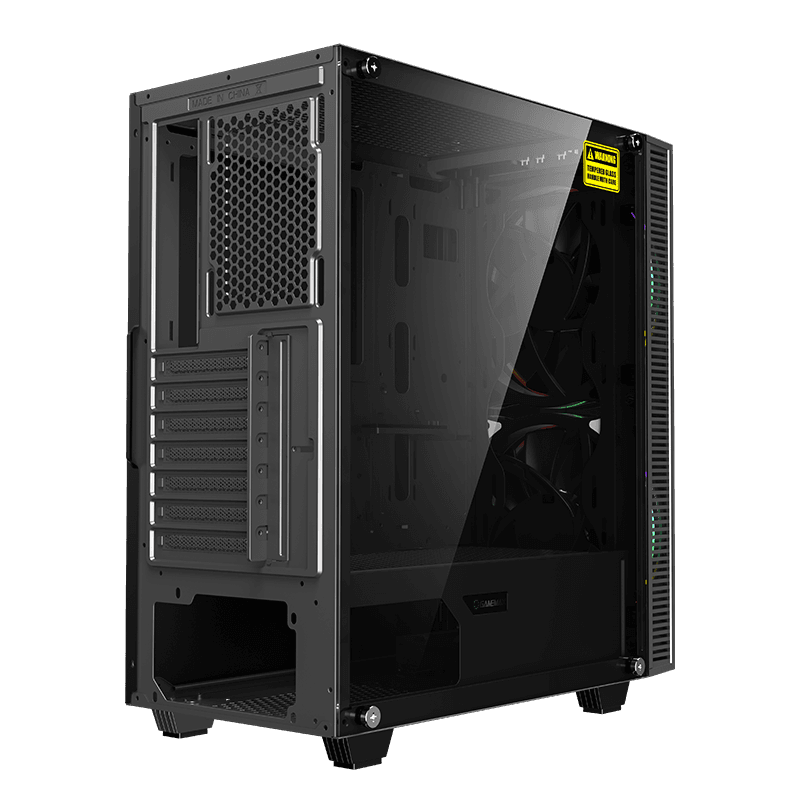

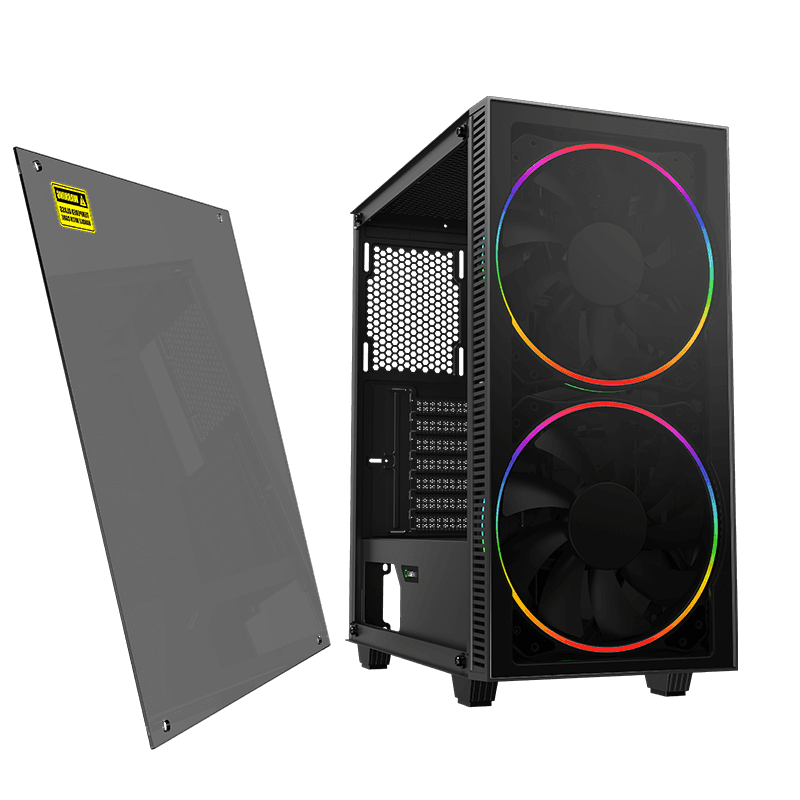

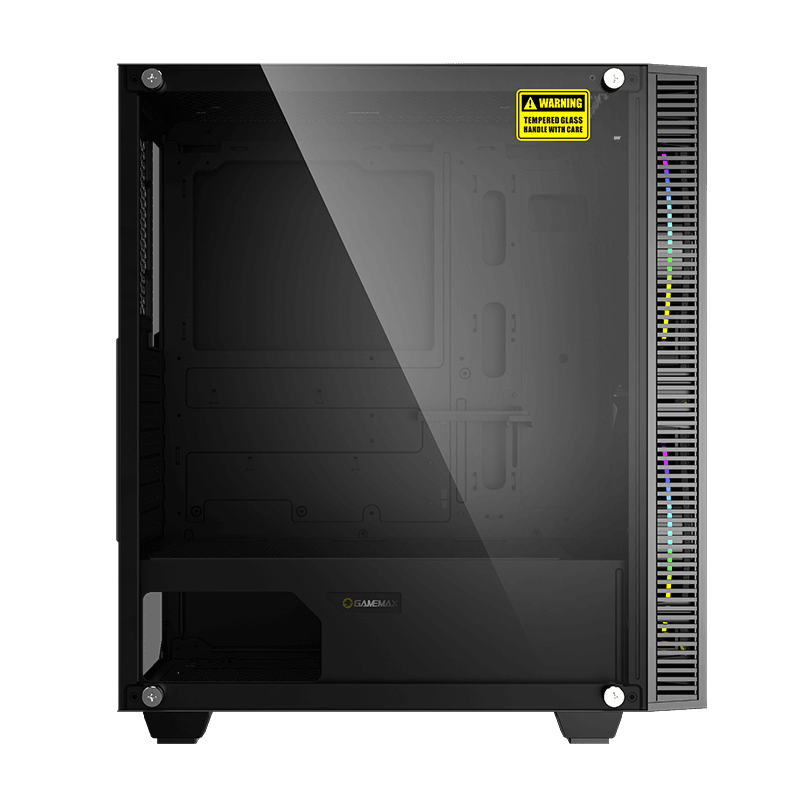

Side Panel Left Tempered Glass

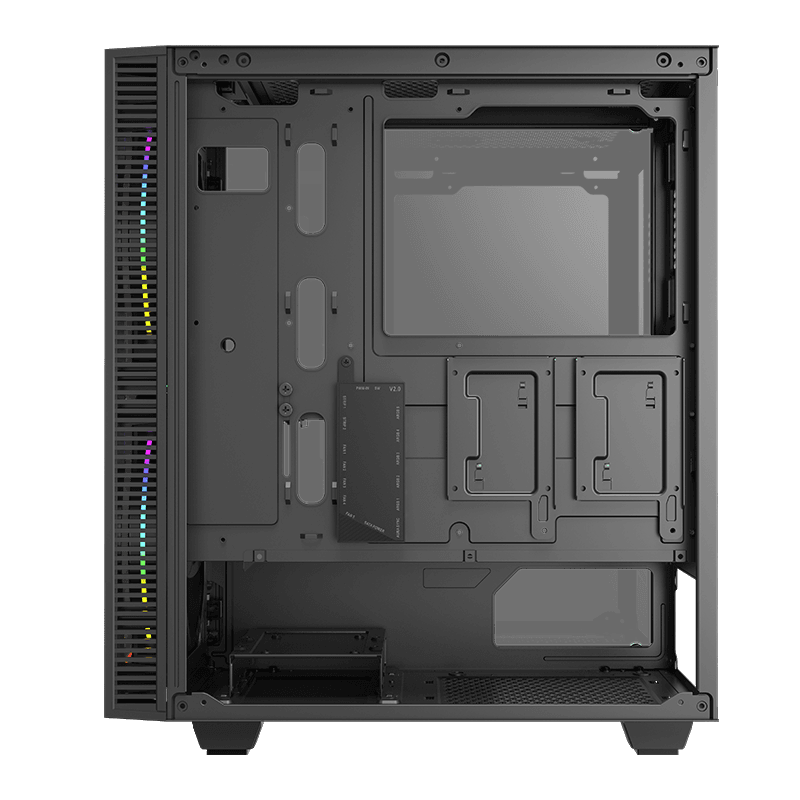

Right metal cover
External Drive Bay(s) 5.25a (ODD) *0
3.5a *0
Internal Drive Bay(s) 3.5a (HDD) *2
2.5a (SSD) *2
I-O CONFIG Buttons *2
USB2.0 Port(s) *1
USB3.0 Port(s) USB3.1 GEN1 *1
HD Audio Support *1
Card Reader (Support) *0
P-Lock *0
RGB Controller *1
Controller max. fans *5 RGB and 3pin fan power
RGB Controller max. LED strips *2
Remote (IR or RF) *Top RGB switch

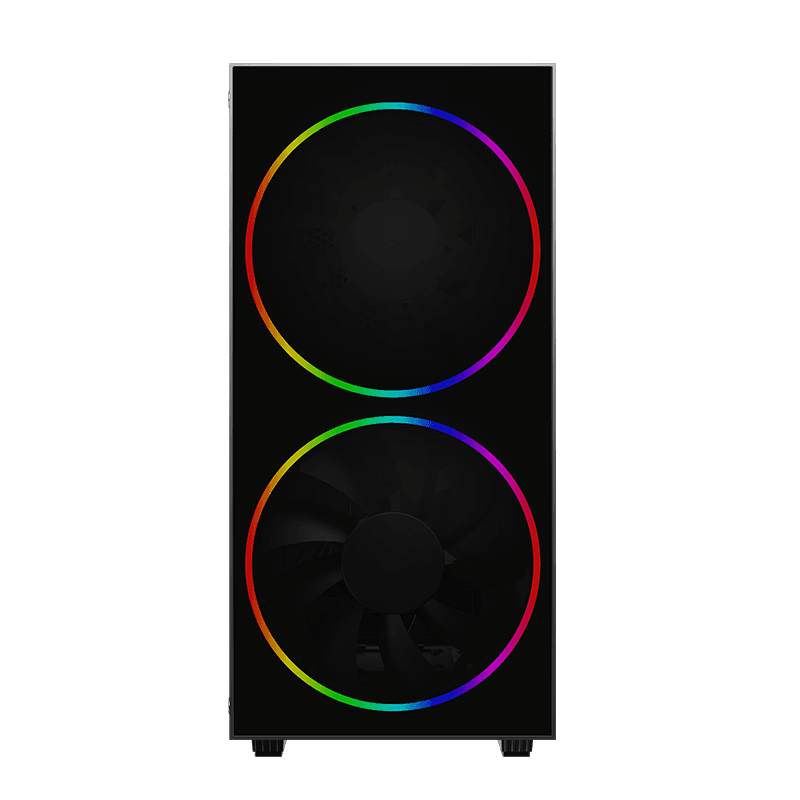

Cooling Fan Support Front 2 x 200mm ARGB Fan(Included)
Top 2x120mm 2x140mm (optional)
Rear 1x120mm (Optional)
Left Side 0
PSU Cover 2x120mm (Fan optional)
Water Cooling Support
(Radiator Size) Front 120mm 140mm240mm280mm
Top 120mm240mm
Rear 120mm*1
Dust Cover Bottom and top cover with dust filter

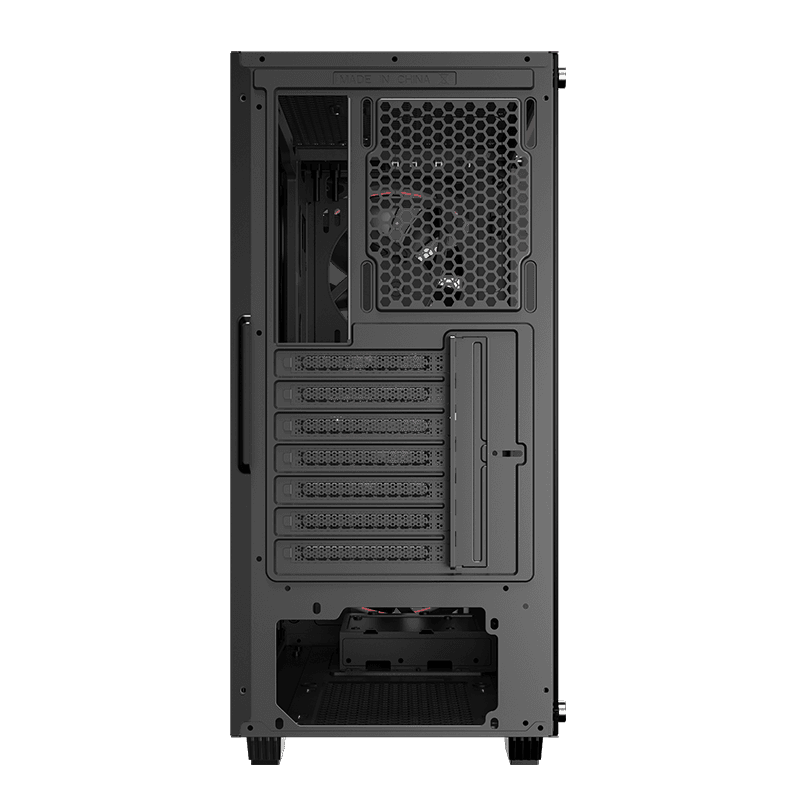

Slots *7
Carton - Logo GAMEMAX
Dimensions Chassis (L)360*(W)210*(H)440mm
Full Case (inc Fascia) (L)421*(W)210*(H)460mm
Carton (L)506*(W)*266(H)465mm
Net Weight (Kg) 5.85kgs
Gross Weight (Kg) 6.75kgs
VGA Card Length up to 340mm
CPU Cooler Height 170mm
Cable Management Depth 22mm
