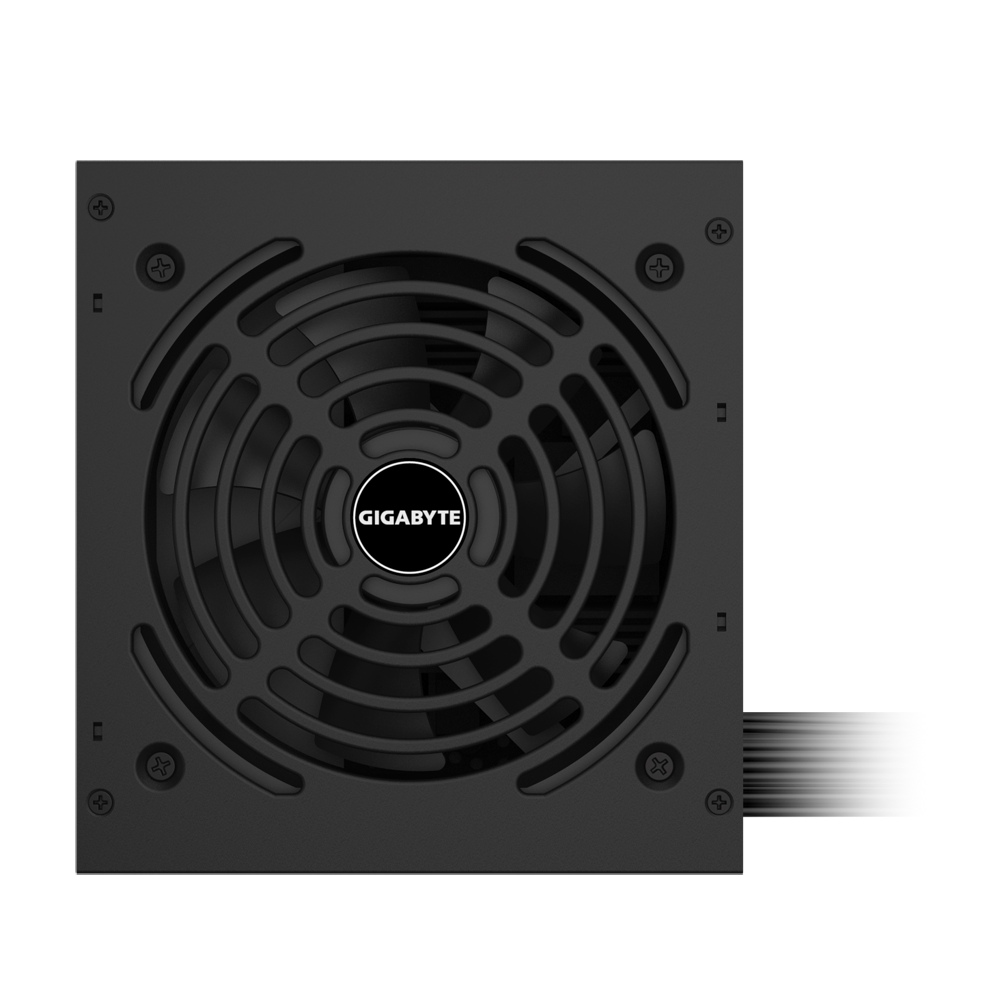

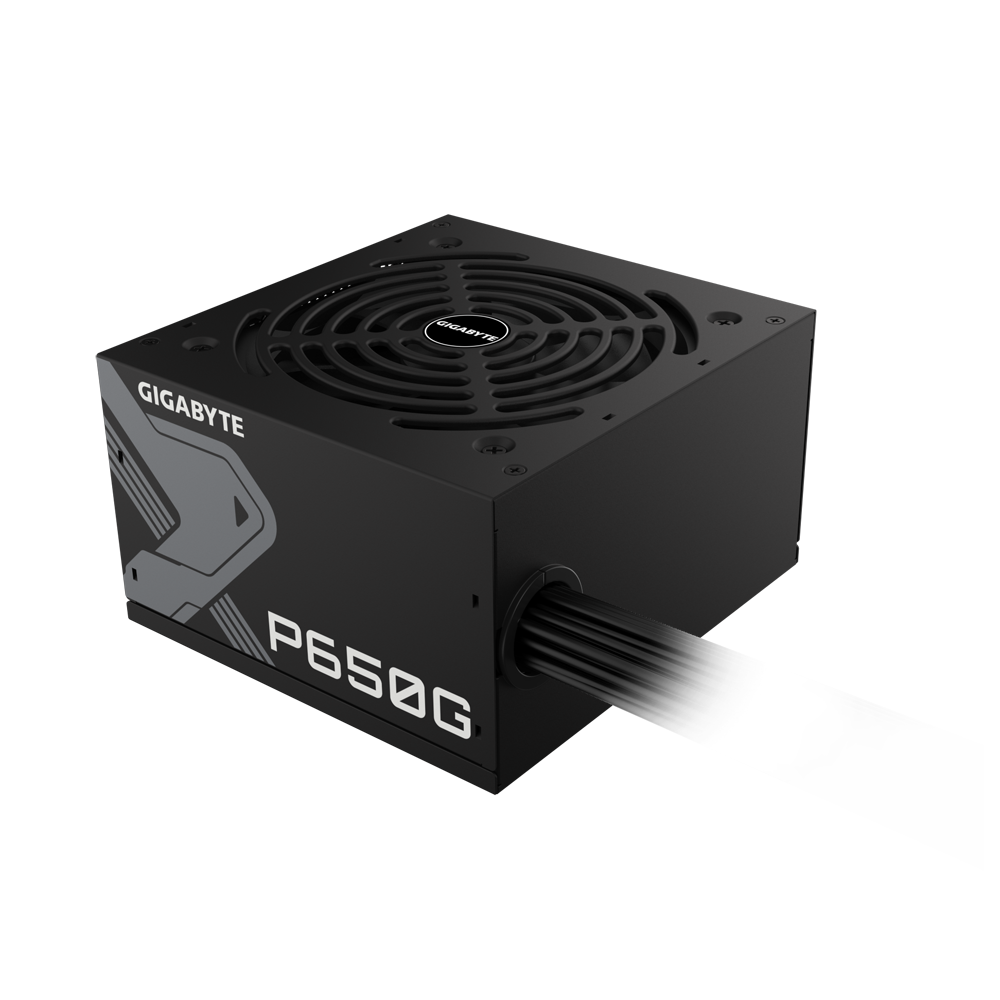

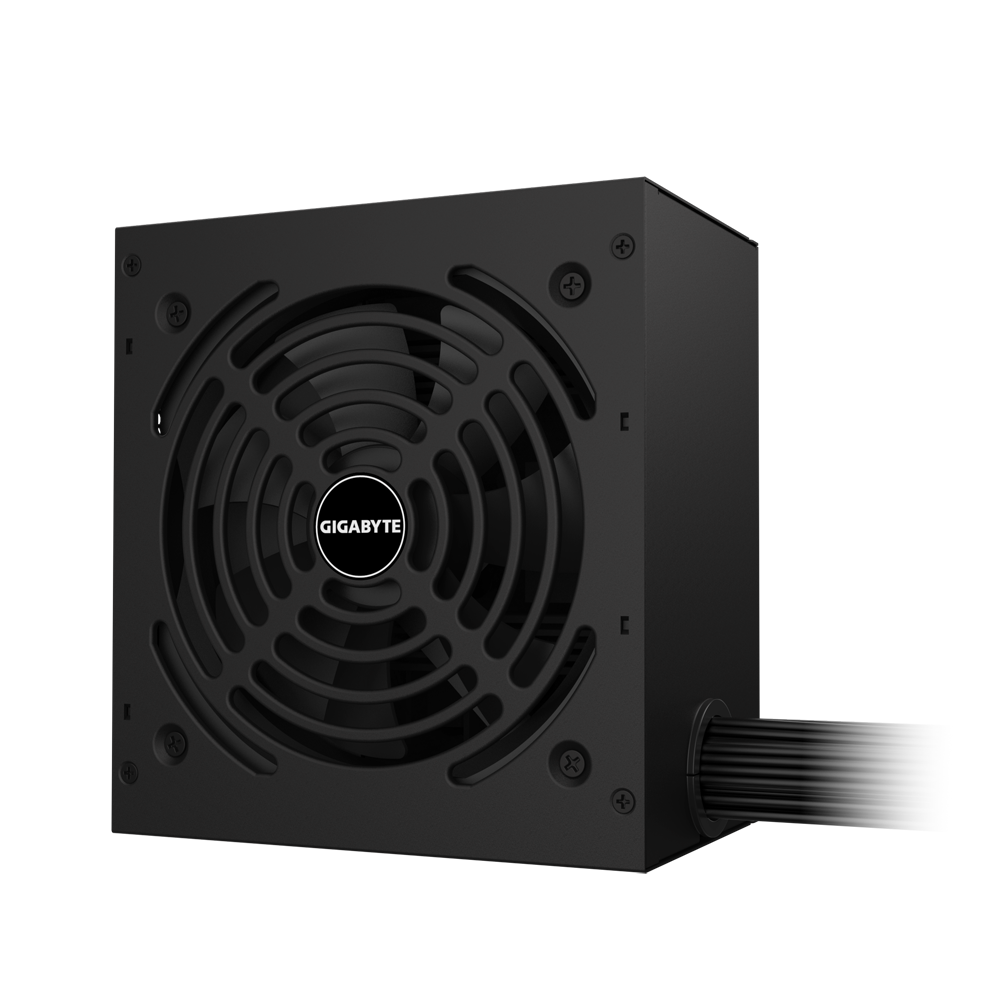

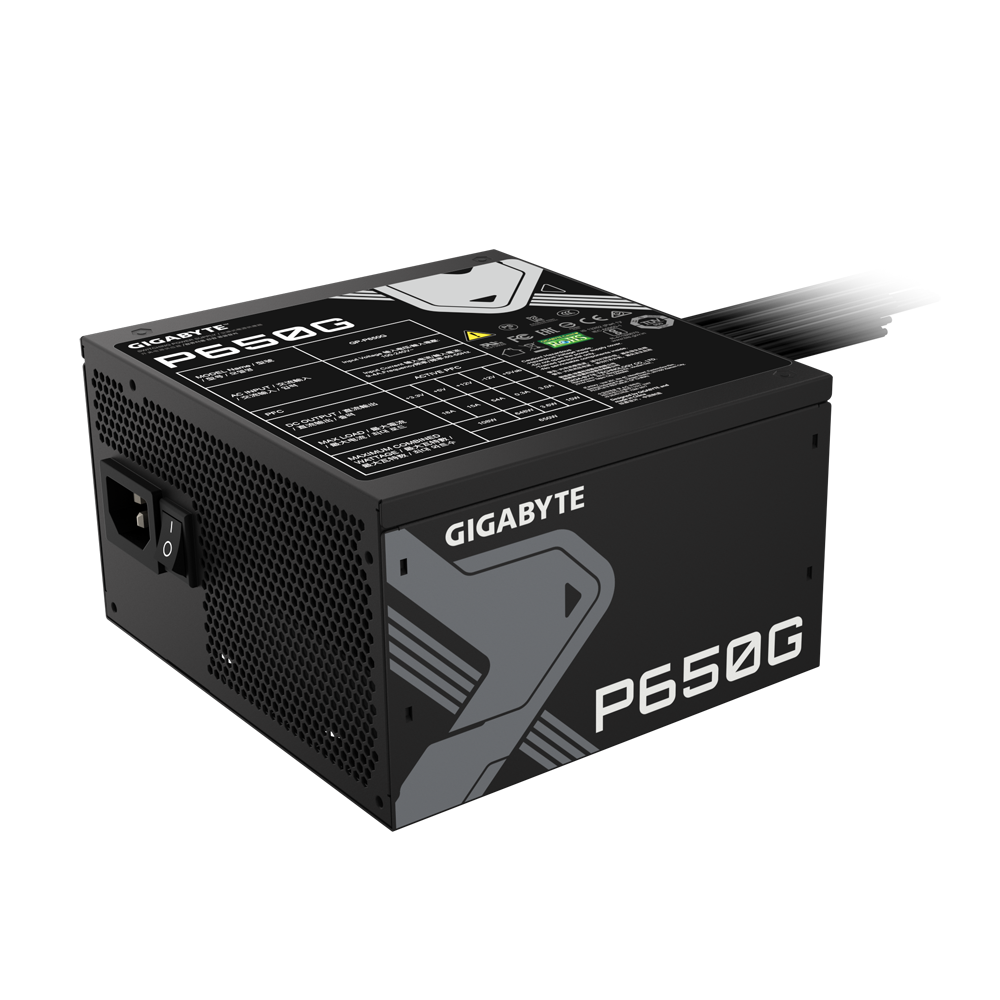

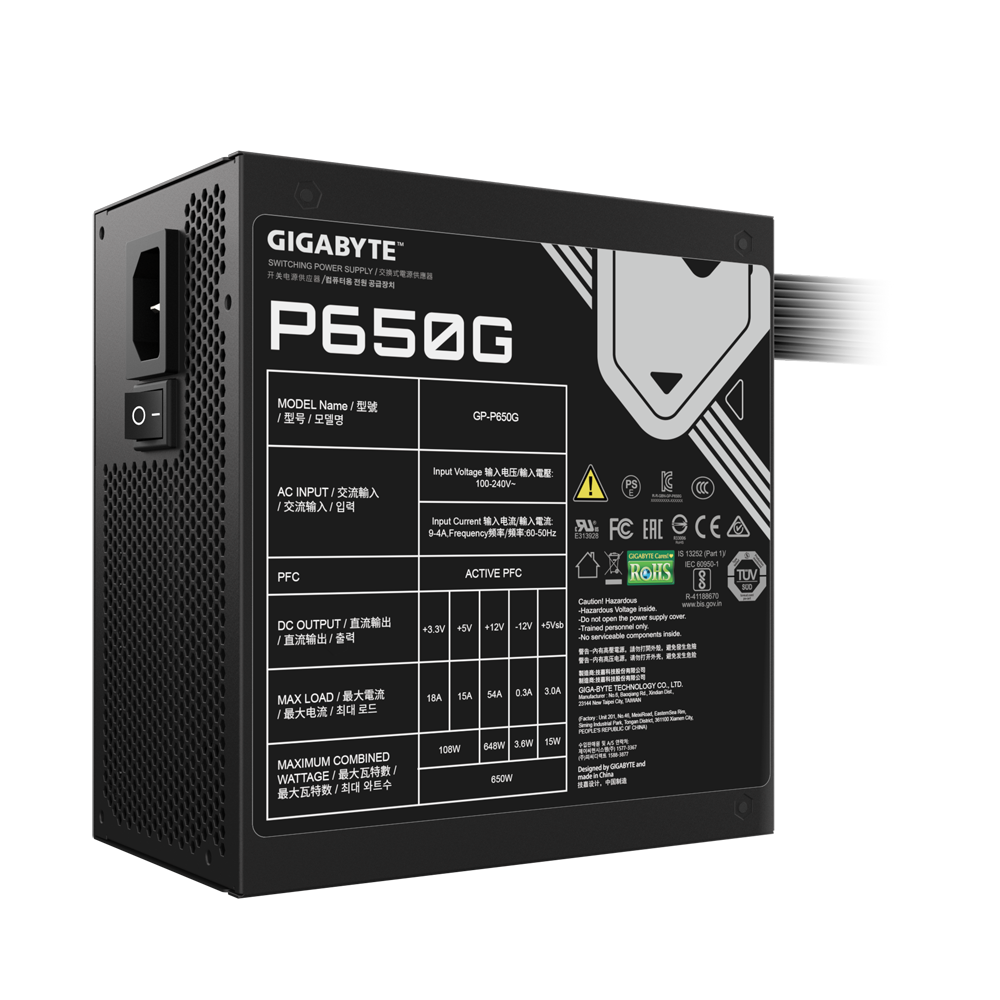

• Model GP-P650G
• Type Intel Form Factor ATX 12V
• PFC Active PFC(>0.9 typical)
• Input Voltage 100-240 Vac(full range)
• Input Current 9-4A
• Input Frequency 60-50 Hz
• Output Capacity 650W
• Dimension 150 x 140 x 86 mm
• Fan Type 120mm Hydraulic Bearing (HYB) Fan
• 80 PLUS Gold
• Efficiency 90-por-ciento at typical load
• MTBF >100000 hours
• Protection OVP-OPP-SCP-UVP-OCP-OTP
• Power Good Signal 100-500ms
• Hold Up Time >16ms
• Cable Type Flat All black
Connectors
• ATX-MB 20+4 Pin x 1 : 600mm*1
• CPU-EPS 4+4 Pin x 2 : 600mm+150mm*1
• PCI-e 6+2 Pin x 4 : 500mm+150mm*2
• SATA x 6 : 500mm+150mm+150mm*2
• 4 Pin Peripheral x 3: 500mm+150mm+150mm*1
