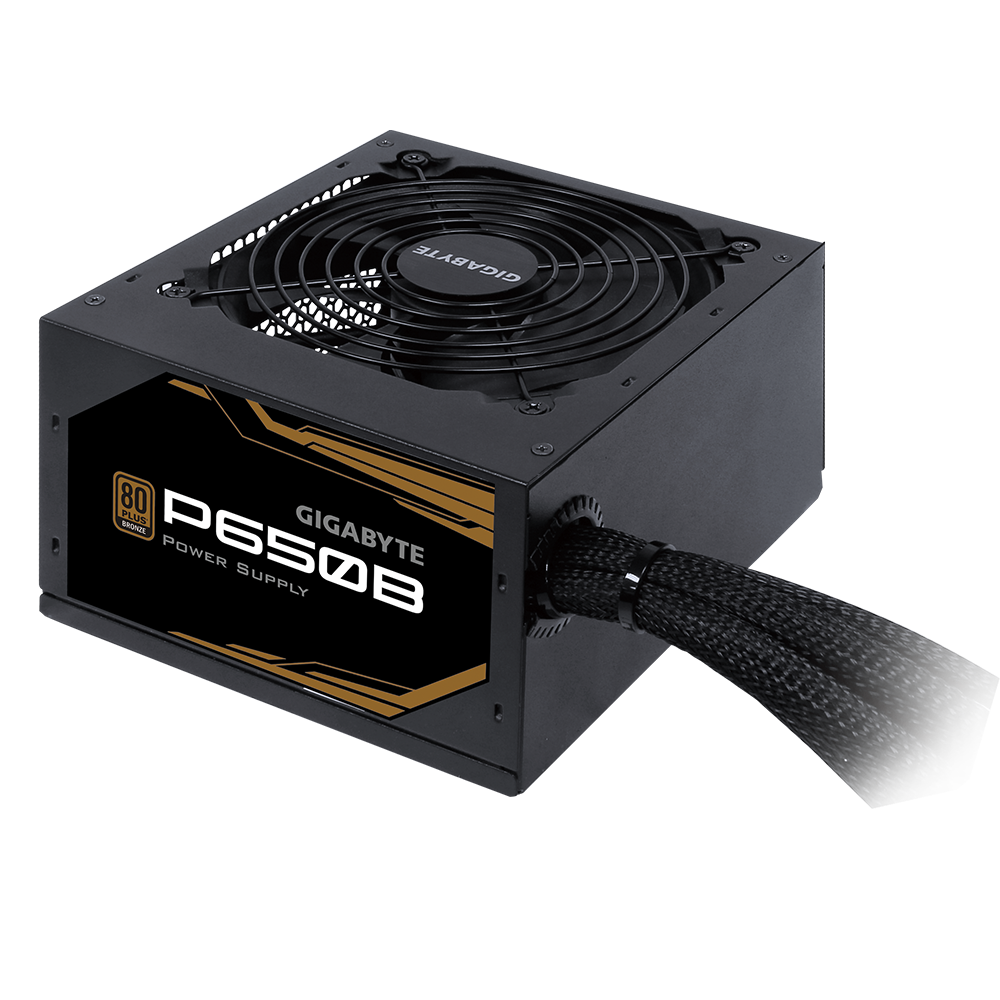

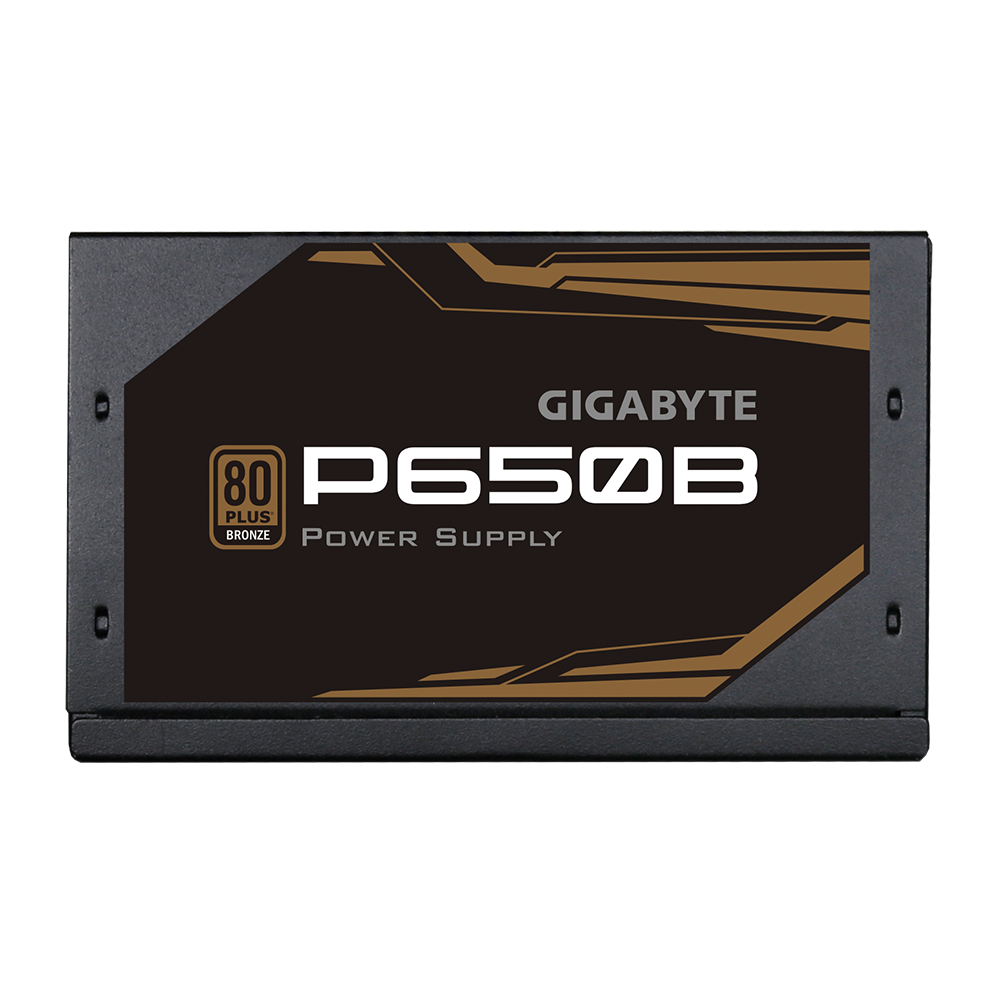

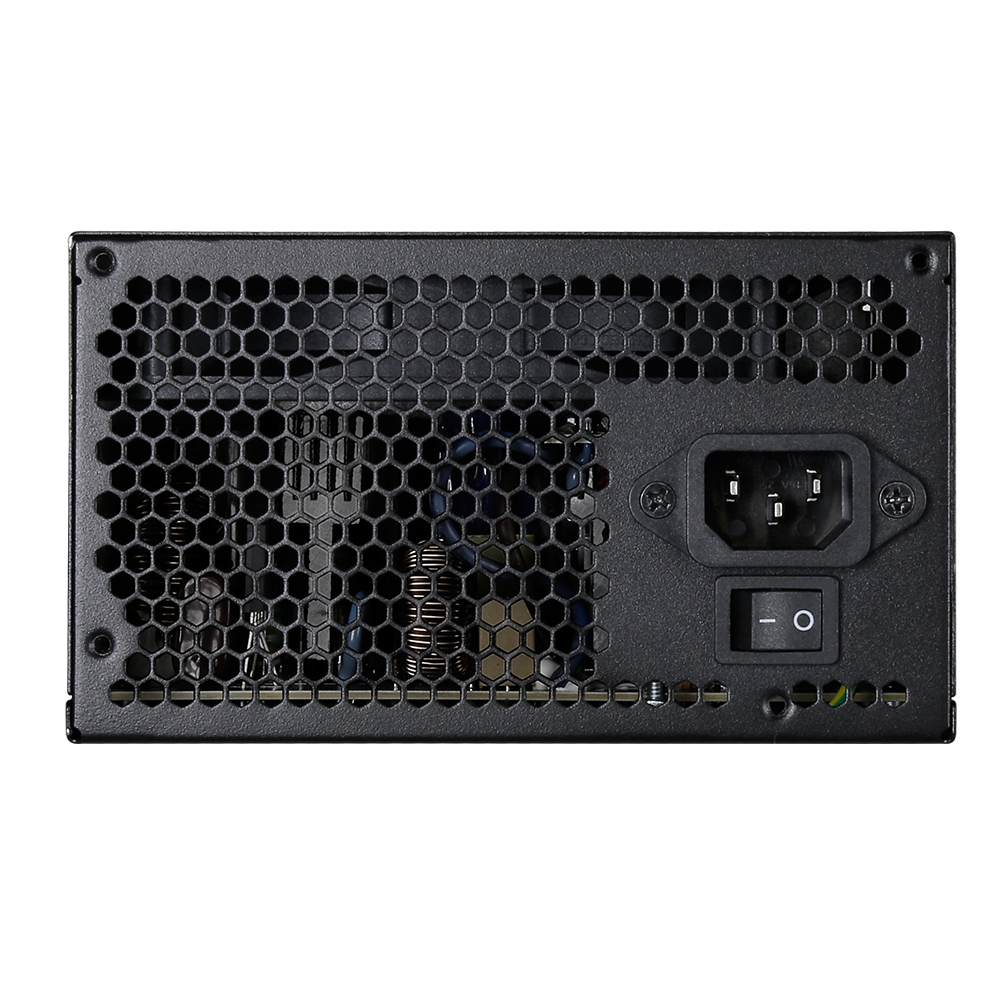

Model P650B
Type Intel Form Factor ATX 12V v2.31
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 9A-4A
Input Frequency 50-60 Hz
Output Capacity 650W
Dimension D150 x W140 x H86 mm
Fan Type 120mm Hydraulic Bearing Fan
Efficiency Up to 85-por-ciento at typical load
MTBF >100000 hours
Protection OPP-UVP-OVP-SCP-OCP
Regulatory CE-CCC-BSMI-KCC-EAC-UL-TUV-RCM-FCC-PSE
Connectors
ATX-MB 20+4 Pin x 1
CPU-EPS 4+4 Pin x 1
PCI-e 6+2 Pin x 4 SATA x 6
4 Pin Peripheral x 3
4 Pin Floppy x 1
