Technical Specifications

CABLES:
• 1 x 24PIN
• 12V8pin(4+4)
• 4 x SATA
• 2 x 4PIN
• 1 x PCI-6 + 2PIN

• 80PLUS® None 80+
• Efficiency Level >75-por-ciento
• Noise Level Zero (ECO-ON)<32dBA (at 100-por-ciento load)
• Form Factor Intel ATX 12 V 2.31
• Dimensions 140 mm (W) x 150 mm (L) x 86 mm (H)

Fan Information

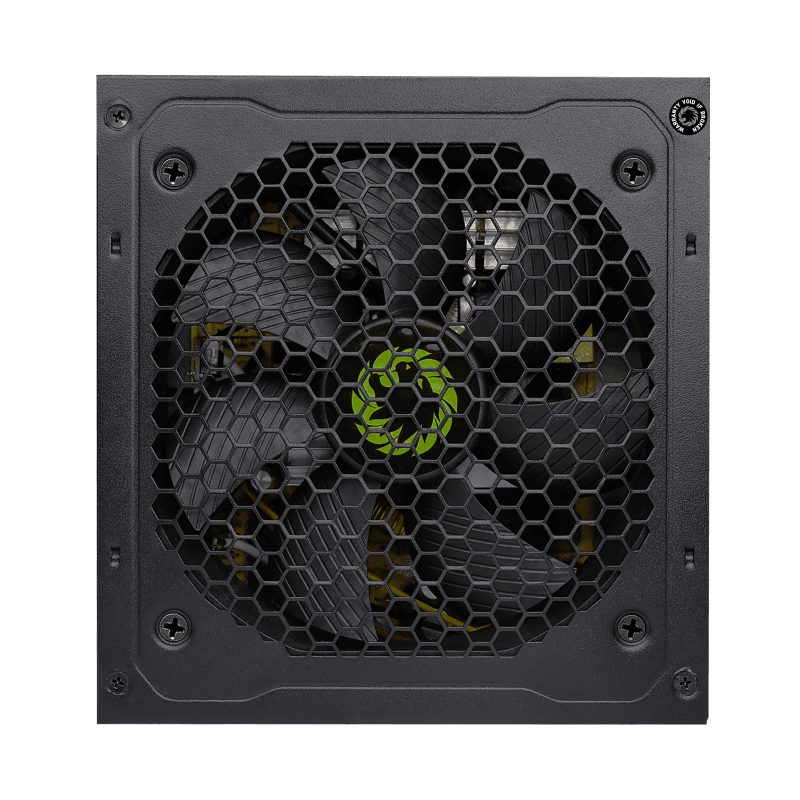

• Fan Size 120 mm
• Fan Control ECO-ON-OFF
• Fan Bearing Fluid Dynamic Bearing
• Life Expectancy 50000 hours at 40 °C 15 -por-ciento - 65 -por-ciento RH

Cable Information
• Modularity Wired Cabling
• Cable type Black tube shield along with colors CPU and PCIe connecor

Electrical Features
• Operating Temperature 0 - 50 °C (derating from 100 -por-ciento to 80 -por-ciento from 40 °C to 50 °C)
• MTBF @ 25 °C excl. fan 100000 hours
• AC Input AC 115-230V by manual switch
• Protection OPP OVP UVP OCP OTP SCP

Safety and Environmental
• Safety and EMC CB CCCCE
• Environmental Compliance RoHS WEEE ErP Lot 6
