• Model GP-UD1600PM PG5
• Type Intel Form Factor ATX 12V v3.1
• PFC Active PFC (>0.9 typical)
• Input Voltage 100-240 Vac (full range)
• Input Current15-7.5A
• Input Frequency 60-50 Hz
• Output Capacity 1600W
• Dimension 150 x 190 x 86mm

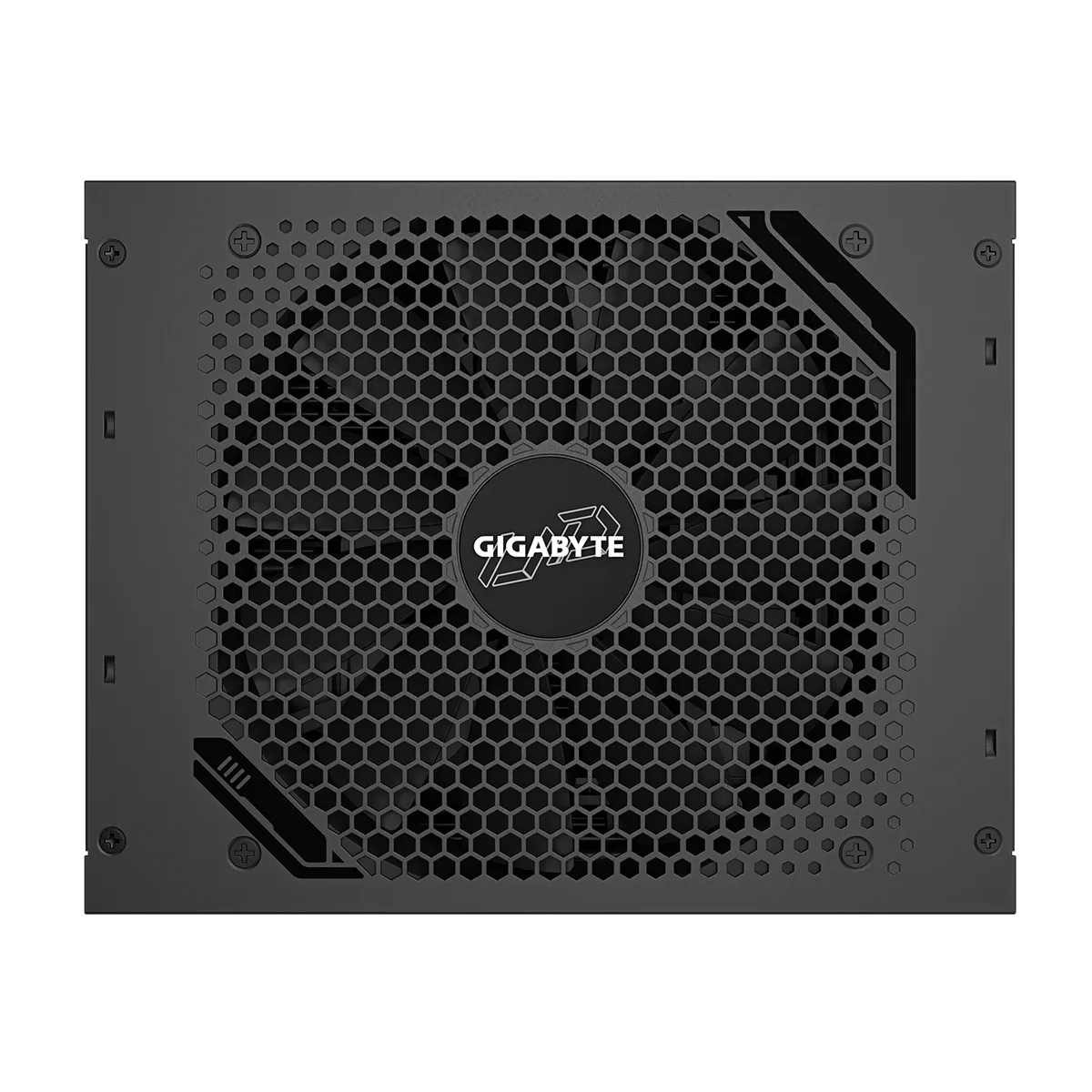

• Fan Type 140mm Double Ball Bearing fan
• 80 PLUS Platinum
• Efficiency 92-por-ciento at typical load
• MTBF >100000 hours
• Protection OVP-OPP-SCP-UVP-OCP-OTP
• Power Good Signal 100-150ms
• Hold Up Time >16ms
• Cable Type Flat All black

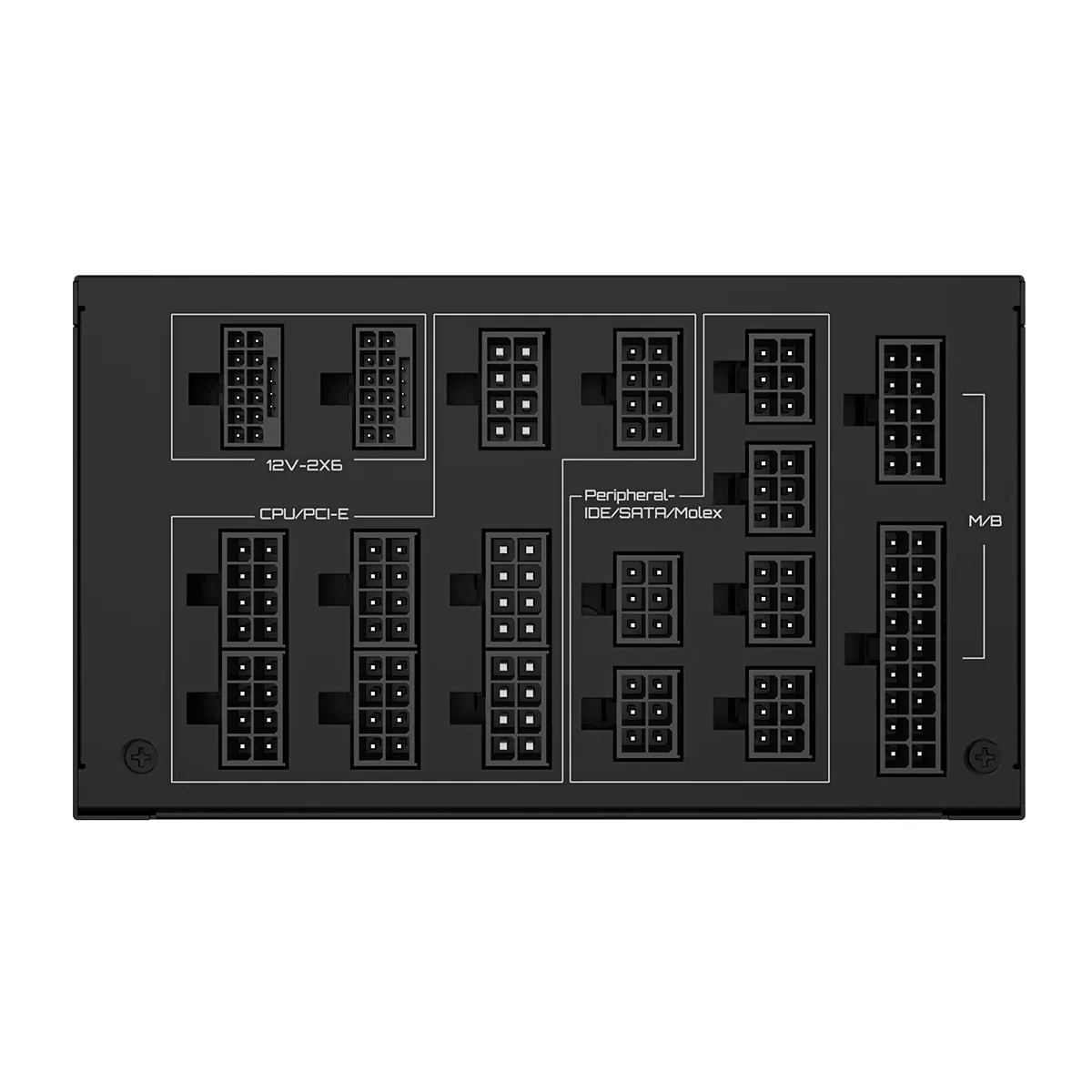

Connectors
• ATX-MB 20+4 Pin x 1 : 610mm*1
• CPU-EPS 4+4 Pin x 2 : 650mm*2
• PCI-E 16 Pin x 2 : 700mm*2
• PCI-E 16 Pin to PCI-E 8 pin x 2 : 700mm*2
• PCI-E 6+2 Pin x 8 : 650mm+150mm*4
• SATA x 16 : 650mm+150mm+150mm+150mm*4
• 4 Pin Peripheral x 6 + 4 Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
