General
• Watts 1200W
• Factor de forma ATX
• Modelo TTP-1200AH3FCG
• Max. Output Capacity 1200W
• Peak Output Capacity 1440W
• Color Negro
• Dimension 150mm(An) x 86mm(Al) x 160mm(Pr)
• Peso 1.97kg
• PFC (Power Factor Correction) PFC Activo
• Power Good Signal 100-500 msec
• Hold Up Time > 16msec al 100-por-ciento de plena carga
• Input Current 15A
• Input Frequency Range 50Hz - 60Hz
• Input Voltage 100V – 240V~
• Operating Temperature De 0°C a + 50°C
• Operating Humidity 20-por-ciento a 90-por-ciento sin condensacion
• Storage Temperature De -20°C a + 70°C
• Storage Humidity De 5-por-ciento a 95-por-ciento sin condensacion
• SISTEMA DE REFRIGERACION Ventilador de rodamiento hidraulico de 14 cm
• Efficiency Cumple con 80 PLUS®Gold en la entrada de 115Vac.
• MTBF 120000 hrs minimo
• Safety Approval CE-cTUVus-TÜV-FCC-BSMI-EAC
• PCI-E Connector 6
• Protection OCP OVP OPP SCP OTP

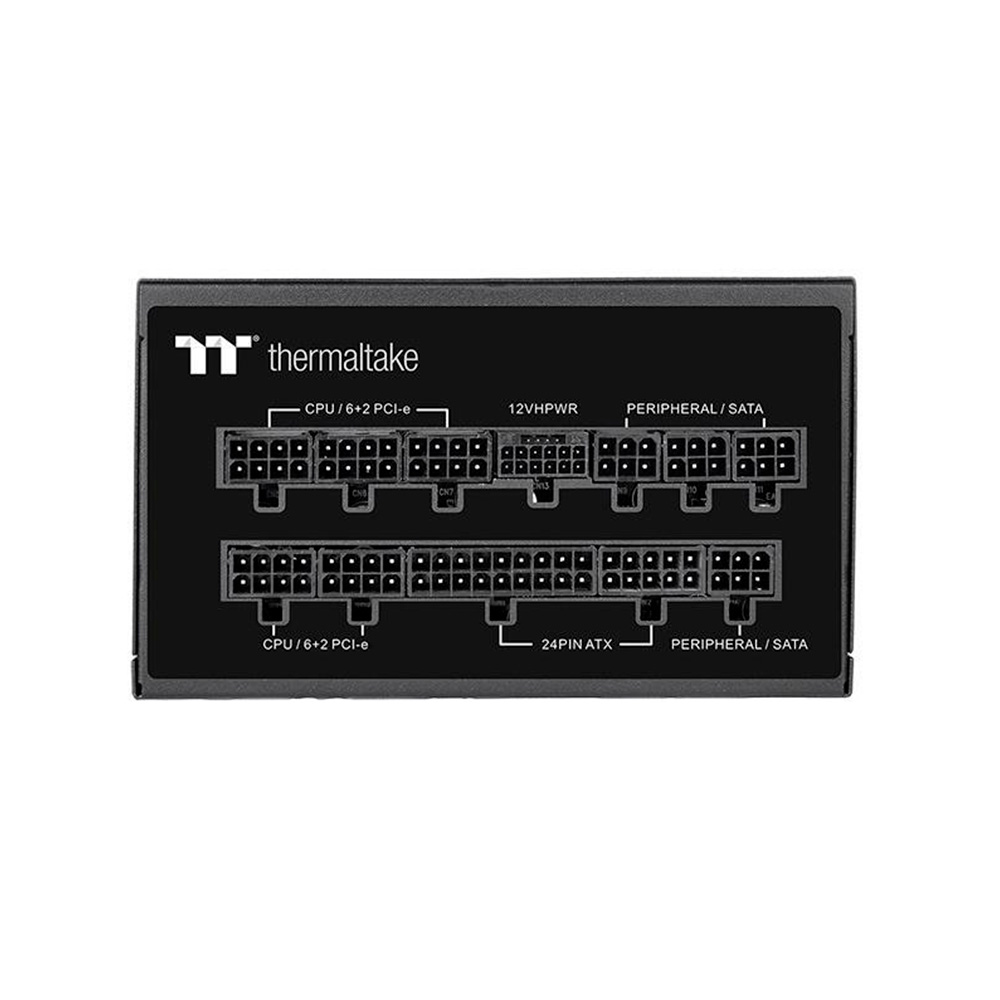

Connectors
• 1 x Main Power Connector (24pin)
• 2 x ATX 12V - EPS 12V (8pin-4+4pin)
• 1 x PCIe 12VHPWR 600W (12+4pin)
• 5 x PCI-E (6+2pin)
• 12 x SATA (5pin)
• 4 x Peripheral (4pin)
• 1 x Floppy
