• Model: GP-UD1000GM
• Type: Intel Form Factor ATX 12V
• PFC Active: PFC (>0.9 typical)
• Input Voltage: 100-240 Vac (full range)
• Input Current: 15-6.5A
• Input Frequency: 60-50 Hz
• Output Capacity: 1000W
• Dimension: 150 x 140 x 86 mm
• Fan Type: 120mm Hydraulic Bearing(HYB)fan
• 80 PLUS: Gold
• Efficiency: 90-por-ciento at typical load
• MTBF: >100000 hours
• Protection: OVP-OPP-SCP-UVP-OCP-OTP
• Power Good Signal: 100-150ms
• Hold Up Time: >16ms
• Cable Type: Flat All black

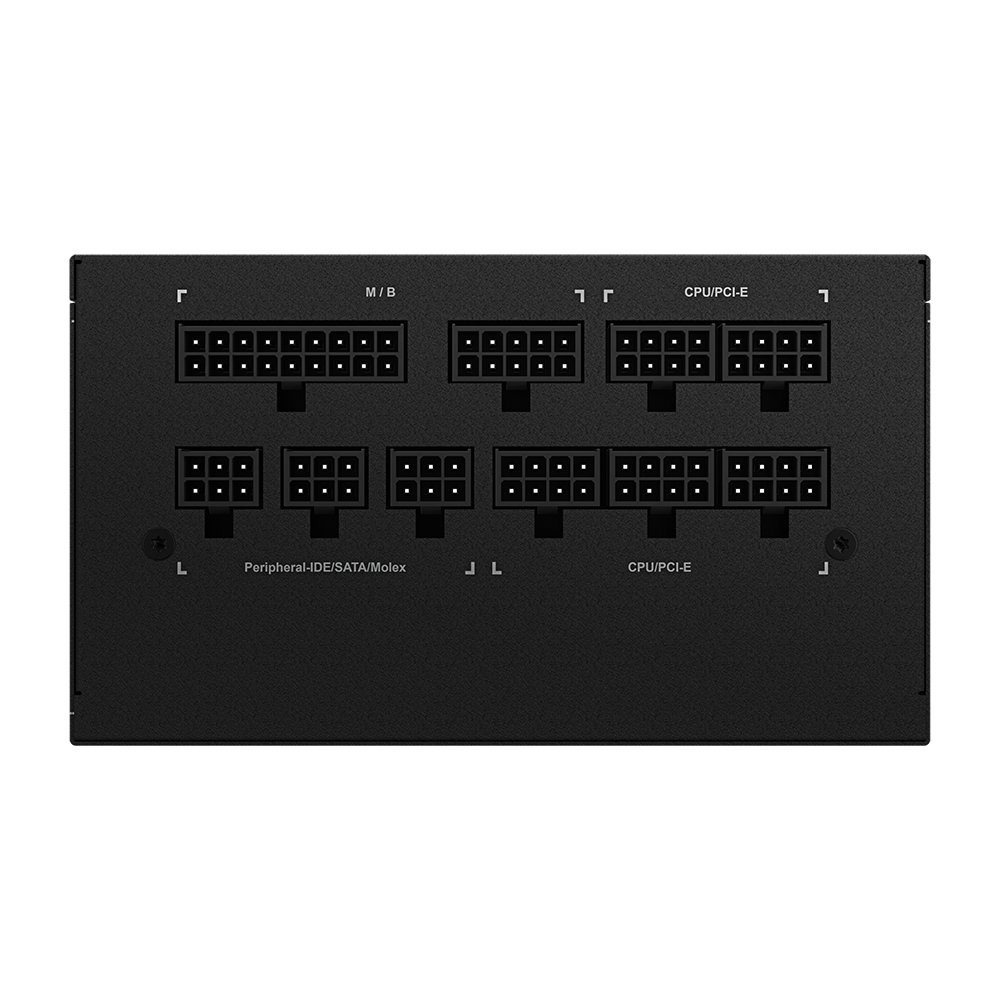

Connectors
• ATX-MB 20+4 Pin x 1 : 610mm *1
• CPU-EPS 4+4 Pin x 2 : 600mm *2
• PCI-e 6+2 Pin x 6 : 600mm +1 50mm *3
• SATA x 8 : 600mm + 150mm + 150mm + 150mm *2
• 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm + 120mm + 120mm + 150mm *1
