P-N PS-TPD-1000FNFAGE-4
WATTS 1000W
MODELO TPD-1000AH3FCG
MAX. OUTPUT CAPACITY 1000W
COLOR Black
DIMENSION ( W - H - D ) 150mm(W) x 86mm(H) x 160mm(D)
PESO 1.72 KG
PFC (POWER FACTOR CORRECTION) Active PFC
POWER GOOD SIGNAL 100-150 msec
HOLD UP TIME > 17msec at 100-por-ciento of full load
INPUT CURRENT 13.0A - 6.5A
INPUT FREQUENCY RANGE 50-60Hz
INPUT VOLTAGE 100V – 240V~
OPERATING TEMPERATURE 0°C to + 40°C
OPERATING HUMIDITY 20-por-ciento to 90-por-cientonon-condensing
STORAGE TEMPERATURE -20°C to + 70°C
STORAGE HUMIDITY 5-por-ciento to 95-por-ciento non-condensing

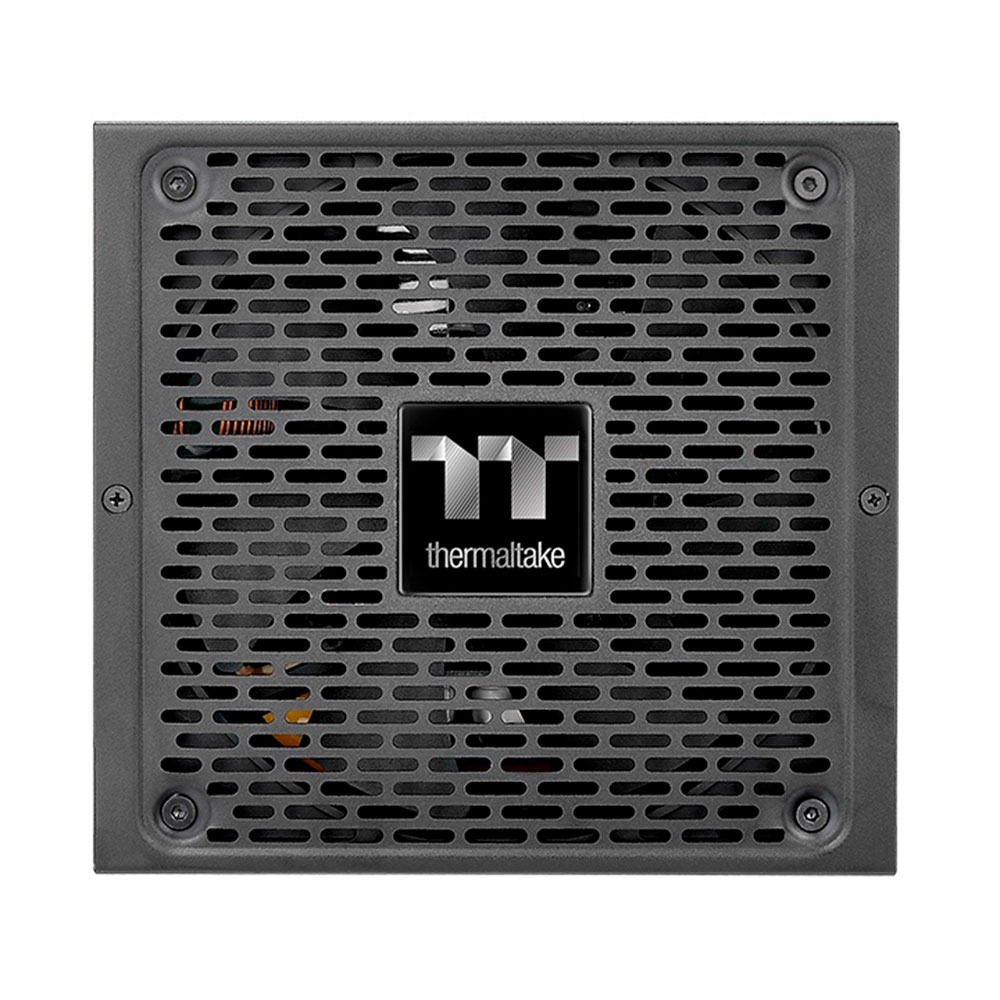

SISTEMA DE REFRIGERACION 13.5cm fluid bearing fan
EFFICIENCY Meet 80 PLUS®Gold at 115Vac input.
MTBF 100000 hrs minimum
SAFETY APPROVAL CE-UKCA-cTUVus-TÜV-FCC-IC-BSMI-EAC-CB-CCC

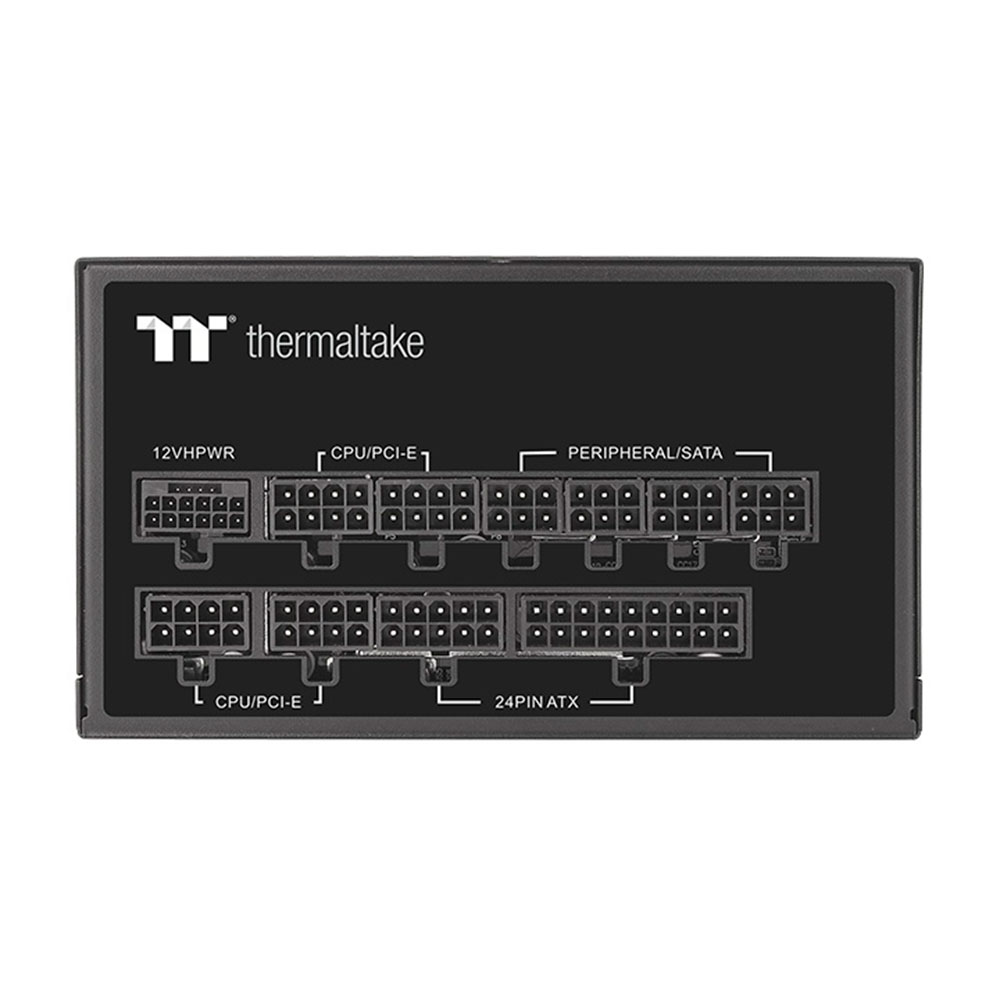

PCI-E CONNECTOR
PCIe 6+2pin x 4
PCIe 12+4pin x 1
PROTECTION
OCP OVP UVP OPP SCP OTP
