Model GP-UD850GM
Type Intel Form Factor ATX 12V v2.31
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 12-6A
Input Frequency 60-50 Hz
Output Capacity 850W
Dimension 150 x 140 x 86 mm
Fan Type 120mm Hydraulic Bearing(HYB)fan
80 PLUS Gold
Efficiency 90-por-ciento at typical load
MTBF >100000 hours
Protection OVP-OPP-SCP-UVP-OCP-OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat All black

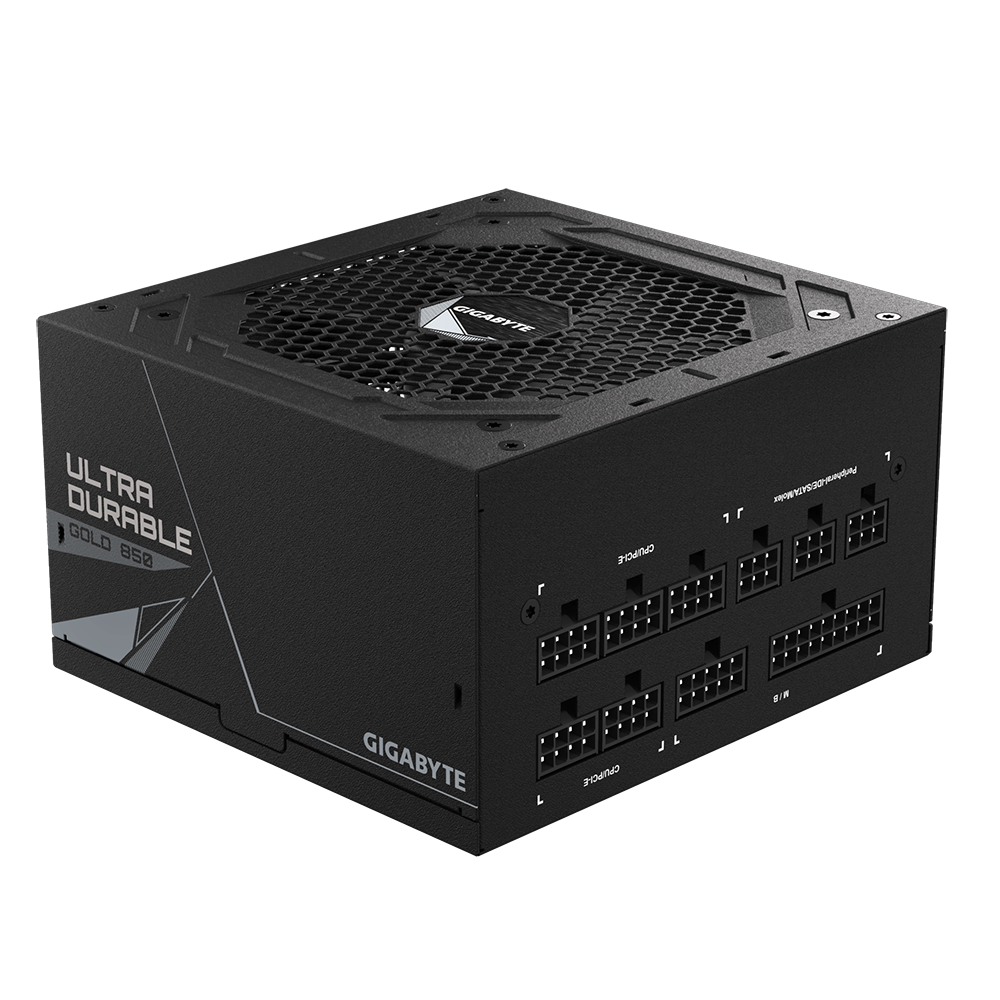

Connectors
ATX-MB 20+4 Pin x 1 : 610mm*1
CPU-EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
