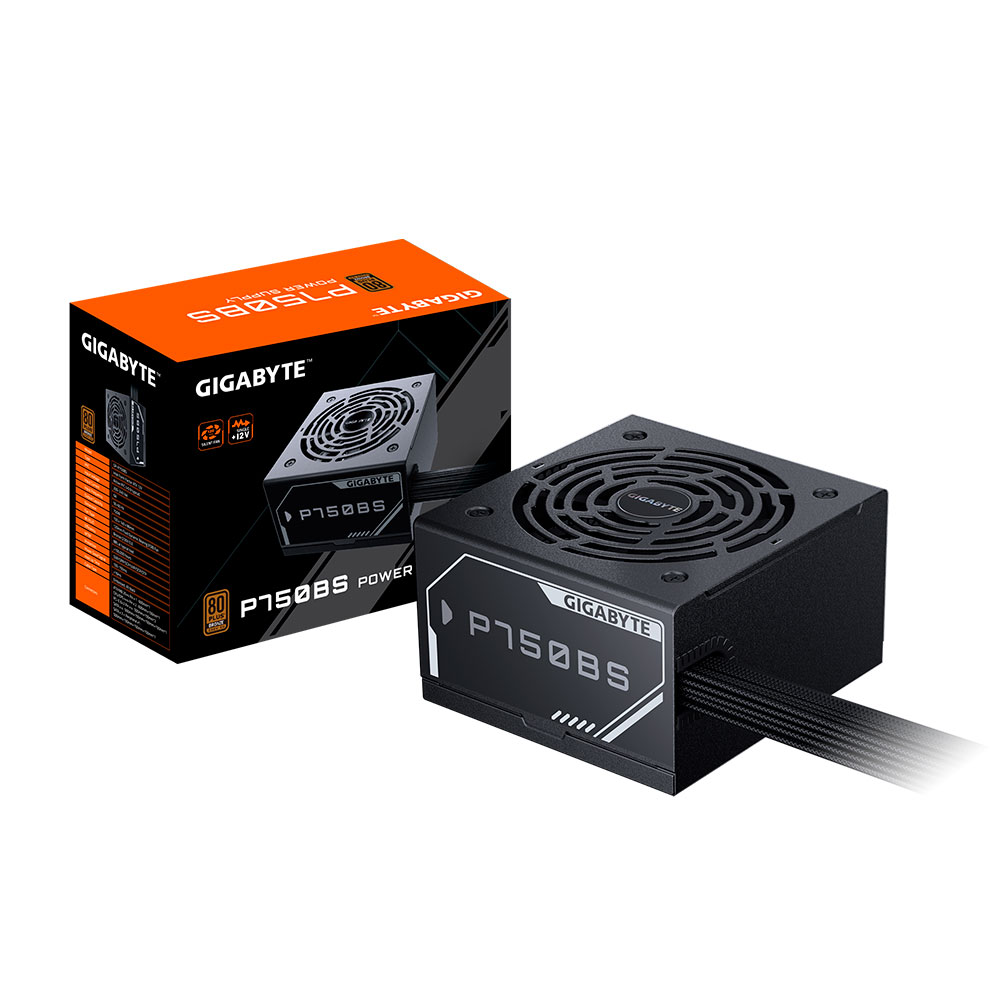

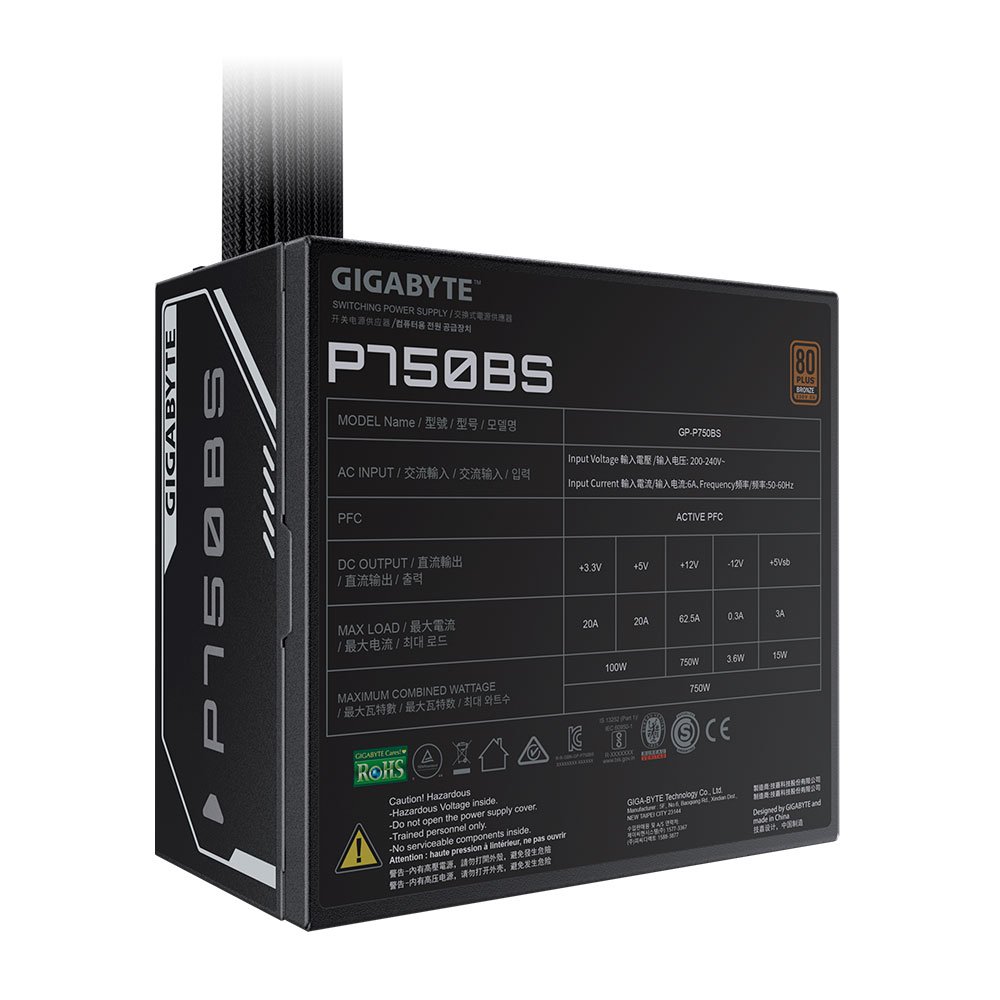

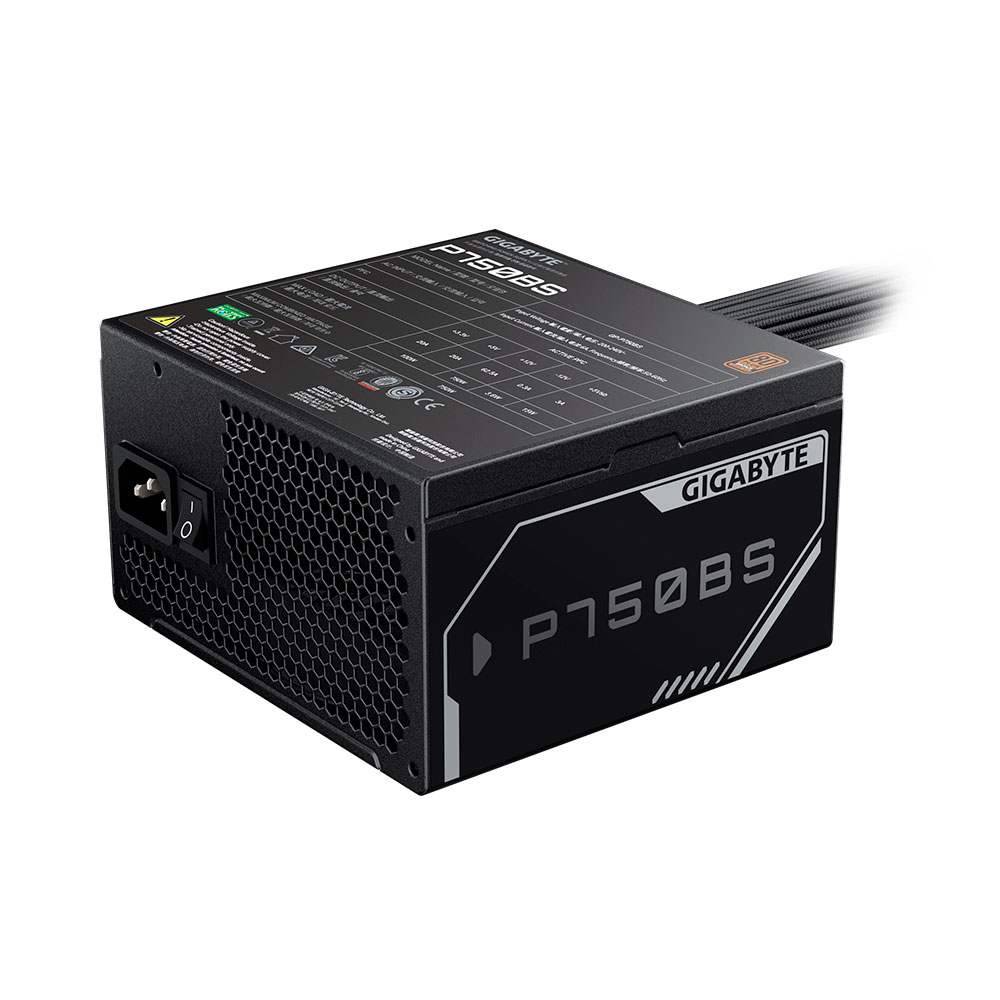

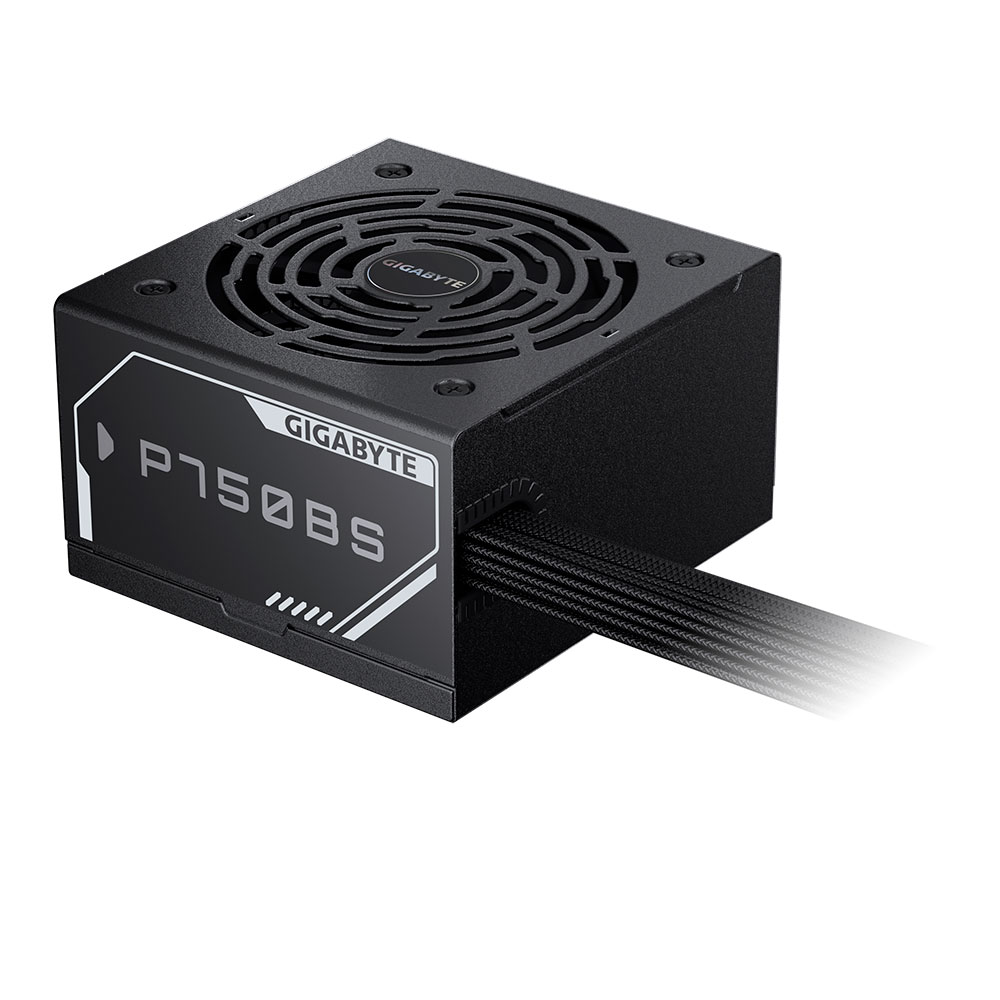

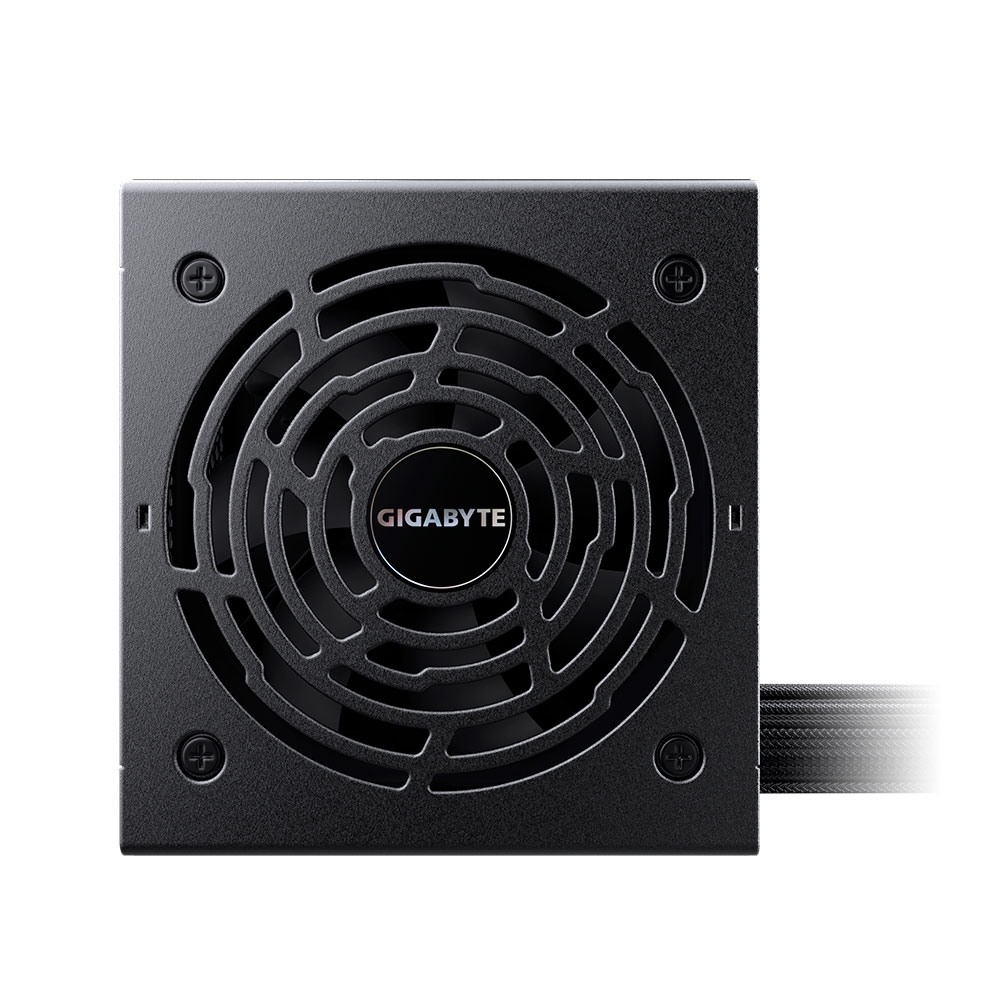

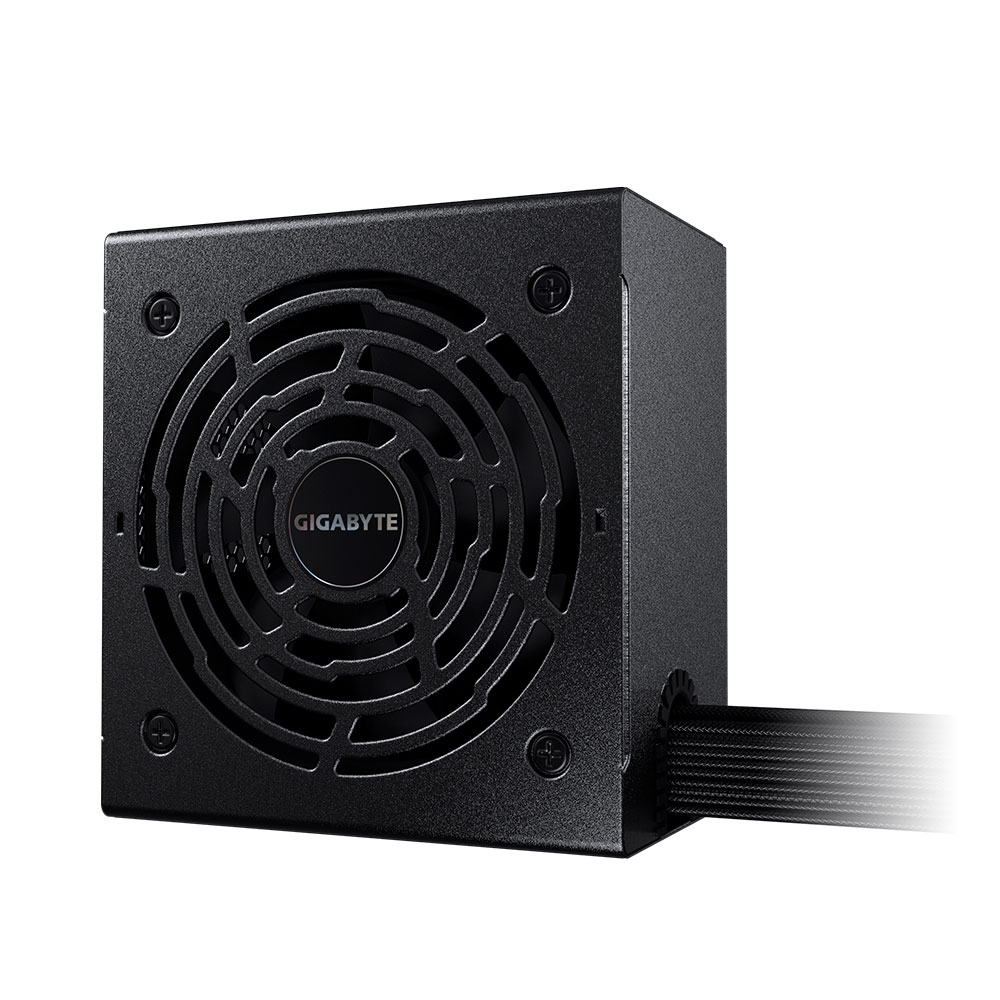

• Model GP-P750BS
• Type Intel Form Factor ATX 12V
• PFC Active PFC (>0.9 typical)
• Input Voltage 200-240 Vac
• Input Current 6 A
• Input Frequency 60-50 Hz
• Output Capacity 750W
• Dimension 150 x 140 x 86 mm
• Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan
• 80 PLUS Bronze (230V EU)
• Efficiency 88-por-ciento at typical load
• MTBF >100000 hours
• Protection OVP-OPP-SCP-UVP-OCP-OTP
• Power Good Signal 100-150ms
• Hold Up Time >16ms
• Cable Type Embossed All black
Connectors
• ATX-MB 20+4 Pin x 1 : 600mm*1
• CPU-EPS 4+4 Pin x 2 : 600mm+150mm*1
• PCI-E 6+2 Pin x 4 : 500mm+150mm*2
• SATA x 4 : 500mm+150mm+150mm+150mm*1
• SATA x 3 + Peripheral x1 : 500mm+150mm+150mm+150mm*1
