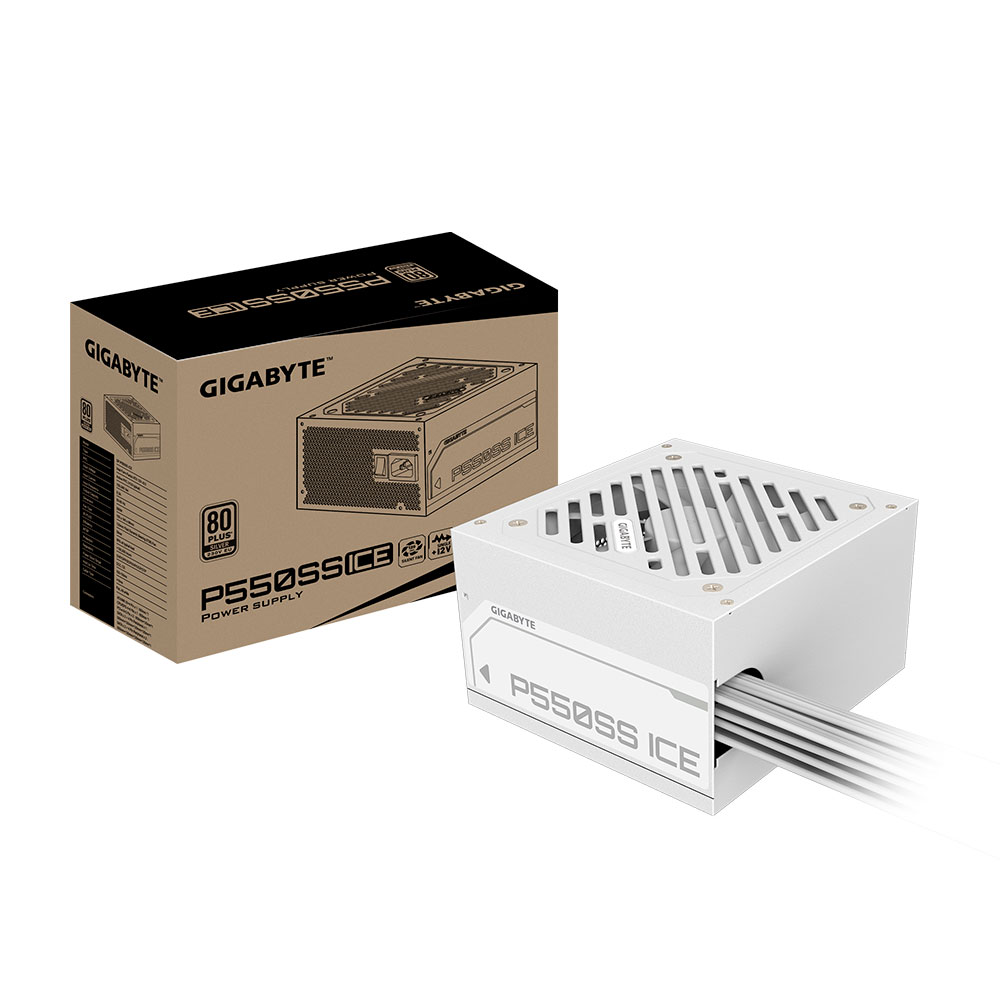

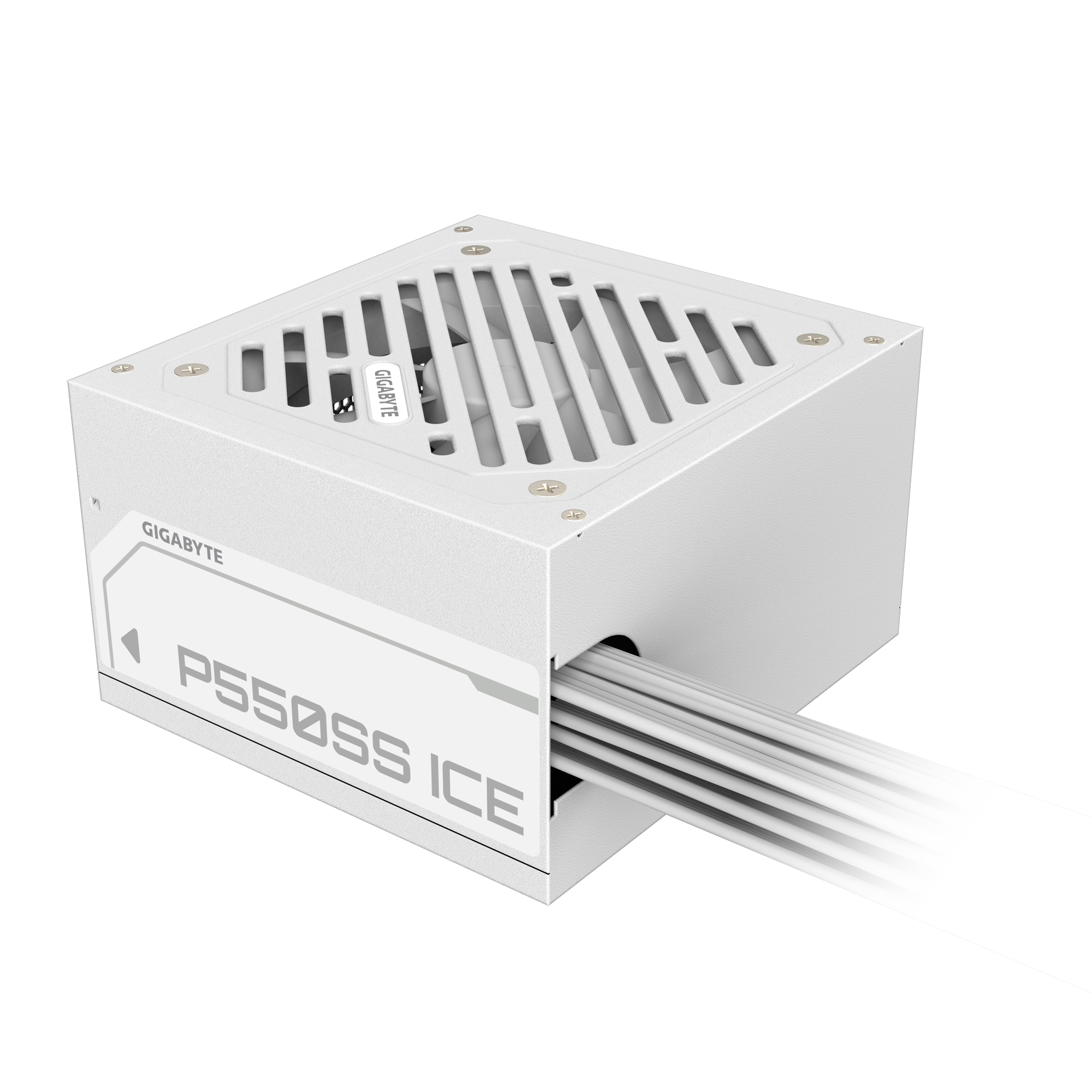

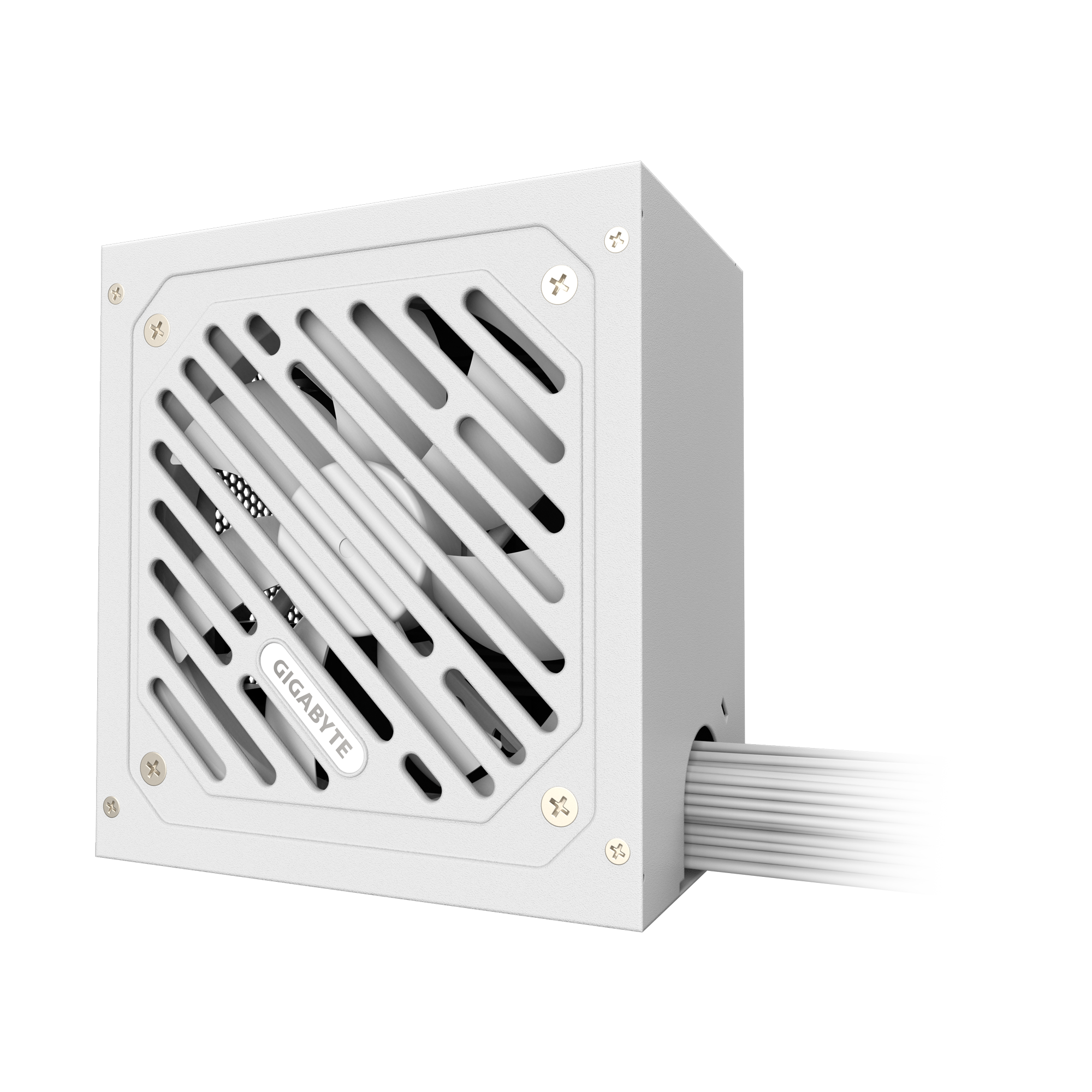

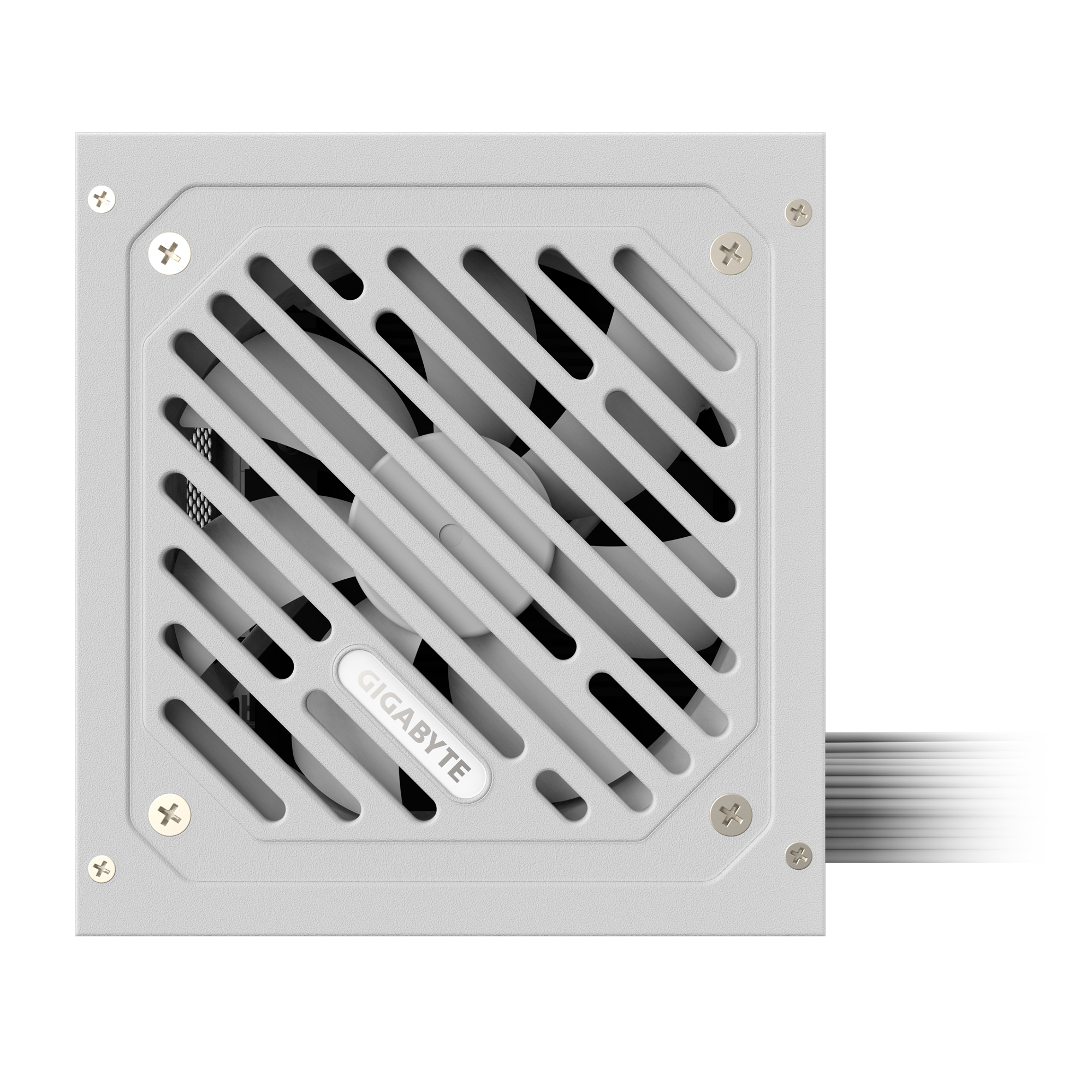

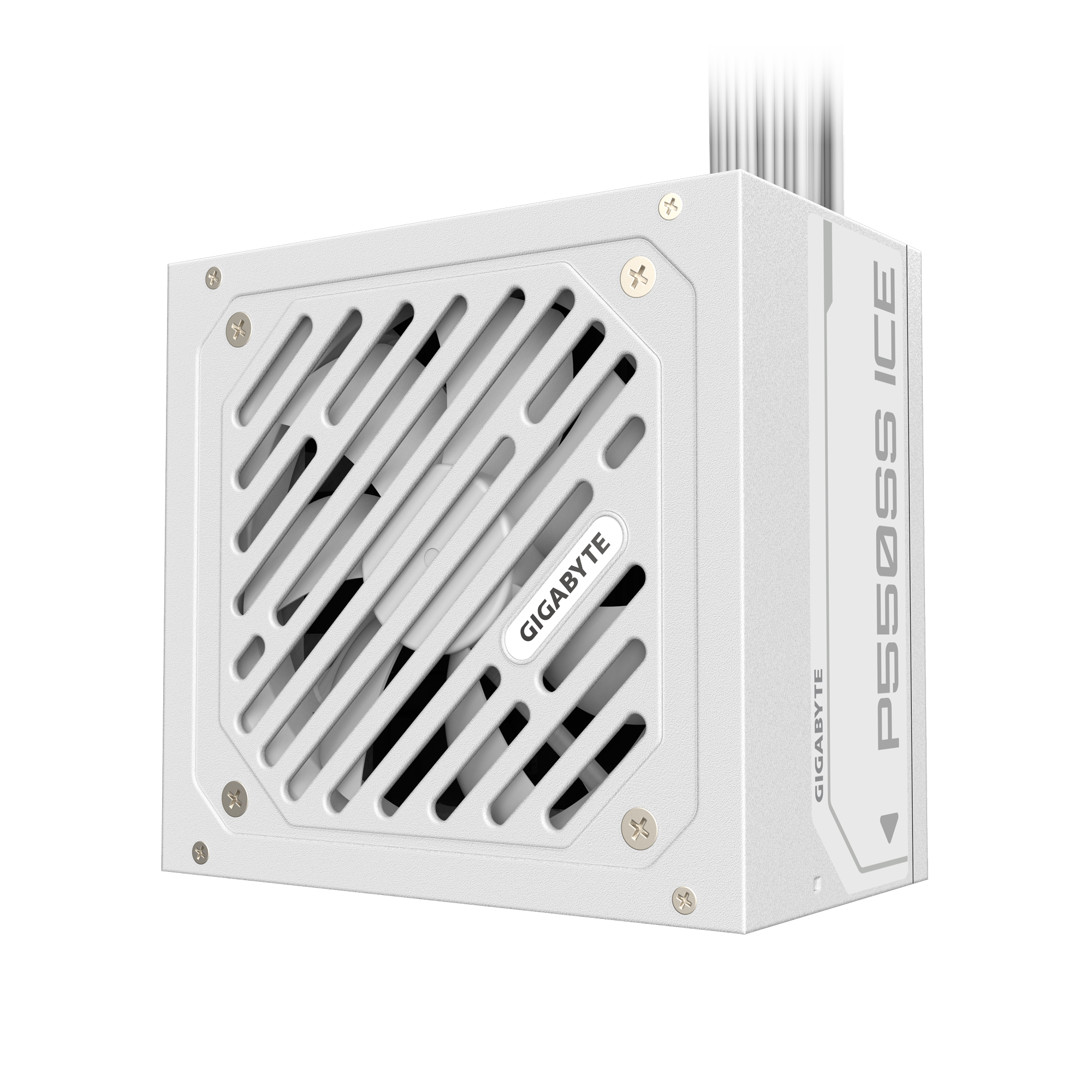

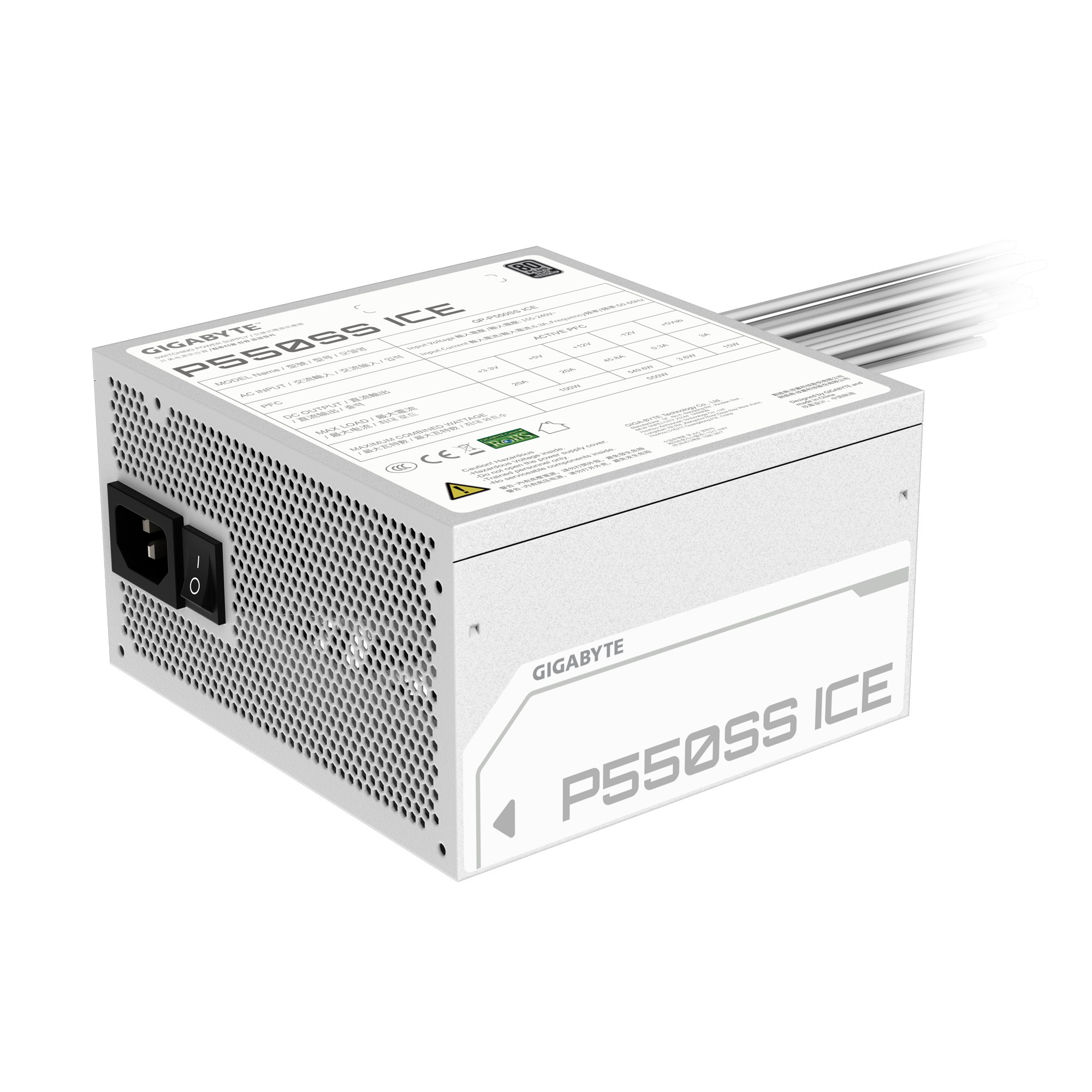

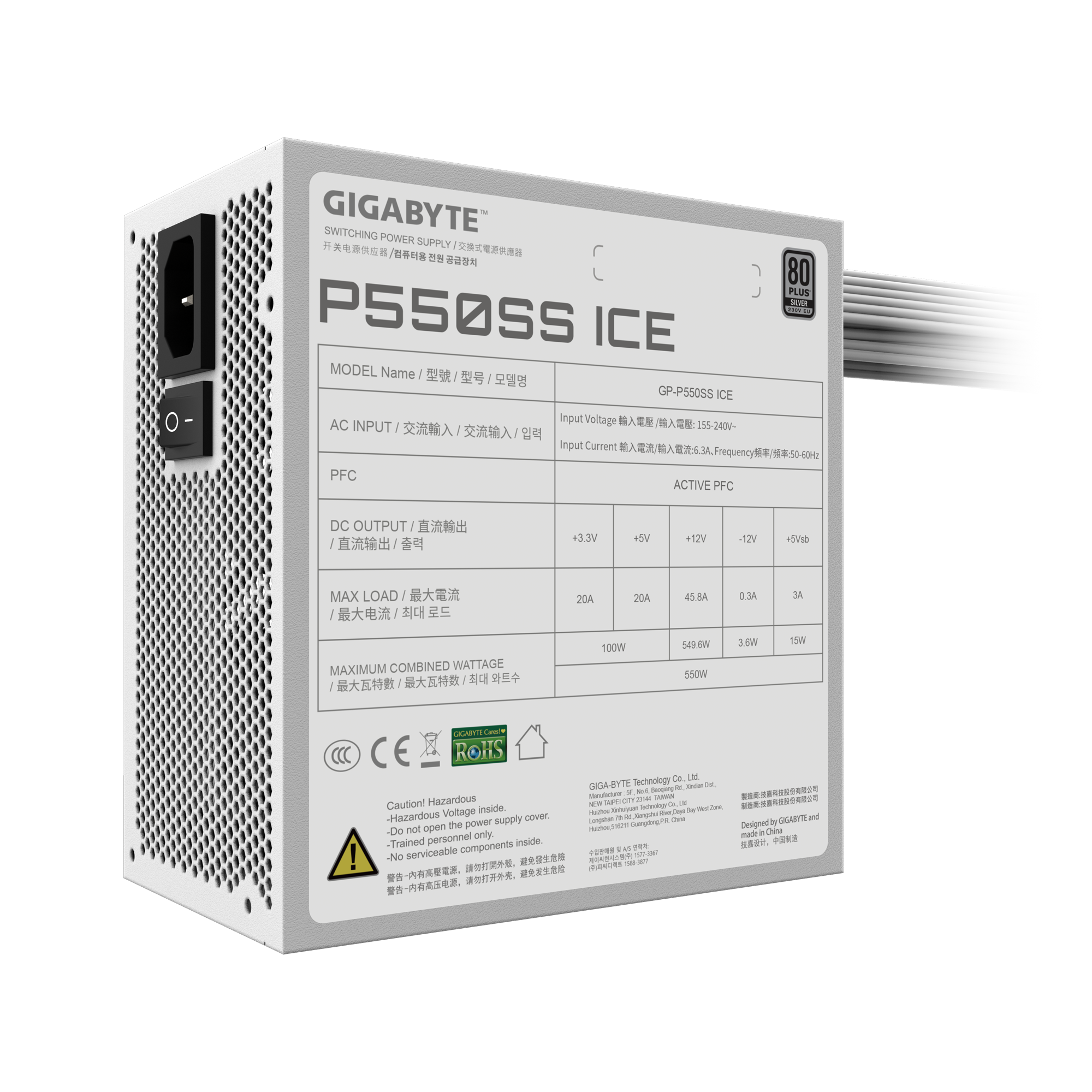

• Model GP-P550SS
• Type Intel Form Factor ATX 12V v3.0
• PFC Active PFC (>0.9 typical)
• Input Voltage 155-240 Vac
• Input Current 6.3A
• Input Frequency 60-50 Hz
• Output Capacity 550W
• Dimensión 150 x 140 x 86 mm
• Fan Type 120mm Fluid Dynamic Bearing (FDB) fan
• 80 PLUS Silver
• Efficiency 90% at typical load (230V EU)
• MTBF >100,000 hours
• Protection OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal 100-150ms
• Hold Up Time >16ms
• Cable Type Flat All Black
Connectors
• ATX/MB 20+4 Pin x 1 : 600mm*1
• CPU/EPS 4+4 Pin x 1 : 650mm+120mm*1
• PCI-e 6+2 Pin x 2 : 600mm*2
• SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1
• SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
