Conectores:
• 1 x 24PIN
• 12V8pin(4+4)
• 4 x SATA
• 3 x 4 PIN
• 1 x PCI-6 + 2PIN
Technical Specifications
• 80PLUS®: APFC 80+ Plus Compliant
• Efficiency Level: 80+ Bronze
• Noise Level: Zero (ECO-ON)<32dBA (at 100-por-ciento load)
• Form Factor: Intel ATX 12 V 2.31
• Dimensions: 140 mm (W) x 150 mm (L) x 86 mm (H)

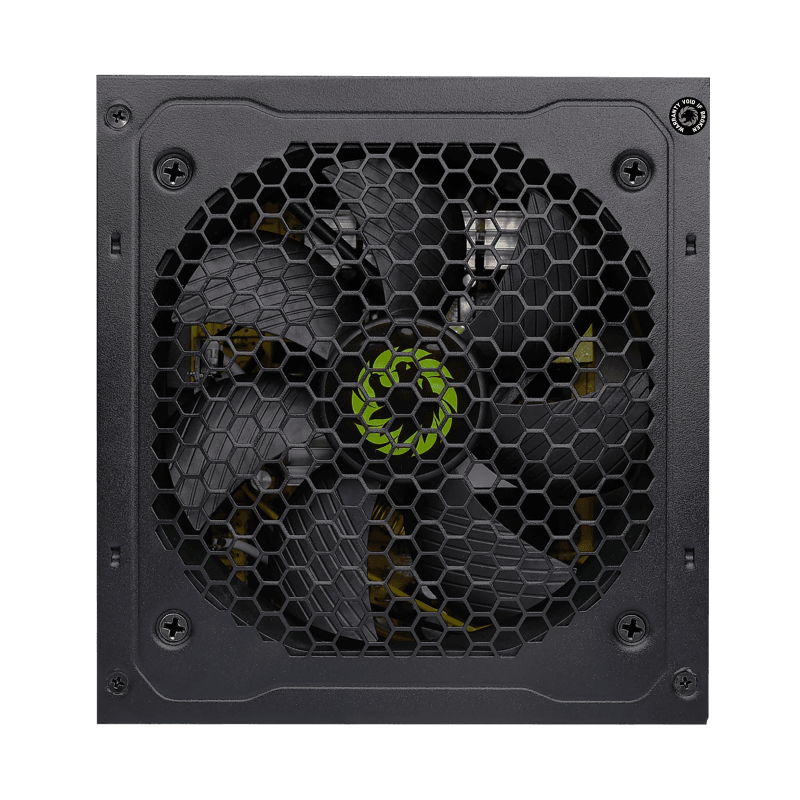

Fan Information
• Fan Size: 120 mm
• Fan Control: ECO-ON-OFF
• Fan Bearing: Fluid Dynamic Bearing
• Life Expectancy: 50000 hours at 40 °C 15 -por-ciento - 65 -por-ciento RH
Cable Information
• Modularity: Wired Cabling
• Cable type: Black tube shield along with colors CPU and PCIe connecor
Electrical Features
• Operating Temperature: 0 - 50 °C (derating from 100 -por-ciento to 80 -por-ciento from 40 °C to 50 °C)
• MTBF @ 25 °C excl. fan: 100000 hours
• AC Input: Full Range AC input (100-240Vac)
• Protection: OPP OVP UVP OCP OTP SCP
Safety and Environmental
• Safety and EMC: CB CCCCE
• Environmental Compliance: RoHS WEEE ErP Lot 6
