• Model GP-AE1000PM PG5
• Type Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
• PFC Active PFC (>0.9 typical)
• Input Voltage 100-240 Vac (full range)
• Input Current 15-6.5A
• Input Frequency 60-50 Hz
• Output Capacity 1000W
• Dimensions 150 x 140 x 86mm

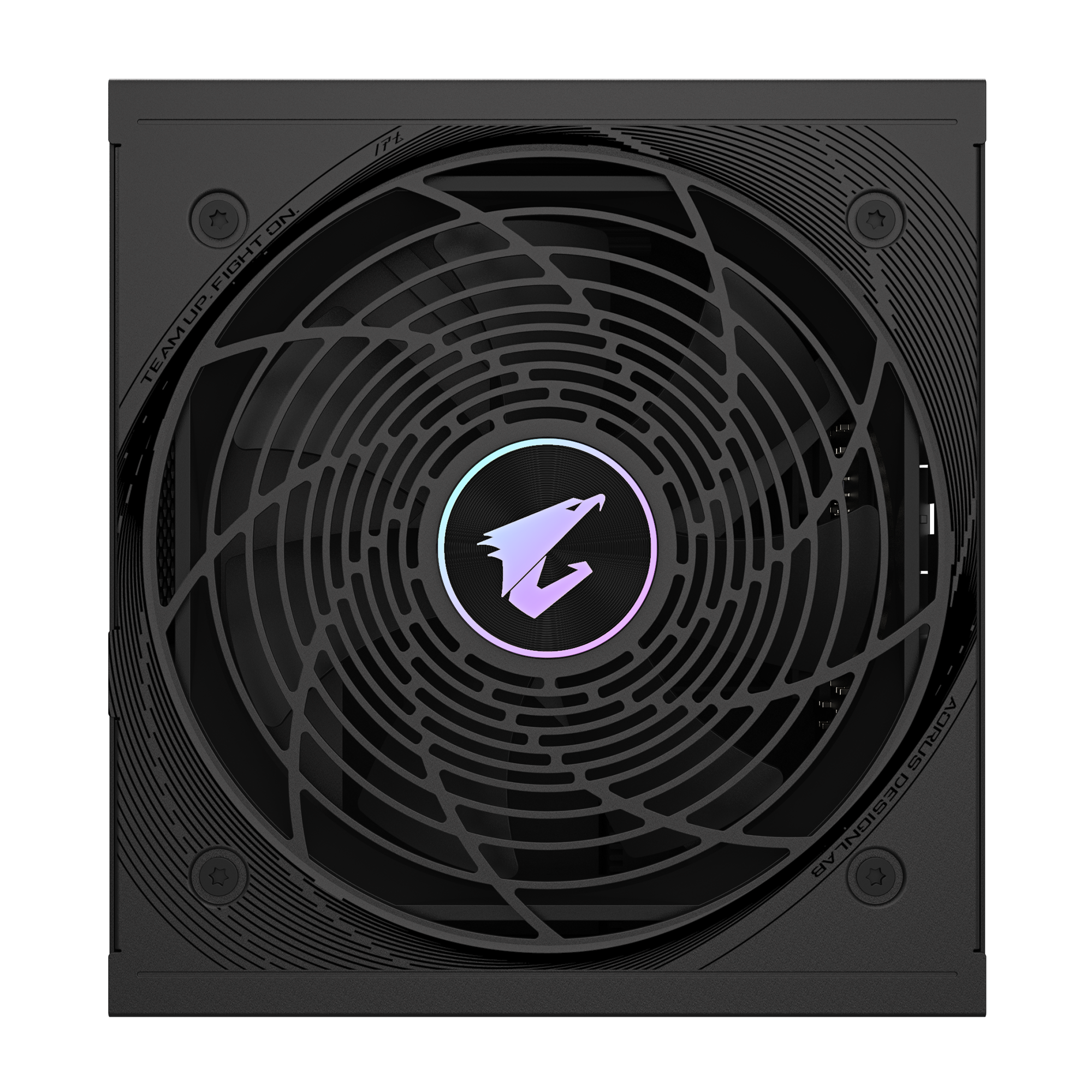

• Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan
• 80 PLUS Platinum
• Efficiency 92-por-ciento at typical load
• MTBF >100 - 000 hours
• Protections OVP-OPP-SCP-UVP-OCP-OTP
• Power Good Signal 100-150ms
• Hold Up Time >16ms
• Cable Type Flat

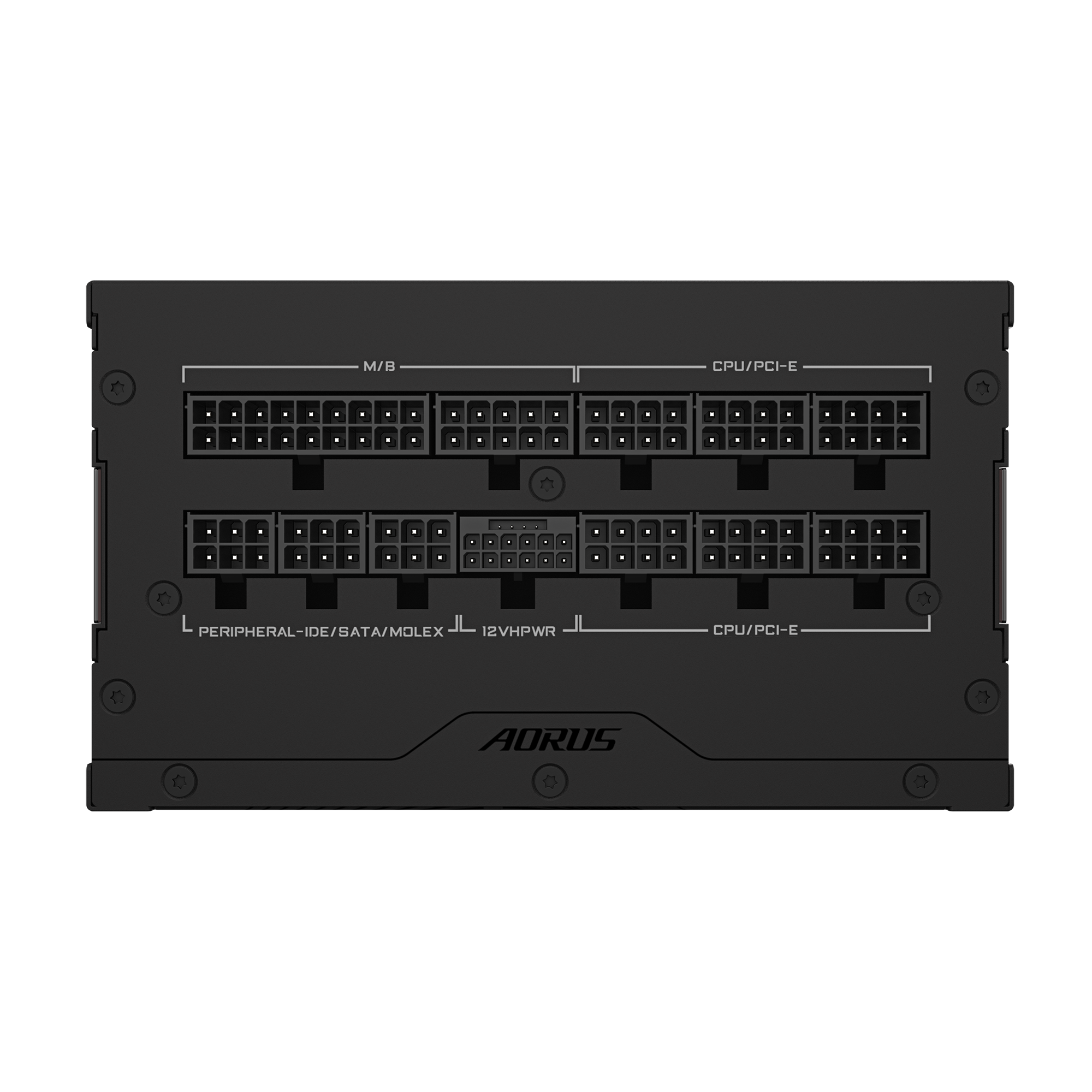

Connectors
• ATX-MB 20+4 Pin x 1 : 650mm*1
• CPU-EPS 4+4 Pin x 2 : 700mm*2
• PCI-e 16 Pin x 1: 700mm*1
• PCI-e 6+2 Pin x 6 : 650mm+150mm*2 - 750mm*2
• SATA x 8 : 600mm+150mm+150mm+150mm*2
• 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
